low cost juice filling machine filling more buying choices for trader

Company Advantages
1. The design of EcoPura juice filling machine price is the integrated knowledge of physics and electrochemistry. It is created using the knowledge of condensed matter physics, plasma physics, and activity coefficient of the electrolyte solution, ion strength, etc. The product is equipped with a high-efficiency operation system
2. The product is distinguished by good stability and reliability and has a long service life. Equipped with a safety system, the product can detect the faults
3. This product is equipped with protective qualities thanks to the coatings. While the coating is in liquid form, chemical compounds are added to provide pigment, flame retardance, UV, water and mildew resistance. The product is carefully designed with all NSF approved components

Product Detail

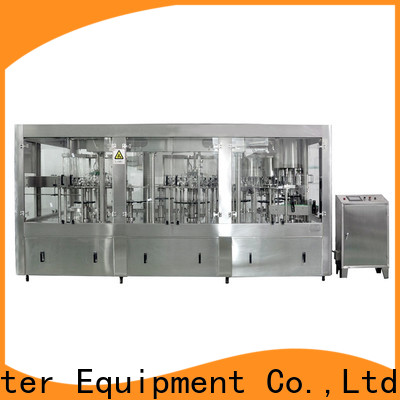

ECOPURA 3-in-1 PET 0.3L-1.5L RHSG-series Hot-fill monobloc equipped with electronic filler nozzles designated for filling hot beverages such as Juice ,tea,pulp beverages or those liquid mixed particles

EcoPura filling juice filling machine more buying choices for trader-1

Product Specification

Model	Bottle Spec	Capacity Cal@500ML	Power	PLC & HMI
DHSG16-16-12-6	0.33L-1.5L Height:150-330mm Dia: 50-115mm	3000-3500bph	1.8kw	SIEMENS
DHSG24-24-16-6		4000-5000bph	2.2kw
DHSG24-24-18-8		5000-6000bph	2.2kw
DHSG24-24-8		8000-9000bph	3.0kw
DHSG32-32-32-12		10000-12000bph	5.5kw
DHSG38-38-38-14		12000-15000bph	7.5kw
EcoPura’s Filling machines are include but not-limited to above list,more info pls contact us.

EcoPura filling juice filling machine more buying choices for trader-2

High quality & Strict Hygiene

Production of top-quality beverages requires conditions of strict hygiene, All parts that comes into contact with the beverage are manufactured in Stainless steel 304 or 316
Contactless filling
SIEMENS PLC & Touch Screen control with Integrated and separate electro-pneumatic components

Washing Part

The machine applies unique overturning bottle clamp, Made of Stainless Steel 304 or 316 hygienic and durable. Which grips bottle at neck position, avoiding bottle mouth contamination. The high efficiency atomizing spray nozzle installed on bottle clamp is capable of cleaning any part of bottle inner wall, and saves rinsing water.

EcoPura filling juice filling machine more buying choices for trader-3

EcoPura filling juice filling machine more buying choices for trader-4

Filling Part

Stainless Steel 304 or 316 Filling valves are designed and manufactured featuring high filling accuracy and high filling speed whilst contactless filling ensures high level of hygiene.Neck-handling grippers position the PET container beneath the filling valve. Once the container has been centred, the filling process starts: Thereby, the Filling valve is opened and the product flows into the bottle with infinitely variable speed. Once the required fill volume has been reached, the flow meter provides a signal to the filling valve. The valve is now closed and the filling process completed. Dripping of the filling valve is prevented by a sieve in the product discharge. Microbiological safety by filling in a multi-chamber mode and separate return gas channel Precise determination of fill quantity via inductive flow meter Recirculation channel for heat retention of the product Perfect flow characteristics through two filling speeds Cleaning in a closed system using automatically positioned CIP cups

Capping Part

The capper is most precise part ensuring the machine to run credibility and product quality.The capping head applies the cap. The cap is pressed onto the bottle by means of spring pressure. At the same time it is screwed onto the thread of the bottle neck finish. As soon as the rotation is ended and the required tightening torque is applied to the cap, a hysteresis clutch ends the capping process. All main parts made of stainless steel AISI304 Pick station with adjustable height Torque and spring force of the capping head are adjustable Flushable cap retainer Motorised height adjustment of the capper top part with bottle selection feature

EcoPura filling juice filling machine more buying choices for trader-5

EcoPura filling juice filling machine more buying choices for trader-6

Caps online Sterilization

ECOPURA dedicated in every process details to control the hygiene such as for the caps sterilizing to ensure the maximum hygiene for your all kinds beverages. Caps online sterilizer made of stainless steel 316L with built in spraying device for high pressure Ozonated pure water sterilizing

Company Features
1. Specializing in manufacturing all types of juice filling machine and related products, Shenzhen EcoPura Water Equipment Co.,Ltd is notable for the strong competence in this field. Shenzhen EcoPura Water Equipment Co.,Ltd owns its own production and processing base mainly for the juice bottling machine project.
2. The EcoPura Technology Center has been focusing on forward-looking technologies at home and abroad, with the aim of applying technology to the production process.
3. EcoPura is experienced in manufacturing juice filling equipment. We consciously to conduct good business actions. We have made corresponding plans to achieve sustainability. We will try to readjust our industrial structure to a clean and environmental-friendly level.

z******s

The design of EcoPura juice filling equipment involves several factors. These factors include part tolerances, size limitations, materials selection, mechanical analysis, function realization, etc. The product has the advantage of scratch resistance

v******n

The workmanship of EcoPura juice bottling machine requires particular skills of machinists. It has to be welded, stamped, and brazed by professional workers, and its parts are put together and fastened by hands during assembly. It can be installed either horizontally or vertically with a variety of optional end-fittings

q******a

EcoPura juice filling machine price is manufactured in line with industrial standards. Its plug, electric cords, and socket are made complying with the local electricity supply system. It won't be affected by any factors like high temperature, pressure, density, viscosity, etc

i******x

EcoPura juice filling equipment is manufactured by taking an array of regulatory compliance into considerations, including electrical safety, electromagnetic compatibility (EMC) and the chemical composition of materials. It is widely used in the chemical industry, metal & mining industry, etc

j******o

EcoPura juice filling machine meets electrical international standards. They generally include IEC 60038 (IEC standard voltages) and IEC60076 (Power transformers). It has got CE approval and other many certifications

g******l

This product has certain air permeability. It provides a tunnel for the skin to exchange air with the outside world. In the meantime, it contributes to the divergence of human heat. This product has certain air permeability. It provides a tunnel for the skin to exchange air with the outside world. In the meantime, it contributes to the divergence of human heat. It is highly recognized by Sinopec, CNNC, and other large-scale energy companies
