standard juice filling equipment filling more buying choices for upgrade industries

Enterprise Strength

EcoPura Water Treatment Equipment & Bottling Machine innovates business setup and sincerely provides one-stop professional services for consumers.

Product Details

We are confident about the exquisite details of bottling line.EcoPura Water Treatment Equipment & Bottling Machine insists on the use of high-quality materials and advanced technology to manufacture bottling line. Besides, we strictly monitor and control the quality and cost in each production process. All this guarantees the product to have high quality and favorable price.

Company Advantages
1. During production, EcoPura juice filling machine price is strictly inspected. Defects have been carefully checked for poor lasting, incomplete bonding, and stitching errors.
2. The materials of EcoPura juice filling machine price are high-quality with stable properties and good durability.
3. It is loved and sought after by many Chinese and western customers.
4. As we adhere to continuous innovation, the product will be given more advantages and will be more widely used in the future.

Product Detail

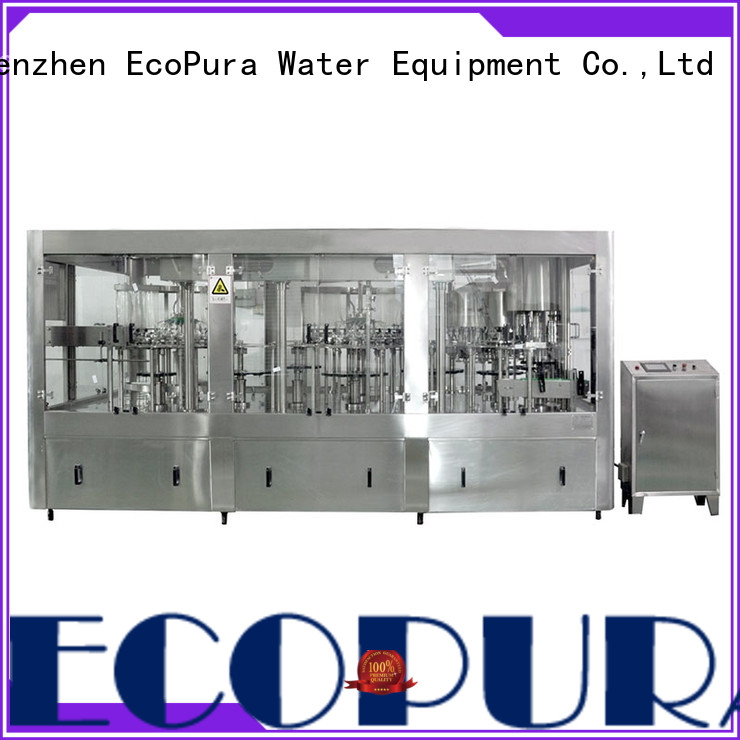

ECOPURA 3-in-1 PET 0.3L-1.5L RHSG-series Hot-fill monobloc equipped with electronic filler nozzles designated for filling hot beverages such as Juice ,tea,pulp beverages or those liquid mixed particles

EcoPura filling juice filling equipment more buying choices for upgrade industries-1

Product Specification

Model	Bottle Spec	Capacity Cal@500ML	Power	PLC & HMI
DHSG16-16-12-6	0.33L-1.5L Height:150-330mm Dia: 50-115mm	3000-3500bph	1.8kw	SIEMENS
DHSG24-24-16-6		4000-5000bph	2.2kw
DHSG24-24-18-8		5000-6000bph	2.2kw
DHSG24-24-8		8000-9000bph	3.0kw
DHSG32-32-32-12		10000-12000bph	5.5kw
DHSG38-38-38-14		12000-15000bph	7.5kw
EcoPura’s Filling machines are include but not-limited to above list,more info pls contact us.

EcoPura filling juice filling equipment more buying choices for upgrade industries-2

High quality & Strict Hygiene

Production of top-quality beverages requires conditions of strict hygiene, All parts that comes into contact with the beverage are manufactured in Stainless steel 304 or 316
Contactless filling
SIEMENS PLC & Touch Screen control with Integrated and separate electro-pneumatic components

Washing Part

The machine applies unique overturning bottle clamp, Made of Stainless Steel 304 or 316 hygienic and durable. Which grips bottle at neck position, avoiding bottle mouth contamination. The high efficiency atomizing spray nozzle installed on bottle clamp is capable of cleaning any part of bottle inner wall, and saves rinsing water.

EcoPura filling juice filling equipment more buying choices for upgrade industries-3

EcoPura filling juice filling equipment more buying choices for upgrade industries-4

Filling Part

Stainless Steel 304 or 316 Filling valves are designed and manufactured featuring high filling accuracy and high filling speed whilst contactless filling ensures high level of hygiene.Neck-handling grippers position the PET container beneath the filling valve. Once the container has been centred, the filling process starts: Thereby, the Filling valve is opened and the product flows into the bottle with infinitely variable speed. Once the required fill volume has been reached, the flow meter provides a signal to the filling valve. The valve is now closed and the filling process completed. Dripping of the filling valve is prevented by a sieve in the product discharge. Microbiological safety by filling in a multi-chamber mode and separate return gas channel Precise determination of fill quantity via inductive flow meter Recirculation channel for heat retention of the product Perfect flow characteristics through two filling speeds Cleaning in a closed system using automatically positioned CIP cups

Capping Part

The capper is most precise part ensuring the machine to run credibility and product quality.The capping head applies the cap. The cap is pressed onto the bottle by means of spring pressure. At the same time it is screwed onto the thread of the bottle neck finish. As soon as the rotation is ended and the required tightening torque is applied to the cap, a hysteresis clutch ends the capping process. All main parts made of stainless steel AISI304 Pick station with adjustable height Torque and spring force of the capping head are adjustable Flushable cap retainer Motorised height adjustment of the capper top part with bottle selection feature

EcoPura filling juice filling equipment more buying choices for upgrade industries-5

EcoPura filling juice filling equipment more buying choices for upgrade industries-6

Caps online Sterilization

ECOPURA dedicated in every process details to control the hygiene such as for the caps sterilizing to ensure the maximum hygiene for your all kinds beverages. Caps online sterilizer made of stainless steel 316L with built in spraying device for high pressure Ozonated pure water sterilizing

Company Features
1. Shenzhen EcoPura Water Equipment Co.,Ltd has been established for many years, and has gradually grown into a leader in China's juice filling machine price manufacturing industry.
2. Shenzhen EcoPura Water Equipment Co.,Ltd focuses on the development of R&D objects for juice filling equipment.
3. Shenzhen EcoPura Water Equipment Co.,Ltd sincerely invites your visit to our factory. Inquire! In order to meet the needs of the market, Shenzhen EcoPura Water Equipment Co.,Ltd will constantly develop new products. Inquire! The best quality juice bottling machine comes from constant efforts of EcoPura. Inquire! Shenzhen EcoPura Water Equipment Co.,Ltd responds to customer needs, inspiring new product and service ideas. Inquire!

l******y

Shenzhen EcoPura Water Equipment Co.,Ltd Constantly upgrade and renew production equipment and production lines, and explore technologies and processes to ensure that the overall quality of juice bottling machine produced is more reliable.

x******q

Shenzhen EcoPura Water Equipment Co.,Ltd Standardized production is carried out in strict accordance with national standards, and the products are strictly tested with almost harsh quality control standards and inspection methods to ensure that the produced juice bottling machine are qualified products with reliable quality.

w******w

The company has strong strength and strict management. It not only has a standardized production workshop, but also has established a perfect quality management system. From the selection of raw materials to the delivery of finished products, the quality is strictly controlled in every link to ensure the excellent quality of juice bottling machine.

l******q

The juice bottling machine we produce is fine in workmanship, reasonable in design, excellent in performance and stable in quality, and is a trustworthy high-quality product.

e******q

juice filling machine price The design is scientific and reasonable, the materials are exquisite, the workmanship is fine, durable, and the service life is long. It is a product of high quality and extraordinary quality.

m******u

Many customers are satisfied with the high quality of this product. Made of standardized materials, it has the performance of high- and low-temperature resistance
