automatic carbonated soft drinks filling machine filling factory for sale

Company Advantages
1. The material of carbonated soft drinks filling machine is eco-friendly. The product is hygiene with no bacteria or mold built up
2. The offered product is widely known and accepted by numerous customers in the industry. The product is energy-saving, consuming little energy
3. It is renowned for high safety. During the operation, it will self-detect any malfunction and warns operators any potential dangers. It has a robust design, supported by an aluminum plate
4. The product only produces little noise pollution. It adopts one of the most basic ways to control noise - get rid of as much friction as possible. The product is able to provide a great purifying effect

Product Detail

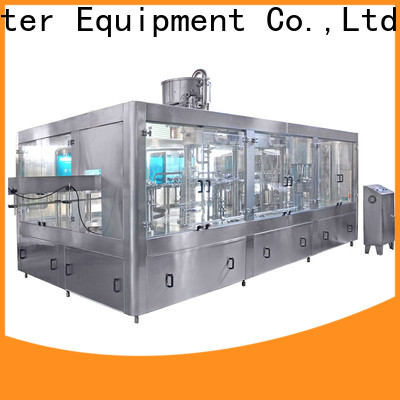

ECOPURA 4-in-1 PET 0.3L-1.5L DHSG-series monobloc equipped with isobaric filler nozzles designated for filling carbonated beverages such as Cola, beer, carbonated water and other liquids etc

EcoPura filling carbonated soft drinks filling machine factory for sale-1

Product Specification

Model	Bottle Spec	Capacity Cal@500ML	Power	PLC & HMI
DHSG16-16-12-6	0.33L-1.5L Height:150-330mm Dia: 50-115mm	3000-3500bph	1.8kw	SIEMENS
DHSG24-24-16-6		4000-5000bph	2.2kw
DHSG24-24-18-8		5000-6000bph	2.2kw
DHSG24-24-24-8		8000-9000bph	3.0kw
DHSG32-32-32-12		10000-12000bph	5.5kw
DHSG38-38-38-14		12000-15000bph	7.5kw
EcoPura’s Filling machines are include but not-limited to above list,more info pls contact us.

EcoPura filling carbonated soft drinks filling machine factory for sale-2

High quality & Strict Hygiene

Production of top-quality beverages requires conditions of strict hygiene, All parts that comes into contact with the beverage are manufactured in Stainless steel 304 or 316 Contactless filling SIEMENS PLC & Touch Screen control with Integrated and separate electro-pneumatic components

Chemical Washing Part

The machine applies unique overturning bottle clamp, Made of Stainless Steel 304 or 316 hygienic and durable. Which grips bottle at neck position, avoiding bottle mouth contamination The high efficiency atomizing spray nozzle installed on bottle clamp is capable of cleaning any part of bottle inner wall, and saves rinsing water.

EcoPura filling carbonated soft drinks filling machine factory for sale-3

EcoPura filling carbonated soft drinks filling machine factory for sale-4

Ozonated water Washing Part

Filling Part

Stainless Steel 304 or 316 Filling valves are designed and manufactured featuring high filling accuracy and high filling speed whilst contactless filling ensures high level of hygiene. The PET container is first pressed on by the PET lifting unit and pressurised afterwards. Once the same pressure is in the ring bowl and the PET container, the filling valve will be opened and the filling process starts. The liquid is gently fed via a swirl insert into the bottle. Two different filling speeds guarantee optimum flow behaviour. A flow meter monitors the fed liquid quantity. Once the exact filling volume has been reached, the flow meter provides a signal and the valve closes electro pneumatically Maximum flexibility − Filling of non-carbonated and carbonated products on one system Maximum filling accuracy − Precise determination of fill quantity via inductive flow meter Gentle product treatment during filling − Low-foam and low-turbulence filling vias wirl insert in the valve Hygiene and stable filling processes − Separate gas channels for pressurization and snifting ECOPURA filling machines in their standard version are suitable for CIP and beverage mixer

EcoPura filling carbonated soft drinks filling machine factory for sale-5

EcoPura filling carbonated soft drinks filling machine factory for sale-6

Capping Part

The capper is most precise part ensuring the machine to run credibility and product quality. The capping head applies the cap. The cap is pressed onto the bottle by means of spring pressure. At the same time it is screwed onto the thread of the bottle neck finish. As soon as the rotation is ended and the required tightening torque is applied to the cap, a hysteresis clutch ends the capping process. All main parts made of stainless steel AISI304 Pick station with adjustable height Torque and spring force of the capping head are adjustable Flushable cap retainer Motorised height adjustment of the capper top part with bottle selection feature

Caps online Sterilization

ECOPURA dedicated in every process details to control the hygiene such as for the caps sterilizing to ensure the maximum hygiene for your all kinds beverages. Caps online sterilizer made of stainless steel 316L with built in spraying device for high pressure Ozonated pure water sterilizing

EcoPura filling carbonated soft drinks filling machine factory for sale-7

Company Features
1. With strong economic strength, EcoPura always offer the most excellent carbonated soft drinks filling machine . Our company has a skilled workforce. The staff are well-trained, able to adapt and knowledgeable in their roles. They ensure our production to maintain high levels of performance.
2. We have earned rich experience in cooperating with internationally famous brands over the years. We have successfully finished multiple kinds of projects that specially designed for them and recognized as a professional.
3. We have established a complete sales network spreading to many countries and regions around the world. We have already got lots of appreciation from customers based on our long-term stable cooperation. Our business is dedicated to generating value for every single client. Get more info!

e******o

The entire production process of EcoPura carbonated soft drinks filling machine is strictly controlled, from the selection of the finest fabrics, the cutting of the pattern to the safety inspection of the accessories.

w******o

In the production, EcoPura carbonated soft drinks filling machine will go through a series of tests. The dyeing fastness, dimensional stability, appearance after washing and yarn quality will be tested.

n******s

The entire manufacturing process of EcoPura soda filling machine price is strictly controlled. It may be divided into several important processes: the provision of working drawings, the selection&machining of raw materials, veneering, staining, and spray polishing.

u******a

The quality of EcoPura soda filling machine price is guaranteed. It has been tested in the laboratory, in terms of air-, water-, and structural- resistance, heat transfer, anti-condensation, sound transmission and operability.

x******c

EcoPura carbonated soft drinks filling machine is professionally tailored. It adopts several pieces of advanced and high-efficient production equipment for prototyping, cutting, dyeing, sewing, and performance testing.

o******z

This product is anti-pill, wrinkle-free, and provide long-lasting color, which is all due to the steps taken during the finishing process.
