hot sale water bottle filling machine filler producer for factory

Company Advantages
1. The design of EcoPura fill line is the application of various disciplines. They include mathematics, kinematics, statics, dynamics, mechanical technology of metals and engineering drawing. The dimension of this product can be customized according to needs
2. It increasingly reflects its broad application areas and market prospects. Its parts are all made of CNC machines, which features high accuracy
3. The product is not susceptible to corrosion. Its surface has been treated with a layer of mechanical paint which has a protective function. Made of stainless steel materials, the product has a smooth surface to resist dust and dirt
4. The product has overload protection. It has a thermal relay which can withstand the impact of short circuit due to thermal inertia. The product is able to provide a great purifying effect

Product Detail

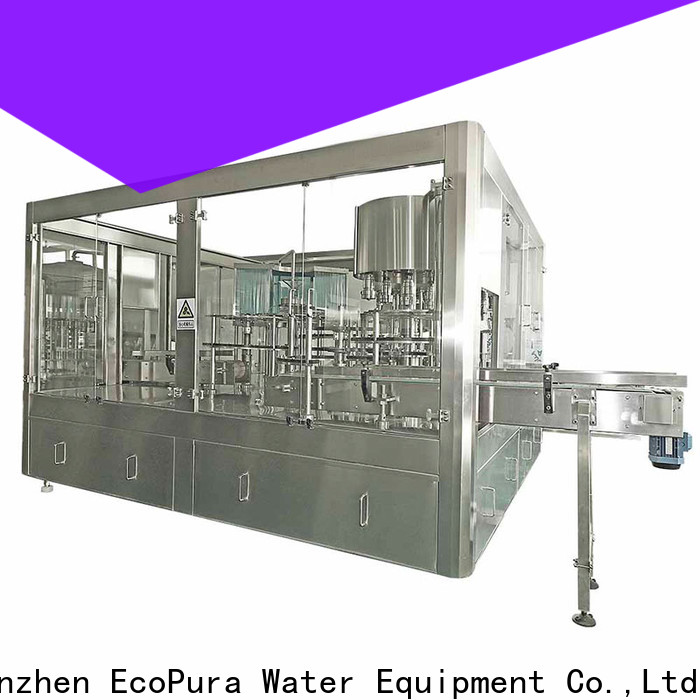

ECOPURA 4-in-1 PET 3L-10L HSG-series monobloc equipped with overflow filler nozzles designated for filling non-carbonated beverages such as pure or mineral, still water and other liquids etc

EcoPura filler water bottle filling machine producer for factory-1

Product Parameter

Model	Bottle Spec	Capacity Cal@5L	Power	PLC & HMI
HSG10-10-5	3L-10L	1200-1500bph	2.2kw	SIEMENS
HSG12-12-5		1500-2000bph	3.0kw
HSG14-14-5		2000-2500bph	4.0kw
HSG16-16-5		2500-3000bph	5.5kw
EcoPura’s Filling machines are include but not-limited to above list,more info pls contact us.

Why 4-in-1 ?
Twin bottle rinsing station include chemical water rinsing and Ozonated water rinsing ensuring the performance with strict hygiene standard
EcoPura’s Filling machines are include but not-limited to above list,more info pls contact us.

EcoPura filler water bottle filling machine producer for factory-2

High quality & Strict Hygiene

Production of top-quality beverages requires conditions of strict hygiene, All parts that comes into contact with the beverage are manufactured in Stainless steel 304 or 316
Contactless filling
SIEMENS PLC & Touch Screen control with Integrated and separate electro-pneumatic components

Chemical Washing Part

The machine applies unique overturning bottle clamp, Made of Stainless Steel 304 or 316hygienic and durable. Which grips bottle at neck position, avoiding bottle mouth contamination
The high efficiency atomizing spray nozzle installed on bottle clamp is capable of cleaning any part of bottle inner wall, and saves rinsing water.

EcoPura filler water bottle filling machine producer for factory-3

EcoPura filler water bottle filling machine producer for factory-4

Ozonated Water Washing Part

The machine applies unique overturning bottle clamp, Made of Stainless Steel 304 or 316 hygienic and durable. Which grips bottle at neck position, avoiding bottle mouth contamination
The high efficiency atomizing spray nozzle installed on bottle clamp is capable of cleaning any part of bottle inner wall, and saves rinsing water.

Filling Part

Stainless Steel 304 or 316 Filling valves are designed and manufactured featuring high filling accuracy and high filling speed whilst contactless filling ensures high level of hygiene.Bottom-holding position the PET container beneath the filling valve. Once the container has been centred, the filling process starts: Thereby, the Filling valve is opened and the product flows into the bottle with infinitely variable speed. Once the required fill volume has been reached, the flow meter provides a signal to the filling valve. The valve is now closed and the filling process completed. Dripping of the filling valve is prevented by a sieve in the product discharge. Microbiological safety -Contact-free filling and optimized machine design High filling accuracy -Use of flow meters and infinitely variable flow speeds High availability -Top efficiency thanks to the combination with ECOPURA cap feed systems ECOPURA standard Machines are suitable for CIP

EcoPura filler water bottle filling machine producer for factory-5

EcoPura filler water bottle filling machine producer for factory-6

Capping Part

The capper is most precise part ensuring the machine to run credibility and product quality.The capping head applies the cap. The cap is pressed onto the bottle by means of spring pressure. At the same time it is screwed onto the thread of the bottle neck finish. As soon as the rotation is ended and the required tightening torque is applied to the cap, a hysteresis clutch ends the capping process. All main parts made of stainless steel AISI304 Pick station with adjustable height Torque and spring force of the capping head are adjustable Flushable cap retainer Motorised height adjustment of the capper top part with bottle selection feature

Caps online Sterilization

ECOPURA dedicated in every process details to control the hygiene such as for the caps sterilizing to ensure the maximum hygiene for your all kinds beverages. Caps online sterilizer made of stainless steel 316L with built in spraying device for high pressure Ozonated pure water sterilizing

EcoPura filler water bottle filling machine producer for factory-7

Company Features
1. Shenzhen EcoPura Water Equipment Co.,Ltd is now a China-based manufacturer specializing in designing, procurement, and fabrication of water bottle filling machine while providing a wide range of technical services.
2. EcoPura has complete quality control system to produce mineral water filling machine.
3. We stick to green manufacturing. We examine various aspects of our operations, with the aim of making our production more environmentally friendly.

e******j

EcoPura mineral water filling machine is under the real-time control of the R&D team. The team will carry out a routine sampling and analysis of the raw materials so as to acquire information necessary for the economic appraisal of ores and concentrates.

g******a

EcoPura fill line is produced under advanced equipment. It will be processed by fastness to washing tester, steamer and washer, as well as vacuum cleaning equipment designed for textile.

u******t

EcoPura fill line is under constant control in terms of health, safety, and environmental protection standards, as evidenced by the CE certificate issued.

q******e

The quality control of EcoPura mineral water filling machine is conducted rigorously. It is tested in terms of its air circulation, surface treatment, as well as the most important part, thermal dissipation performance.

v******q

All EcoPura mineral water filling machine are manufactured in compliance with rubber and plastic industry standards and are tested for quality conformance in the laboratory.

x******m

The product features stable performance. The proportions of the various raw materials are carefully mixed together to achieve consistent properties.
