factory directly supply wine filling machine wine factory for distribution

Product Detail

ECOPURA 3-in-1 Glass 0.3L-1.5L HSG-G series monobloc equipped with overflow filler nozzles designated for filling wine or Sparking wine

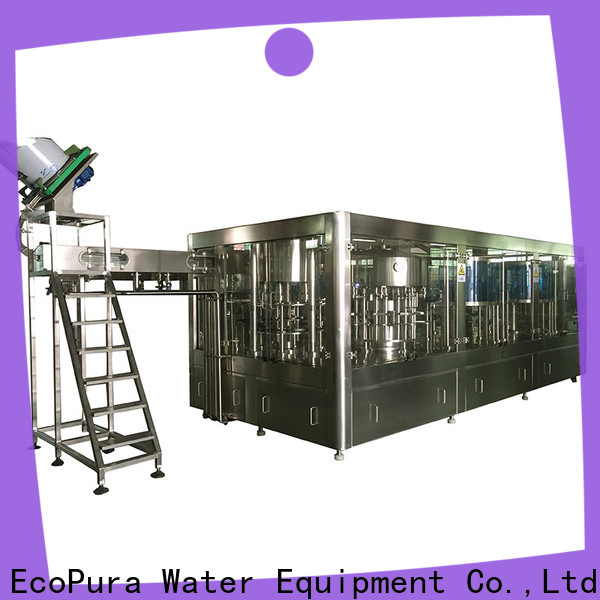

EcoPura factory directly supply wine filling machine factory for distribution-1

Product Specification

Model	Bottle Spec	Capacity Cal@500ML	Power	PLC & HMI
HSG8-8-3G	0.33L-1.5L Height:150-330mm Dia: 50-115mm	5000-3000bph	1.5kw	SIEMENS
HSG16-12-6G		3000-4500bph	1.8kw
HSG24-16-6G		5000-6000bph	2.2kw
HSG24-18-8G		7000-8000bph	2.2kw
HSG24-24-8G		10000-12000bph	3.0kw
HSG32-32-12G		15000-18000bph	5.5kw
HSG38-38-14G		18000-20000bph	7.5kw
EcoPura’s Filling machines are include but not-limited to above list,more info pls contact us.

EcoPura factory directly supply wine filling machine factory for distribution-2

High quality & Strict Hygiene

Production of top-quality beverages requires conditions of strict hygiene, All parts that comes into contact with the beverage are manufactured in Stainless steel 304 or 316
Contactless filling
SIEMENS PLC & Touch Screen control with Integrated and separate electro-pneumatic components

Washing Part

The machine applies unique overturning bottle clamp, Made of Stainless Steel 304 or 316 hygienic and durable. Which grips bottle at neck position, avoiding bottle mouth contamination The high efficiency atomizing spray nozzle installed on bottle clamp is capable of cleaning any part of bottle inner wall, and saves rinsing water.

EcoPura factory directly supply wine filling machine factory for distribution-3

EcoPura factory directly supply wine filling machine factory for distribution-4

Filling Part

Stainless Steel 304 or 316 Filling valves are designed and manufactured featuring high filling accuracy and high filling speed whilst contactless filling ensures high level of hygiene. The lift cylinder presses the bottle on to the filling valve where it is pre-evacuated several times. With non-carbonated beverages, the filling valve opens due to a movement of the control cylinder. With carbonated beverages, the bottle is pressurised and the valve opens as soon as the bottle and the ring bowl have the same pressure. At both of the filling processes, the liquid runs through a spreader along the bottle wall. The valve closes as soon as the bottle is entirely filled. The correction channel opens and the excessive fill quantity is displaced from the bottle to the end of the vent tube. With carbonated beverages, a snifting phase is performed in order to reduce the pressure in the bottle head space. Non- carbonated beverages can be removed from the filling valve right after filling is completed.

Aluminum Roll-On Capping Part

After they have been sorted according to their positions in the sorter, the caps are fed to the capper via an open chute. A towing shoe positions the caps, which are then directly picked up by the bottle. If a cap is missing, a safety plunger prevents contact between the rollers and the bottle neck finish. Depending on the cap type, a “fixed” or a deep-drawing plunger is used for press-on and shaping. The thread is rolled out via moveable arms, and if necessary, the tamper-evident band is flanged. The lateral pressure can be easily readjusted with adjusting screws.

EcoPura factory directly supply wine filling machine factory for distribution-5

EcoPura factory directly supply wine filling machine factory for distribution-6

Caps online Sterilization

ECOPURA dedicated in every process details to control the hygiene such as for the caps sterilizing to ensure the maximum hygiene for your all kinds beverages. Caps online sterilizer made of stainless steel 316L with built in spraying device for high pressure Ozonated pure water sterilizing

w******w

EcoPura wine filling machine is well designed. Its detailed design includes mechanical design, structural design, electrical control design, instrument panel design, etc.

l******d

The manufacture of EcoPura wine bottle filling machine includes the specific design of the polymer optical component, assembly, concept and prototype testing through to mass production with multiple injection molding processes, optoelectronic assembly, and packing.

x******k

Quality tests of EcoPura wine filling machine will be conducted rigorously complying with the requirements in the phone accessories industry. It has a series of quality tests including pressure test, high/low-temperature test, strength test, etc.

d******t

Before production, the materials and components of EcoPura wine bottle filling machine have to go through inspections. They must be verified by the QC team to ensure its maximum electrical safety.

m******z

EcoPura wine filling machine is made with suitable materials. The designer determines the material according to the goods. For example, if the displayed goods are heavy, the better choice is wood/wire/plastic material.

z******p

This high-quality wine filling machine is constructed with well-chosen materials and elaborate workmanship. It is a safe and eco-friendly product with high sturdiness and long-lasting durability. It is easy to assemble and disassemble. It sells well and enjoys wide acclaim in the domestic and foreign markets.
