factory directly supply Bottle Labeling Machine double overseas market for sale

Product Detail

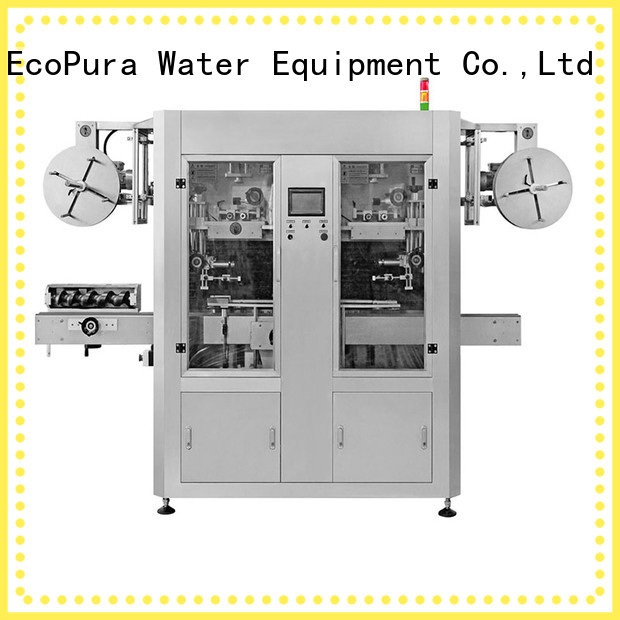

Double Head Sleeve Labeller

EcoPura 's double head sleeve labeler is the fruit of considering the potential for high demand of hygiene and eye catching is key to influencing the consumer purchasing decision and ensuring a significant impact on your product's success, double head sleeve labeler provide both labeling for container 's Cap and body The shrink sleeve labels are applied with a cling-fit to the contours of a container using thermal energy. This makes it possible to achieve all-round decoration whatever the shape of the container, the label sleeve can function as an effective seal and can also serve as a light barrier to protect the liquid.

EcoPura factory directly supply Bottle Labeling Machine overseas market for sale-1

Product Parameter

Model	EcoSL100D	EcoSL150D	EcoSL250D	EcoSL400D
Capacity	100b/min	150b/min	250b/min	400b/min
Label Height	＜250mm	＜250mm	＜250mm	＜250mm
Label Material	PVC, PET, OPS, PE, R-PET, PLA, PP
Label Thickness	Ranging from 15um to 130um
Containers Spec	Suitable for bottle size up to 2Liters with dia ranging from 50-100mm
Power	3kw	3kw	3kw	3kw

The key components

Double Sleeve applicator

Sleeve positioning

♦Sleeve lowered by a brush system

Double Sleeve supply unit

♦Two label film reel holders

Method of operation

♦ The infeed worm spaces the incoming containers to the pitch.
♦ The flat sleeve film is unwound from the reel in the sleeve supply unit.
♦ The deflection rollers in the sleeve supply unit function as a buffer.
♦ The feed rollers convey the sleeve film from the sleeve supply unit to the sleeve applicator.
♦ The opening mandrel opens the flat sleeve film.
♦ The opened sleeve is precisely cut to the desired length by a servo-controlled cutting unit.
♦ Two servo-controlled rollers accelerate the sleeve and apply it over the container.
♦ The downstream brush system ensures that the label is precisely fitted.

Shrink steaming tunnel: construction

♦ Container infeed
♦ Temperature gauge
♦ Door
♦ Steam pressure adjustment
♦ Shut-off valve for extraction system
♦ Steam extraction
♦ Container discharge

Shrink steaming tunnel: method of operation

♦ The containers with sleeves applied to them are fed through the steaming tunnel.
♦ The steam pressure adjustment facility and shut-off valve for the extraction system enable the required temperature in each segment of the tunnel to be set.
♦ The nozzle bars supply the steam to the sleeve from the bottom upwards.
♦ The sleeve shrinks under the impact of the heat and adapts to the shape of the container.
♦ The finished, sleeved container leaves the steaming tunnel.

v******q

EcoPura Bottle Labeling Machine is the outcome of the crystallization of human wisdom. It is developed adopting the knowledge of ergonomics with the combination of the features of different mobile phones. The product has the advantage of low failure rate

x******v

EcoPura round bottle labeling machine is an inter infiltration result of various technologies. It is developed by the R&D team who adopts the mechanical technique, detection and sensing technology, automatic control technology, and servo drive technology. The product has a reliable electrical system, without any short circuit, or electric leakage occurring

y******y

EcoPura round bottle labeling machine is tested to guarantee its safety. After it is completed, it will be placed in the electromagnetic field where features strong current and high voltage to check its stability and reliability. The product features a high degree of automation

f******q

EcoPura Bottle Labeling Machine complies with energy efficiency standards. It is proven to be compatible in the USA, the EU, and China in terms of minimum energy performance standards (MEPS) and class-average standards. It can be configured in a straight line or in an L-shaped configuration

m******n

EcoPura Bottle Labeling Machine is of flexible design. It is completely customizable on everything from the shape and size to the wrap and messaging. The product is able to provide a great purifying effect

d******v

The product has been audited and certified to be compliant with the strictest quality requirement. The product is equipped with air conveyor and frequency control
