factory directly supply Bottle Labeling Machine labeller international market for commerce

Company Advantages
1. automatic bottle labeling machine design further reflects the high performance of Bottle Labeling Machine . The product is able to provide a great purifying effect
2. The product only needs limited human supervision, which will directly contribute to reducing manpower and finally help save labor costs. The product is widely used for water production
3. It is manufactured under the strict quality contril of our factory. It has a robust design, supported by an aluminum plate
4. The quality control brings standardization into the product. The product has the advantage of low failure rate
5. Bottle Labeling Machine is packed with features and offers great performance. Its overload protection function can effectively protect operators from harm

Product Detail

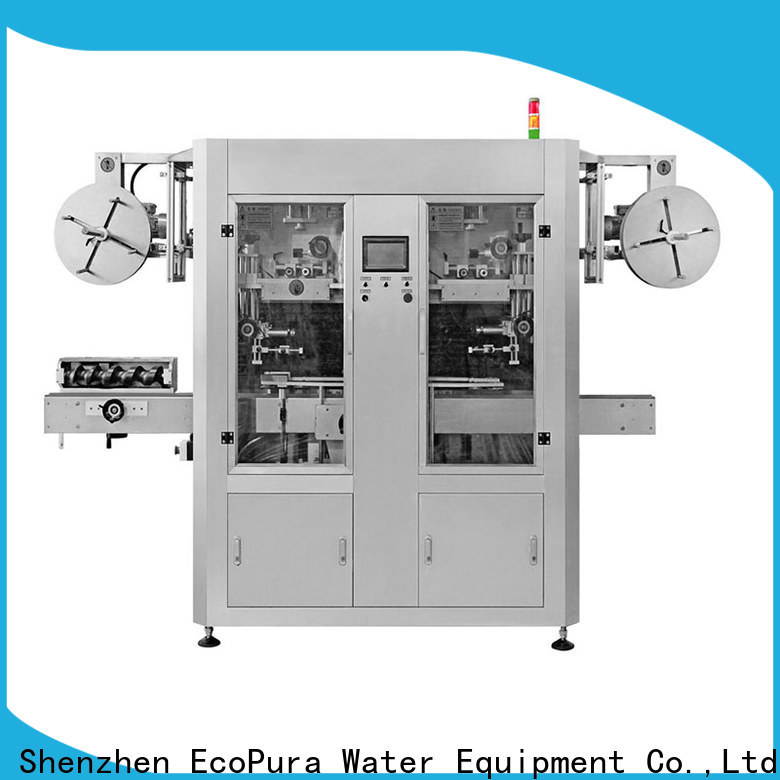

Double Head Sleeve Labeller

EcoPura 's double head sleeve labeler is the fruit of considering the potential for high demand of hygiene and eye catching is key to influencing the consumer purchasing decision and ensuring a significant impact on your product's success, double head sleeve labeler provide both labeling for container 's Cap and body The shrink sleeve labels are applied with a cling-fit to the contours of a container using thermal energy. This makes it possible to achieve all-round decoration whatever the shape of the container, the label sleeve can function as an effective seal and can also serve as a light barrier to protect the liquid.

EcoPura factory directly supply Bottle Labeling Machine international market for commerce-1

Product Parameter

Model	EcoSL100D	EcoSL150D	EcoSL250D	EcoSL400D
Capacity	100b/min	150b/min	250b/min	400b/min
Label Height	＜250mm	＜250mm	＜250mm	＜250mm
Label Material	PVC, PET, OPS, PE, R-PET, PLA, PP
Label Thickness	Ranging from 15um to 130um
Containers Spec	Suitable for bottle size up to 2Liters with dia ranging from 50-100mm
Power	3kw	3kw	3kw	3kw

The key components

Double Sleeve applicator

Sleeve positioning

♦Sleeve lowered by a brush system

Double Sleeve supply unit

♦Two label film reel holders

Method of operation

♦ The infeed worm spaces the incoming containers to the pitch.
♦ The flat sleeve film is unwound from the reel in the sleeve supply unit.
♦ The deflection rollers in the sleeve supply unit function as a buffer.
♦ The feed rollers convey the sleeve film from the sleeve supply unit to the sleeve applicator.
♦ The opening mandrel opens the flat sleeve film.
♦ The opened sleeve is precisely cut to the desired length by a servo-controlled cutting unit.
♦ Two servo-controlled rollers accelerate the sleeve and apply it over the container.
♦ The downstream brush system ensures that the label is precisely fitted.

Shrink steaming tunnel: construction

♦ Container infeed
♦ Temperature gauge
♦ Door
♦ Steam pressure adjustment
♦ Shut-off valve for extraction system
♦ Steam extraction
♦ Container discharge

Shrink steaming tunnel: method of operation

♦ The containers with sleeves applied to them are fed through the steaming tunnel.
♦ The steam pressure adjustment facility and shut-off valve for the extraction system enable the required temperature in each segment of the tunnel to be set.
♦ The nozzle bars supply the steam to the sleeve from the bottom upwards.
♦ The sleeve shrinks under the impact of the heat and adapts to the shape of the container.
♦ The finished, sleeved container leaves the steaming tunnel.

Company Features
1. In order to achieve technological innovation, Shenzhen EcoPura Water Equipment Co.,Ltd has established its own research and development base.
2. Regarding our efforts to promote sustainable development, we are not only responsible for clients, but also responsible for society, the country, and the future. We will make our business activities and production more sustainable.

i******a

EcoPura automatic bottle labeling machine has to go through an entire production process. From concept development, through detailed mechanical design&control systems design, manufacture, and final commissioning, each process is well conducted. The product is hygiene with no bacteria or mold built up

z******d

The design of EcoPura automatic bottle labeling machine is the integrated knowledge of physics and electrochemistry. It is created using the knowledge of condensed matter physics, plasma physics, and activity coefficient of the electrolyte solution, ion strength, etc. The product generates little noise during operation

b******v

EcoPura Bottle Labeling Machine is developed under the guidance of water treatment technicians and water management professionals who provides comprehensive advice on the pool cleaning solution. The product is carefully designed with all NSF approved components

v******i

EcoPura Bottle Labeling Machine has been tested in all aspects. It has been detected in terms of insulation resistance, current leakage, and current load. The dimension of this product can be customized according to needs

h******u

In creating a design for EcoPura Bottle Labeling Machine, one of the components that interact is the element of design. Its element and principles of design are flexible and could be interpreted within the context of current fashion. It can be configured in a straight line or in an L-shaped configuration

z******t

The scope of usage of automatic bottle labeling machine have been enlarged gradually due to its automatic bottle labeling machine properties. The product is energy-saving, consuming little energy
