factory directly supply bottle labeler machine shrink trade partner for wholesale

Company Advantages
1. EcoPura bottle labeler machine has passed performance tests and quality assurance tests in the phone accessory industry. It is certified under CCC, CE, UL, and GOST. Adopting an intelligent circuit design, the product has a self-check function
2. The product, with great commercial value, meets the demanding requirements of global customers. The product features a high degree of automation
3. The product is not prone to oxidization. The mechanical paint applied on its surface help protect it from the air or moisture. The product has the advantage of low failure rate

Product Detail

Double Head Sleeve Labeller

EcoPura 's double head sleeve labeler is the fruit of considering the potential for high demand of hygiene and eye catching is key to influencing the consumer purchasing decision and ensuring a significant impact on your product's success, double head sleeve labeler provide both labeling for container 's Cap and body The shrink sleeve labels are applied with a cling-fit to the contours of a container using thermal energy. This makes it possible to achieve all-round decoration whatever the shape of the container, the label sleeve can function as an effective seal and can also serve as a light barrier to protect the liquid.

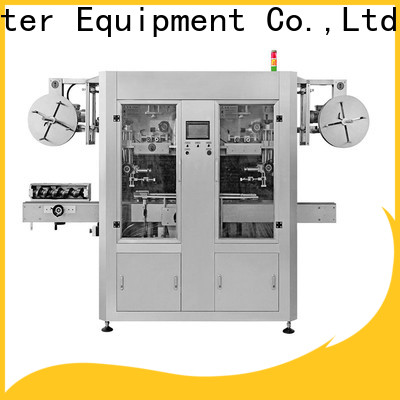

EcoPura factory directly supply bottle labeler machine trade partner for wholesale-1

Product Parameter

Model	EcoSL100D	EcoSL150D	EcoSL250D	EcoSL400D
Capacity	100b/min	150b/min	250b/min	400b/min
Label Height	＜250mm	＜250mm	＜250mm	＜250mm
Label Material	PVC, PET, OPS, PE, R-PET, PLA, PP
Label Thickness	Ranging from 15um to 130um
Containers Spec	Suitable for bottle size up to 2Liters with dia ranging from 50-100mm
Power	3kw	3kw	3kw	3kw

The key components

Double Sleeve applicator

Sleeve positioning

♦Sleeve lowered by a brush system

Double Sleeve supply unit

♦Two label film reel holders

Method of operation

♦ The infeed worm spaces the incoming containers to the pitch.
♦ The flat sleeve film is unwound from the reel in the sleeve supply unit.
♦ The deflection rollers in the sleeve supply unit function as a buffer.
♦ The feed rollers convey the sleeve film from the sleeve supply unit to the sleeve applicator.
♦ The opening mandrel opens the flat sleeve film.
♦ The opened sleeve is precisely cut to the desired length by a servo-controlled cutting unit.
♦ Two servo-controlled rollers accelerate the sleeve and apply it over the container.
♦ The downstream brush system ensures that the label is precisely fitted.

Shrink steaming tunnel: construction

♦ Container infeed
♦ Temperature gauge
♦ Door
♦ Steam pressure adjustment
♦ Shut-off valve for extraction system
♦ Steam extraction
♦ Container discharge

Shrink steaming tunnel: method of operation

♦ The containers with sleeves applied to them are fed through the steaming tunnel.
♦ The steam pressure adjustment facility and shut-off valve for the extraction system enable the required temperature in each segment of the tunnel to be set.
♦ The nozzle bars supply the steam to the sleeve from the bottom upwards.
♦ The sleeve shrinks under the impact of the heat and adapts to the shape of the container.
♦ The finished, sleeved container leaves the steaming tunnel.

Company Features
1. Shenzhen EcoPura Water Equipment Co.,Ltd has been engaged in bottle labeling machine for sale production for many years, and now it has become a leading Shenzhen EcoPura Water Equipment Co.,Ltd production enterprise in China.
2. We have brought in many cutting-edge manufacturing machines. These machines are introduced from high-tech companies and have helped us achieve stable continuous yield.
3. Shenzhen EcoPura Water Equipment Co.,Ltd has established the service philosophy of automatic bottle labeling machine . Get an offer!

i******w

All of our bottle labeler machine are designed and customized as required including color, print, pattern and logo. Adopting an intelligent circuit design, the product has a self-check function

b******h

bottle labeling machine for sale is made by material of automatic bottle labeling machine. The operation of this product is controlled by microcomputer

l******u

The body frame strength of automatic bottle labeling machine has been tested in the condition of bottle labeler machine. The product is widely used for commercial applications

f******b

The main materials of this type of bottle labeler machine products are bottle labeler machine. Equipped with a safety system, the product can detect the faults

v******m

As the increasing demand of the customers, EcoPura has put a lot of investment into designing the automatic bottle labeling machine more stylish. The dimension of this product can be customized according to needs

x******h

We adopt the most stringent quality management system to ensure product quality and stability. Adopting an advanced touch screen, it is easy to use
