factory directly supply beer bottle filling machine filling source now for importer

Product Detail

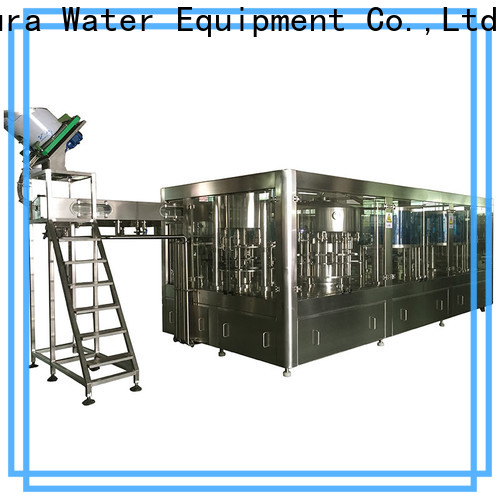

ECOPURA 3-in-1 Glass 0.3L-1.0L HSG-B series monobloc equipped with overflow filler nozzles designated for filling wine or Sparking wine

EcoPura factory directly supply beer bottle filling machine source now for importer-1

Product Specification

Model

Bottle Spec

Capacity Cal@500ML

Power

PLC & HMI

HSG8-8-3G

0.33L-1.5L
Height:150-330mm
Dia: 50-115mm

2000-3000bph

1.5kw

SIEMENS

HSG16-12-6G

3000-4500bph

1.8kw

HSG24-16-6G

5000-6000bph

2.2kw

HSG24-18-8G

7000-8000bph

2.2kw

HSG24-24-8G

10000-12000bph

3.0kw

HSG32-32-12G

15000-18000bph

5.5kw

HSG38-38-14G

18000-20000bph

7.5kw

EcoPura’s Filling machines are include but not-limited to above list,more info pls contact us.

EcoPura factory directly supply beer bottle filling machine source now for importer-2

High quality & Strict Hygiene

Production of top-quality beverages requires conditions of strict hygiene, All parts that comes into contact with the beverage are manufactured in Stainless steel 304 or 316
Contactless filling
SIEMENS PLC & Touch Screen control with Integrated and separate electro-pneumatic components

Washing Part

The machine applies unique overturning bottle clamp, Made of Stainless Steel 304 or 316. hygienic and durable. Which grips bottle at neck position, avoiding bottle mouth contamination. The high efficiency atomizing spray nozzle installed on bottle clamp is capable of cleaning any part of bottle inner wall, and saves rinsing water.

EcoPura factory directly supply beer bottle filling machine source now for importer-3

EcoPura factory directly supply beer bottle filling machine source now for importer-4

Filling Part

The machine applies unique overturning bottle clamp, Made of Stainless Steel 304 or 316 hygienic and durable. Which grips bottle at neck position, avoiding bottle mouth contamination
The high efficiency atomizing spray nozzle installed on bottle clamp is capable of cleaning any part of bottle inner wall, and saves rinsing water.

Crown Cappe

Once the crown has been fed from the crown chute into the transfer segment, a magnet is used for the further guidance of the crown. A pushing notch is then used to position the crown on the ejection plunger of the capping head. The crowning head is lowered until the crown in the crowning throat is placed on the bottle. The bottle then holds it in place. Afterwards only the crowning throat continues to be lowered. In the first phase, only the force of the guiding springs has any effect on the crown.

EcoPura factory directly supply beer bottle filling machine source now for importer-5

EcoPura factory directly supply beer bottle filling machine source now for importer-6

Caps online Sterilization

ECOPURA dedicated in every process details to control the hygiene such as for the caps sterilizing to ensure the maximum hygiene for your all kinds beverages. Caps online sterilizer made of stainless steel 316L with built in spraying device for high pressure Ozonated pure water sterilizing
