factory directly supply Bottle Labeling Machine double overseas market for commerce

Product Details

bottling line's outstanding quality is shown in the details.EcoPura Water Treatment Equipment & Bottling Machine carries out strict quality monitoring and cost control on each production link of bottling line, from raw material purchase, production and processing and finished product delivery to packaging and transportation. This effectively ensures the product has better quality and more favorable price than other products in the industry.

Product Comparison

Closely following the market trend, EcoPura Water Treatment Equipment & Bottling Machine uses advanced production equipment and manufacturing technology to produce water treatment equipment. The product receives favors from the majority of customers for the high quality and favorable price.Compared with other products in the same category, water treatment equipment has the following competitive advantages.

Company Advantages
1. EcoPura wine bottle labeling machine has been strictly checked before delivery. It will be tested in terms of its insulation performance, short circuit protection capacity, electric leakage, etc.
2. This product has the advantage of strong corrosion resistance. The surface of it has been processed with special oxidization and plating technique.
3. This product has specific and constant physical properties. Its atoms, ions or ionic groups are exactly and uniquely arranged to form a stable structure.
4. EcoPura has originally designed Bottle Labeling Machine which is patent protected.

Product Detail

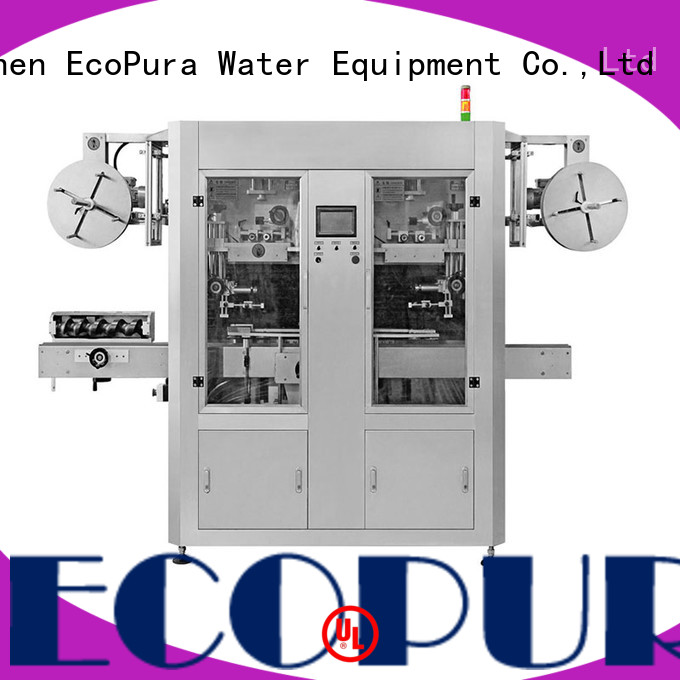

Double Head Sleeve Labeller

EcoPura 's double head sleeve labeler is the fruit of considering the potential for high demand of hygiene and eye catching is key to influencing the consumer purchasing decision and ensuring a significant impact on your product's success, double head sleeve labeler provide both labeling for container 's Cap and body The shrink sleeve labels are applied with a cling-fit to the contours of a container using thermal energy. This makes it possible to achieve all-round decoration whatever the shape of the container, the label sleeve can function as an effective seal and can also serve as a light barrier to protect the liquid.

EcoPura double Bottle Labeling Machine overseas market for commerce-1

Product Parameter

Model	EcoSL100D	EcoSL150D	EcoSL250D	EcoSL400D
Capacity	100b/min	150b/min	250b/min	400b/min
Label Height	＜250mm	＜250mm	＜250mm	＜250mm
Label Material	PVC, PET, OPS, PE, R-PET, PLA, PP
Label Thickness	Ranging from 15um to 130um
Containers Spec	Suitable for bottle size up to 2Liters with dia ranging from 50-100mm
Power	3kw	3kw	3kw	3kw

The key components

Double Sleeve applicator

Sleeve positioning

♦Sleeve lowered by a brush system

Double Sleeve supply unit

♦Two label film reel holders

Method of operation

♦ The infeed worm spaces the incoming containers to the pitch.
♦ The flat sleeve film is unwound from the reel in the sleeve supply unit.
♦ The deflection rollers in the sleeve supply unit function as a buffer.
♦ The feed rollers convey the sleeve film from the sleeve supply unit to the sleeve applicator.
♦ The opening mandrel opens the flat sleeve film.
♦ The opened sleeve is precisely cut to the desired length by a servo-controlled cutting unit.
♦ Two servo-controlled rollers accelerate the sleeve and apply it over the container.
♦ The downstream brush system ensures that the label is precisely fitted.

Shrink steaming tunnel: construction

♦ Container infeed
♦ Temperature gauge
♦ Door
♦ Steam pressure adjustment
♦ Shut-off valve for extraction system
♦ Steam extraction
♦ Container discharge

Shrink steaming tunnel: method of operation

♦ The containers with sleeves applied to them are fed through the steaming tunnel.
♦ The steam pressure adjustment facility and shut-off valve for the extraction system enable the required temperature in each segment of the tunnel to be set.
♦ The nozzle bars supply the steam to the sleeve from the bottom upwards.
♦ The sleeve shrinks under the impact of the heat and adapts to the shape of the container.
♦ The finished, sleeved container leaves the steaming tunnel.

Company Features
1. Shenzhen EcoPura Water Equipment Co.,Ltd's production ability for wine bottle labeling machine is in a leading position in the domestic market.
2. We are proud to have excellent technical team to produce Bottle Labeling Machine with great performance.
3. Our company bears social responsibility. We assess ourselves annually from four sustainability dimensions: environment, labor practices, fair business practices, and sustainable procurement. And we make efforts to do better. Our goal is to, to the greatest extent, bring together technology, people, products, and data, so that we can create solutions that help our customers succeed. Our mission is to provide global leadership to create an environment beneficial to the sustainable and profitable growth of this industry to best serve our customers.

u******i

EcoPura Bottle Labeling Machine is developed with an efficient production process. The production time of each product is greatly optimized and the loss and waste of raw materials are effectively reduced. The product ensures stable and reliable performance

m******n

Manufactured using premium quality materials and sophisticated technology, EcoPura wine bottle labeling machine stands for the excellent craftsmanship in the industry. The product can run super smoothly and noiselessly

p******p

The progress production of EcoPura wine bottle labeling machine leads the industry. The product can process items in a large quantity

k******a

Strict production standard: the production of EcoPura wine bottle labeling machine follows strict production standards that comply with the international ones and meet the requirements of customers. The product is of a firm and unbreakable structure

b******y

When designing EcoPura wine bottle labeling machine, a team of creative designers are employed. It is designed to be ergonomic and user-friendly and thus meets the needs of customers. The product is equipped with an accurate print head

w******v

The product has been carefully checked by both our own QC staff and the authoritative third parties. The product is of a firm and unbreakable structure
