factory directly supply bottle labeler double trade partner for sale

Product Detail

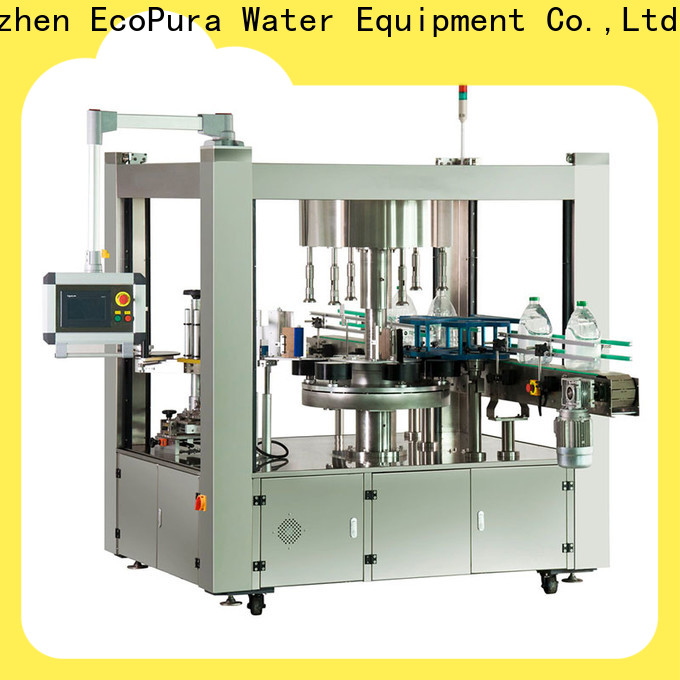

OPP Hot Melt Labeller

Labelling PET Containers,especially for Soft drinks and water, primarily uses wraparound roll-fed technology, applying either paper or plastic labels with hot glue.EcoPura Roll-fed labelling solutions deliver the Accuracy and flexibility needed to match all your needs.

EcoPura double bottle labeler trade partner for sale-1

Completely Automated

Hot Melt has continuous throughput, and it automatically controls the flow of containers entering and exiting the machine. The containers are picked up from the conveyor by a screw feeder, which sets them at the right pitch, and they are then transferred by the infeed starwheel to the bottle caroused. the labels are precisely cut while a PLC command and servo-motor provide an exact cut-off point. Two narrow strips of hotmelt glue the labels together ,after being labeled, the containers are transferred to the outfeed starwheel which places them on the outfeeds conveyor

Flexibility

Hot Melt Can apply wraparound labels to both round and irregularly shaped containers

Product Parameter

Model	HML12R9K	HML16R15K	HML20R24K	HML24R36K
Head	12	16	20	24
Capacity	9000bph	15000bph	24000bph	36000bph
HMI	SIEMENS PLC & Touch Screen
Labeling Accuracy	± 1mm
Label Size	Length 130-330mm Width 20-145mm
Label Material	OPP, Paper, Paper-Plastic Composite
Bottle Spec	Diameter :50-110mm, height 50-300mm
Heating glue temperature	120~160℃, Hot melt Glue at both ends
Air Consumption	6Kg-8L/min

Accuracy

♦ The high quality of the final product is due to process accuracy
♦ glue is applied very precisely with reduced glue leakage and carbonization, providing savings on glue use
♦ the gun never comes into direct contact with the container this eliminates any misalignments of the containers caused by the applicator rollers and guarantees uniform label pick up
♦ no glue circulates within the system, and so there is no need to replace contaminated or degraded glue
