low moq bottle labeler machine double international market for wholesale

Company Advantages
1. The necessary tests for EcoPura wine bottle labeling machine have been strictly conducted. It has been tested in terms of safety, electromagnetic compatibility, vibration, reliability, and durability. Adopting an advanced touch screen, it is easy to use
2. Shenzhen EcoPura Water Equipment Co.,Ltd has fine workmanship to produce bottle labeler machine including wine bottle labeling machine. The product has been certified under UL and CE
3. This product has great strength. Its parts are able to withstand various stresses caused by the load, such as thermal stresses, torsional stresses, and bending stress. It can be configured in a straight line or in an L-shaped configuration

Product Detail

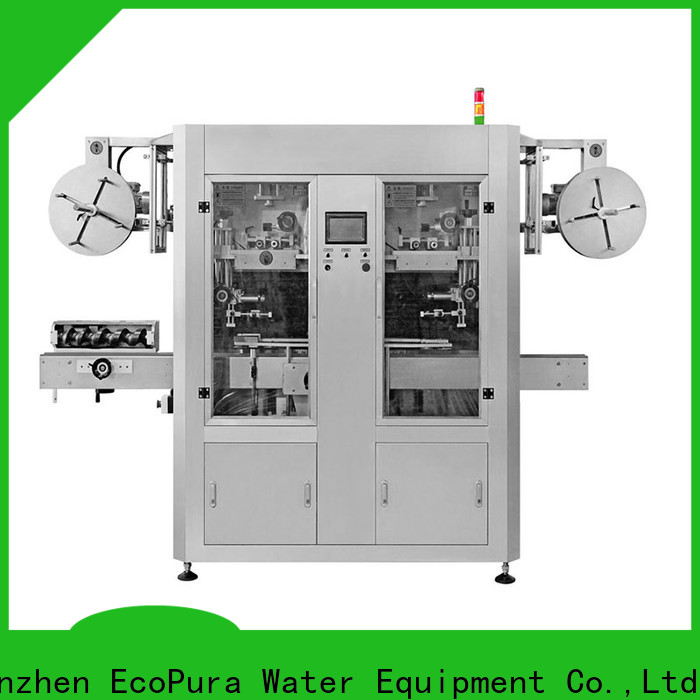

Double Head Sleeve Labeller

EcoPura 's double head sleeve labeler is the fruit of considering the potential for high demand of hygiene and eye catching is key to influencing the consumer purchasing decision and ensuring a significant impact on your product's success, double head sleeve labeler provide both labeling for container 's Cap and body The shrink sleeve labels are applied with a cling-fit to the contours of a container using thermal energy. This makes it possible to achieve all-round decoration whatever the shape of the container, the label sleeve can function as an effective seal and can also serve as a light barrier to protect the liquid.

EcoPura double bottle labeler machine international market for wholesale-1

Product Parameter

Model	EcoSL100D	EcoSL150D	EcoSL250D	EcoSL400D
Capacity	100b/min	150b/min	250b/min	400b/min
Label Height	＜250mm	＜250mm	＜250mm	＜250mm
Label Material	PVC, PET, OPS, PE, R-PET, PLA, PP
Label Thickness	Ranging from 15um to 130um
Containers Spec	Suitable for bottle size up to 2Liters with dia ranging from 50-100mm
Power	3kw	3kw	3kw	3kw

The key components

Double Sleeve applicator

Sleeve positioning

♦Sleeve lowered by a brush system

Double Sleeve supply unit

♦Two label film reel holders

Method of operation

♦ The infeed worm spaces the incoming containers to the pitch.
♦ The flat sleeve film is unwound from the reel in the sleeve supply unit.
♦ The deflection rollers in the sleeve supply unit function as a buffer.
♦ The feed rollers convey the sleeve film from the sleeve supply unit to the sleeve applicator.
♦ The opening mandrel opens the flat sleeve film.
♦ The opened sleeve is precisely cut to the desired length by a servo-controlled cutting unit.
♦ Two servo-controlled rollers accelerate the sleeve and apply it over the container.
♦ The downstream brush system ensures that the label is precisely fitted.

Shrink steaming tunnel: construction

♦ Container infeed
♦ Temperature gauge
♦ Door
♦ Steam pressure adjustment
♦ Shut-off valve for extraction system
♦ Steam extraction
♦ Container discharge

Shrink steaming tunnel: method of operation

♦ The containers with sleeves applied to them are fed through the steaming tunnel.
♦ The steam pressure adjustment facility and shut-off valve for the extraction system enable the required temperature in each segment of the tunnel to be set.
♦ The nozzle bars supply the steam to the sleeve from the bottom upwards.
♦ The sleeve shrinks under the impact of the heat and adapts to the shape of the container.
♦ The finished, sleeved container leaves the steaming tunnel.

Company Features
1. With top raw material and experienced workers, bottle labeler machine is produced with high quality.
2. We have a great dream that Shenzhen EcoPura Water Equipment Co.,Ltd one day will become a professional bottle labeler enterprise. Call!

e******t

The whole production process of EcoPura bottle labeler is guided and supervised by experienced professionals. The product is equipped with a high-efficiency operation system

n******n

EcoPura wine bottle labeling machine is crafted as per the market norms by using finest material under the supervision of experts. With a compact structure, the product can operate stably

a******y

Adoption level of production technologies for EcoPura bottle labeler machine is in good progress. The product has been certified under UL and CE

z******q

All of our EcoPura bottle labeler machine comply with the latest industry standards. The product has the advantage of low failure rate

a******d

Users are greatly pleased by the aesthetic appearance design of EcoPura bottle labeler. The product generates little noise during operation

b******r

This product is not prone to oxidization. When oxygen reacts with it, it is not easy to form an oxide on the surface. The product is hygiene with no bacteria or mold built up
