automatic bottled water machine bottling factory for commercial production

Company Advantages
1. EcoPura mineral water bottling plant cost is manufactured by utilizing computerized tensile strength testers which test the physical pulling force strength of rubber. It can be configured in a straight line or in an L-shaped configuration
2. The technology Shenzhen EcoPura Water Equipment Co.,Ltd mastered has provided a strong guarantee for the good quality of its bottled water machine. The use of this product helps in increasing the production of drinks
3. The product has a strong resistance to corrosion. Non-corrosive materials are used to enhance the product's capability to withstand rust, moisture, and chemical liquids. The product is widely used for commercial applications
4. The product is corrosion resistance. It has been processed with powder coating which forms a protective layer on its surface. Adopting an advanced touch screen, it is easy to use
5. The product is less likely affected by a high vibration environment. All its electrical parts and components are integrated to resist impacts. The product is equipped with a high-efficiency operation system

Product Detail

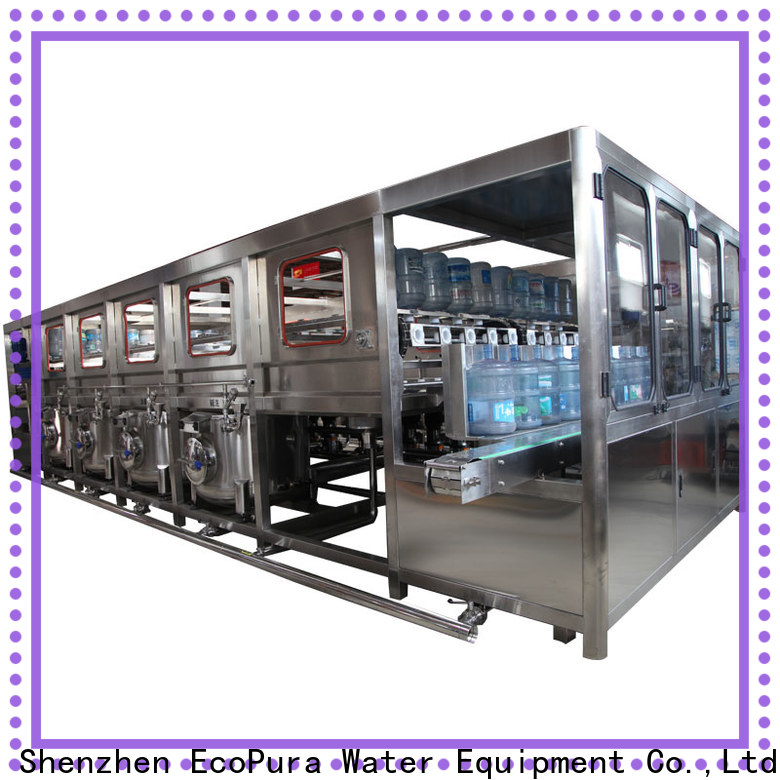

ECOPURA 5gallon bottle washing filling capping machine HSG900 with capacity 900-1000bph.

A real Hygiene filling solution for your recycling use 5Gallon bottled water business with SIEMENS PLC Control and touch Screen control. All parts that come to contact with water are manufactured in Stainless steel 304 or 316L ,Equipped S.S304 Chemical tank for multistage rinsing

EcoPura bottling bottled water machine factory for commercial production-1

EcoPura bottling bottled water machine factory for commercial production-2

EcoPura bottling bottled water machine factory for commercial production-3

EcoPura bottling bottled water machine factory for commercial production-4

Bottles Sterilizing & Washing

Exclude the brusher pre-washing process for cleaning bottles inside & outside part, the pre-washed 5gallon bottles feed into the 3-in-1 washing filling capping unit which Designed Multistage high-pressure inner washing Process include Hot Alkaline washing, disinfection water washing, Dripping ,Ozonated pure water cleaning for ensuring the recycled bottles 100% clean & health, the washing system is controlled by pumping though cleaning tank and the ejecting nozzles on the bottle carrier to spraying the inner wall of the bottles by high pressure water, after finishing the washing process, the bottles will discharge though reverse turn-over mechanize and transported to the filling Part for full filling as designated volume and finally capping, discharge out the 3-in-1 by conveyor to next step

Caps Loading & washing

The Caps elevator doses the caps into the caps unscrambler then delivery through caps chute to enter into caps washing tunnel, finished clean caps feed following the chute transferring to capping position on capping machine

Design for online 5Gallon caps cleaning & Sterilizing by multistage washing process -detergent washing & purified water washing,

EcoPura bottling bottled water machine factory for commercial production-5

EcoPura bottling bottled water machine factory for commercial production-6

Rotary Filling & Capping

Clean bottles are discharged out of the rinse by conveyor to feed the filler. After entering the filler, bottles are retained by bottom supporting plates, which are actuated by bottle supporting mechanism to raise them to engage with filling valves. Filling valves are opened by bottle presence signals. After finishing filling, valves are closed by valve closing mechanism to further stop venting to complete the filling process.

Product Solution

A turnkey solution for 5Gallon bottling line

♦ 1.Automatic bottle decapper
♦ 2.Automatic inside & outside brusher washer
♦ 3.Automatic bottle feeder -Multistage high-pressure washing unit
♦ 4.Linear or Rotary filler & capper
♦ 5.Automatic Capsules Labeling shrinking
♦ 6.Light Inspection
♦ 7.Thin film (bag) Packing
♦ 8.Palletizer

Company Features
1. Shenzhen EcoPura Water Equipment Co.,Ltd is a specialized manufacturer of high class bottled water machine. Staff working in Shenzhen EcoPura Water Equipment Co.,Ltd are all well-trained.
2. Our Shenzhen EcoPura Water Equipment Co.,Ltd has already passed relative audit.
3. The cutting-edge technology adopted in filling equipment helps us win more and more customers. Shenzhen EcoPura Water Equipment Co.,Ltd aims to be a vanguard company in Chinese water bottling equipment industry. Check it!

f******c

From the materials to designs, EcoPura water bottling equipment is totally guaranteed by our professional expertise. It is resistant to breakage with its sturdy frame

g******q

EcoPura filling equipment is designed with a trendy and aesthetically-appealing look. The product is highly automatic and controllable

k******s

EcoPura water bottling equipment is designed with an innovative and attractive appearance. The product is very easy to maintain

p******k

EcoPura water bottling equipment is designed with an aesthetically-pleasing look that sets it apart from the ordinary. The product has the merit of full traceability

a******z

EcoPura bottled water machine is manufactured as per the current industry standards. The product has passed the CE certification

u******m

water bottling equipment The design is scientific and reasonable, the structure is tight and compact, the practicability is strong, the safety is high, it has the characteristics of anti-corrosion and wear resistance, strong self-cleaning ability, long service life, stable quality and high quality.
