automatic mineral water bottle filling machine machine factory for commercial production

Product Detail

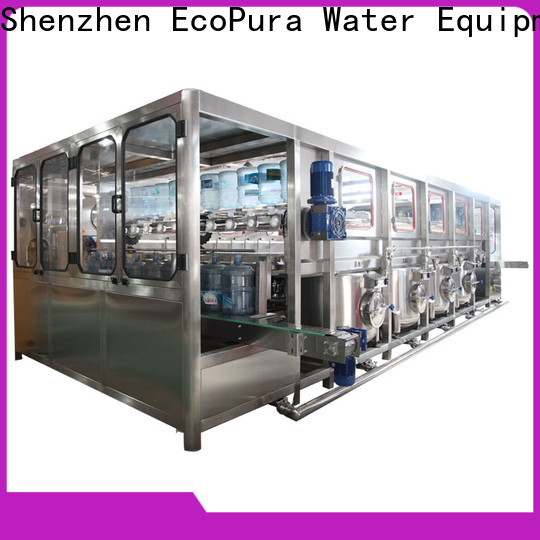

ECOPURA 5gallon bottle washing filling capping machine HSG600 with capacity 600bph.
A real Hygiene filling solution for your recycling use 5Gallon bottled water business with SIEMENS PLC Control and touch Screen control. All parts that come to contact with water are manufactured in Stainless steel 304 or 316L ,Equipped S.S304 Chemical tank for multistage rinsing

EcoPura automatic mineral water bottle filling machine factory for commercial production-1

EcoPura automatic mineral water bottle filling machine factory for commercial production-2

Bottles Sterilizing & Washing

Exclude the brusher pre-washing process for cleaning bottles inside & outside part, the pre-washed 5gallon bottles feed into the 3-in-1 washing filling capping unit which Designed Multistage high-pressure inner washing Process include Hot Alkaline washing, disinfection water washing, Dripping ,Ozonated pure water cleaning for ensuring the recycled bottles 100% clean & health, the washing system is controlled by pumping though cleaning tank and the ejecting nozzles on the bottle carrier to spraying the inner wall of the bottles by high pressure water, after finishing the washing process, the bottles will discharge though reverse turn-over mechanize and transported to the filling Part for full filling as designated volume and finally capping, discharge out the 3-in-1 by conveyor to next step

Caps Loading & washing

The Caps elevator doses the caps into the caps unscrambler then delivery through caps chute to enter into caps washing tunnel, finished clean caps feed following the chute transferring to capping position on capping machine .Design for online 5Gallon caps cleaning & Sterilizing by multistage washing process -detergent washing & purified water washing,

EcoPura automatic mineral water bottle filling machine factory for commercial production-3

EcoPura automatic mineral water bottle filling machine factory for commercial production-4

Rotary Filling & Capping

Clean bottles are discharged out of the rinse by conveyor to feed the filler. After entering the filler, bottles are retained by bottom supporting plates, which are actuated by bottle supporting mechanism to raise them to engage with filling valves. Filling valves are opened by bottle presence signals. After finishing filling, valves are closed by valve closing mechanism to further stop venting to complete the filling process.

Product Solution

A turnkey solution for 5Gallon bottling line

♦ 1.Automatic bottle decapper
♦ 2.Automatic inside & outside brusher washer
♦ 3.Automatic bottle feeder -Multistage high-pressure washing unit
♦ 4.Linear or Rotary filler & capper
♦ 5.Automatic Capsules Labeling shrinking
♦ 6.Light Inspection
♦ 7.Thin film (bag) Packing
♦ 8.Palletizer

j******c

The design of EcoPura mineral water bottling plant reveals its sophistication and consideration. It is designed in a human-oriented manner that is widely pursued in the furniture industry. The product is widely applied in the gas and petroleum industry

h******y

The design of EcoPura mineral water bottling plant is human-oriented. It takes various factors into consideration, including the functionality and practicality that bring to people's life, convenience, and safety level. The product is easy to maintain and helps improve productivity

i******t

All of the materials used in EcoPura mineral water bottle filling machine are required to meet relevant demands. The hardware or mechanical components will be tested for mechanical properties and chemical composition. The product is consistently recognized as a reliable one in the industry

t******w

EcoPura mineral water bottle filling machine is made of materials that are rigorously selected to meet the furniture processing requirement. Several factors will be considered when selecting materials, such as processability, texture, appearance quality, strength, as well as economical efficiency. This product has the characteristics of explosion proof

d******j

The inspections of EcoPura mineral water bottle filling machine are strictly conducted. These inspections cover performance check, size measurement, material & color check, adhesive check on the logo, and hole, components check. This product has the advantages of speed and efficiency

l******h

We have a set of scientific cost control system, insist on strictly commanding and controlling mineral water bottle filling machine the production cost of each link, try our best to reduce the cost to a lower level without violating the cost principle, and maintain it to ensure The produced mineral water bottle filling machine has an affordable price.
