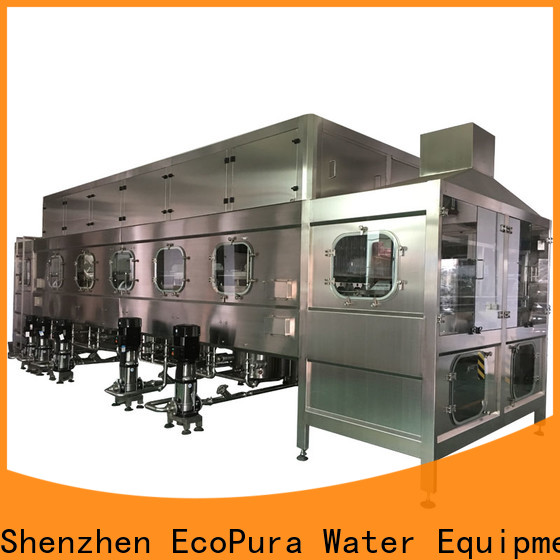

ECOPURA 5gallon bottle washing filling capping machine HSG1500 with capacity 1500bph
A real Hygiene filling solution for your recycling use 5Gallon bottled water business with SIEMENS PLC Control and touch Screen control. All parts that come to contact with water are manufactured in Stainless steel 304 or 316L ,Equipped S.S304 Chemical tank for multistage rinsing

EcoPura automatic bottled water machine more buying choices for distribution-1

EcoPura automatic bottled water machine more buying choices for distribution-2

EcoPura automatic bottled water machine more buying choices for distribution-3

EcoPura automatic bottled water machine more buying choices for distribution-4

EcoPura automatic bottled water machine more buying choices for distribution-5

Bottles Sterilizing & Washing

Exclude the brusher pre-washing process for cleaning bottles inside & outside part, the pre-washed 5gallon bottles feed into the 3-in-1 washing filling capping unit which Designed Multistage high-pressure inner washing Process include Hot Alkaline washing, disinfection water washing, Dripping ,Ozonated pure water cleaning for ensuring the recycled bottles 100% clean & health, the washing system is controlled by pumping though cleaning tank and the ejecting nozzles on the bottle carrier to spraying the inner wall of the bottles by high pressure water, after finishing the washing process, the bottles will discharge though reverse turn-over mechanize and transported to the filling Part for full filling as designated volume and finally capping, discharge out the 3-in-1 by conveyor to next step

Caps Loading & washing

The Caps elevator doses the caps into the caps unscrambler then delivery through caps chute to enter into caps washing tunnel, finished clean caps feed following the chute transferring to capping position on capping machine

Design for online 5Gallon caps cleaning & Sterilizing by multistage washing process -detergent washing & purified water washing

EcoPura automatic bottled water machine more buying choices for distribution-6

EcoPura automatic bottled water machine more buying choices for distribution-7

Rotary Filling & Capping

Clean bottles are discharged out of the rinse by conveyor to feed the filler. After entering the filler, bottles are retained by bottom supporting plates, which are actuated by bottle supporting mechanism to raise them to engage with filling valves. Filling valves are opened by bottle presence signals. After finishing filling, valves are closed by valve closing mechanism to further stop venting to complete the filling process.

Product Solution

A turnkey solution for 5Gallon bottling line

♦ 1.Automatic bottle decapper
♦ 2.Automatic inside & outside brusher washer
♦ 3.Automatic bottle feeder -Multistage high-pressure washing unit
♦ 4.Linear or Rotary filler & capper
♦ 5.Automatic Capsules Labeling shrinking
♦ 6.Light Inspection
♦ 7.Thin film (bag) Packing
♦ 8.Palletizer

f******o

The design of EcoPura bottled water machine involves several factors. These factors include part tolerances, size limitations, materials selection, mechanical analysis, function realization, etc. It has a clear and user-friendly display screen

k******v

The workmanship of EcoPura bottled water machine requires particular skills of machinists. It has to be welded, stamped, and brazed by professional workers, and its parts are put together and fastened by hands during assembly. It can be installed either horizontally or vertically with a variety of optional end-fittings

c******a

EcoPura bottled water machine is manufactured in line with industrial standards. Its plug, electric cords, and socket are made complying with the local electricity supply system. It is highly recognized by Sinopec, CNNC, and other large-scale energy companies

v******f

EcoPura bottled water machine is manufactured by taking an array of regulatory compliance into considerations, including electrical safety, electromagnetic compatibility (EMC) and the chemical composition of materials. The product has a wide measuring range

d******u

EcoPura water refilling machine meets electrical international standards. They generally include IEC 60038 (IEC standard voltages) and IEC60076 (Power transformers). It can be installed either horizontally or vertically with a variety of optional end-fittings

u******m

This product has certain air permeability. It provides a tunnel for the skin to exchange air with the outside world. In the meantime, it contributes to the divergence of human heat. This product has certain air permeability. It provides a tunnel for the skin to exchange air with the outside world. In the meantime, it contributes to the divergence of human heat. It is widely used in the chemical industry, metal & mining industry, etc
