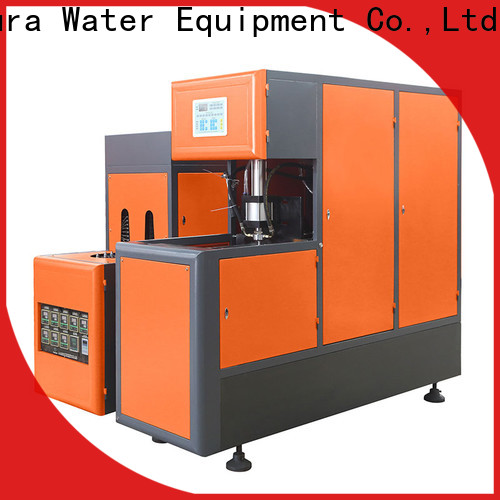

EPC-20L Bottle Blow Molding Machine for 3Gallon to 6Gallon PET bottle

EcoPura 960012000bph blow molding machine manufacturer trade partner for b2b-1

Product Parameter

Model	EPC-20L
Mold Cavities	1
Speed	100bph
Bottle Size -Max	20L
Bottle Height	＜600 mm
Bottle Neck	＜200 mm
Bottle Body Diameter	＜400 mm
Working Pressure	1.0kg/cm2
Low Pressure Air Consumption	560L/min
Blowing Air Pressure	12-28kg/cm2
High Pressure Air Consumption	650L/min
Installation Power	70kw
Practical Power	15-40kw
Machine Size	L2.4mW0.7mH1.65m
Weight	1300kgs

Product Specification

♦ Adopting double crank to adjust mould, heavy locking mould, stable and fast, Adopt infrared oven to heat the perform, the perform rotated and heated equally.
♦ The air system has been divided into two parts: Pneumatic action part and bottle blow part to meet the different requirements for the action and blow. It can provide sufficient and steady high pressure for blowing large irregular shaped bottles.
♦ The machine is also equipped with muffler and oiling system to lubricate the mechanical part of the machine.
♦ The machine can be operated in the step-by-step mode and the semi- auto mode.
♦ The machine is small with low investment, easy and safe to operate by one person.

a******a

The production of EcoPura blow molding machine manufacturer follows the strict production process.

r******j

EcoPura bottle making machine is elaborately manufactured using the latest advanced technology and production method.

v******r

EcoPura bottle making machine is finely manufactured thanks to the applications of advanced technology and lean production system.

o******e

Advanced production technology: bottle making machine is manufactured following the guidance of lean production method and completed by the combined efforts of advanced equipment and skilled workers.

d******z

In the design of EcoPura bottle making machine, a professional market survey is carried out according to customers' demands. As a result of innovative ideas and technologies, it is user-friendly.

e******w

This product has the advantages of long service life and excellent performance.
