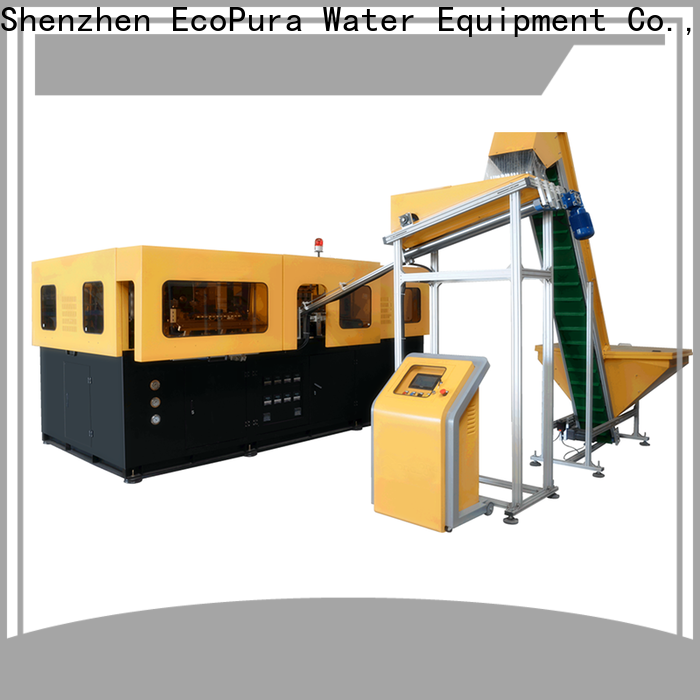

EPC-4EL,6EL Blower mainly used for blowing Water/CSD/Juice beverage bottle, Oil bottle ,condiment bottle ,cosmetic bottle and other packaging containers
Model | EPC-4EL | EPC-6EL |
Mold Cavities | 4 | 6 |
Speed | 4800-5000bph | 7200-7500bph |
Bottle Size | Up to 2L | Up to 2L |
Bottle Height | ＜330 mm | ＜330 mm |
Bottle Neck | Φ18-Φ38 mm | Φ18-Φ38 mm |
Bottle Body Diameter | Φ106 mm | Φ106 mm |
Working Pressure | 7-9kg/cm | 7-9kg/cm2 |
Low Pressure Air Consumption | 2000L/min | 2000L/min |
Blowing Air Pressure | 25-35kg/cm2 | 25-35kg/cm2 |
High Pressure Air Consumption | 6000L/min | 8000L/min |
Heating lamp | 48pcs | 72pcs |
Installation Power | 96kw | 110kw |
Practical Power | 30-50kw | 40-60kw |
Machine Size | L4.5m*W2.2m*H2.6m | L5.8m*W2.2m*H2.6m |
Weight | 6500kgs | 10000kgs |
♦ Servo Control all process
♦ Electrical components are World famous brand: FESTO, Schneider, Omron etc
♦ Visibility, maintainability, standardized components, Safety
♦ A Scrap rate of under 0.1%
♦ Up to 99% production efficiency
♦ Changeovers in less than 30mins
♦ Oven electrical consumption cut by up to 25%-30%
♦ Compressed air saving up to 20%-25%
