100% quality water treatment methods 8m3h solution expert for the global market

Product Details

EcoPura Water Treatment Equipment & Bottling Machine's bottling line is processed based on advanced technology. It has excellent performances in the following details.EcoPura Water Treatment Equipment & Bottling Machine insists on the use of high-quality materials and advanced technology to manufacture bottling line. Besides, we strictly monitor and control the quality and cost in each production process. All this guarantees the product to have high quality and favorable price.

Application Scope

water treatment equipment developed and produced by EcoPura Water Treatment Equipment & Bottling Machine is widely used. The following are several application scenes presented for you.EcoPura Water Treatment Equipment & Bottling Machine is able to meet customers' needs to the greatest extent by providing customers with one-stop and high-quality solutions.

Company Advantages
1. As one of the attractive point, reverse osmosis water filter helps water treatment methods attract more attention.
2. The product can offer water that is clean and harmless. Its activated charcoal, with maximized number of pores, has largely widens its absorption surface to remove more pollutant molecules.
3. The product can run under extreme conditions. All the electric components and the electrode leader have been tested for voltage resistance and insulation performance.
4. This product only requires a low number of workers, which helps save labor costs. This will finally help business owners achieve a competitive advantage.
5. The product helps create a safer working environment for employees. It greatly reduces the risks of getting injured thanks to its automation.

Product Detail

Seawater Reverse Osmosis Systems SWRO

From water-makers to industrial sized Seawater Purification, we offer a full range of systems. Our units are manufactured to eliminate a large amount of salts and other minerals from seawater using RO. Our equipment does the filtration by employing a high-pressure pump to salty water forcing it through semi-porous membranes denying salts and other organics from flowing through. The membranes are only tasked to remove dissolved solids while dividing the feed water into purified water and rejected concentrated salts. The salts and other organics are thrown into the brine stream then flushed into a drain. At the end we have purified water that has 99% less dissolved salts. These sea water RO systems have the power to purify extremely high TDS water. Seawater RO systems are usable anywhere from yachts to municipalities.

EcoPura 8m3h water treatment methods solution expert for the global market-1

EcoPura 8m3h water treatment methods solution expert for the global market-2

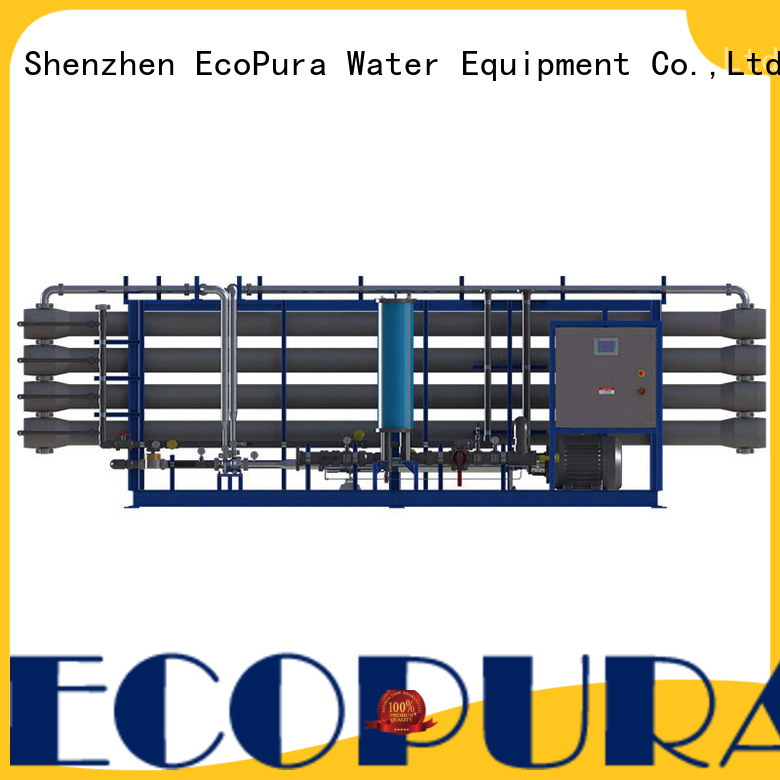

Industrial Seawater Reverse Osmosis desalination system

For continuous or heavy-duty service in marine applications on and off shore, ECOPURA manufactures a full line of designed seawater desalination systems

Seawater Reverse Osmosis

Seawater Reverse Osmosis (SWRO) is a reverse osmosis desalination membrane
process with typical single pass SWRO system consists of the following components:
Intake: well or open water
Pre-treatment: Filtration and chemical dosing
High-pressure pump: to achieve the needed pressure
Membrane assembly: to perform the desalination process
pH adjustment: to adjust the alkalinity or acid level
Disinfection: to prevent any bacterial or organic growth

EcoPura 8m3h water treatment methods solution expert for the global market-3

EcoPura 8m3h water treatment methods solution expert for the global market-4

Customizable RO System Capacity

Our Industrial SWRO Series is available with capacities ranging from 8,000 GPD to 660,000 GPD and a maximum feed water TDS of 45,000 ppm. We can provide standard SWRO Series units as well as customizable to fit you water application needs. ECOPURA Sea Water Reverse Osmosis Systems are capable of removing salts as well as other impurities such as bacteria, sugars, proteins, dyes and constituents that have a molecular weight greater than 150-250 Dalton. ECOPURA supplies a full line of standard and customizable Sea Water Reverse Osmosis systems, all of which are engineered using advanced 3D computer modeling and process design software for accurate and customized solutions.

Product Specification

Operation Specifications

Max. feed water temperature: 42°C

Equipment upgrade for TDS up to 50,000 ppm

H2S, turbidity and organics must be removed

Feed water TDS: 10,000-42,000 ppm

Operating pressure: 700 to 1,000 ps

pH tolerance range: 3-11

Feed water pressure: 40 to 80 psi

Antiscalant dosing is required

Max. Iron content: 0.05 ppm

Model	Capacity		Qty of 8040 membranes
Model	GPD	M3/D	2
SWRO8000	8000	30	3
SWRO12000	12000	45	4
SWRO16000	16000	60	6
SWRO24000	24000	90	8
SWRO32000	32000	120	12
SWRO48000	48000	182	16
SWRO64000	64000	242	18
SWRO72000	72000	273	24
SWRO96000	96000	363	28
SWRO112000	112000	424	34
SWRO136000	136000	515	42
SWRO168000	168000	636	49

Operation Specifications

Available Options

Powder coated steel frame

Heavy duty 5 micron cartridge prefilter

Sea water resistant SS pump

Microprocessor/PLC based control panel & VFD

Glycerin-filled 316 SS prefilter pressure gauges

Product & reject flow meters

TFC spiral wound membranes

FRP membrane housings

380V/3Ph/50Hz power supply

Low & high pressure switches

Permeate TDS monitor

Stainless steel high pressure piping

Stainless steel throttling valve for reject stream

Automatic feed shut off valve

Energy recovery on 64K GPD and larger

Booster pump

380-415V/3Ph/50Hz power supply

Product tank level switch

pH controller with sensor

ORP controller with sensor

Hour meter

Cleaning skid

50 micron bag filter for open intake

Carbon prefilter

Multimedia prefilter

UV sterilizer

Custom designed units

Export crating

Chemical dosing units

The ideal applications for an Industrial Sea Water RO system include

Oil Tankers

Island-Based Businesses

Villages & Cities

Cargo Ships

Coastal Developments

Hotels & Resorts

Seaside Work Sites

Work Boats

Fish Processing Plants

Seaside Villas

Company Features
1. Shenzhen EcoPura Water Equipment Co.,Ltd has spent years concentrating on water treatment methods which is manufactured based on superb technology and fine workmanship.
2. Shenzhen EcoPura Water Equipment Co.,Ltd utilizes high technology to greatly improve the quality and performance of water treatment .
3. Superior quality and professional service in Shenzhen EcoPura Water Equipment Co.,Ltd will satisfy you. Get more info! Shenzhen EcoPura Water Equipment Co.,Ltd will persistently strive to achieve excellence in our works. Get more info!

b******w

Shenzhen EcoPura Water Equipment Co.,Ltd Relying on years of accumulated production experience, strong technology and research and development strength, advanced equipment and production lines, it is more handy in the production and manufacturing of reverse osmosis water filter, knowing how to reasonably supervise and control each production step and process, Provide guarantee for the production of high-quality products.

m******g

Shenzhen EcoPura Water Equipment Co.,Ltd has many years of production experience, exquisite production technology, strong production strength, and can produce high-quality water treatment methods.

q******b

Shenzhen EcoPura Water Equipment Co.,Ltd has a modern production workshop and advanced water treatment methods production equipment, and has established a strict quality management system, and quality inspection personnel will conduct inspections in every link of water treatment methods production to ensure water treatment methods good quality and high quality excellent.

z******w

The company attaches great importance to product quality and strives for excellence in all aspects of production. The water treatment produced are exquisite in workmanship, excellent in quality and strong in practicability.

d******n

Shenzhen EcoPura Water Equipment Co.,Ltd Passed various relevant national certifications, reverse osmosis water filter produced have relevant quality inspection certificates, the quality of the products is guaranteed, and customers are more assured in purchasing.

x******f

It has the required colorfastness. It can withstand the normal cleaning/dry cleaning cycle without fading. Its coating has been treated by high temperature, enabling users to maintain it more easily
