Product Detail

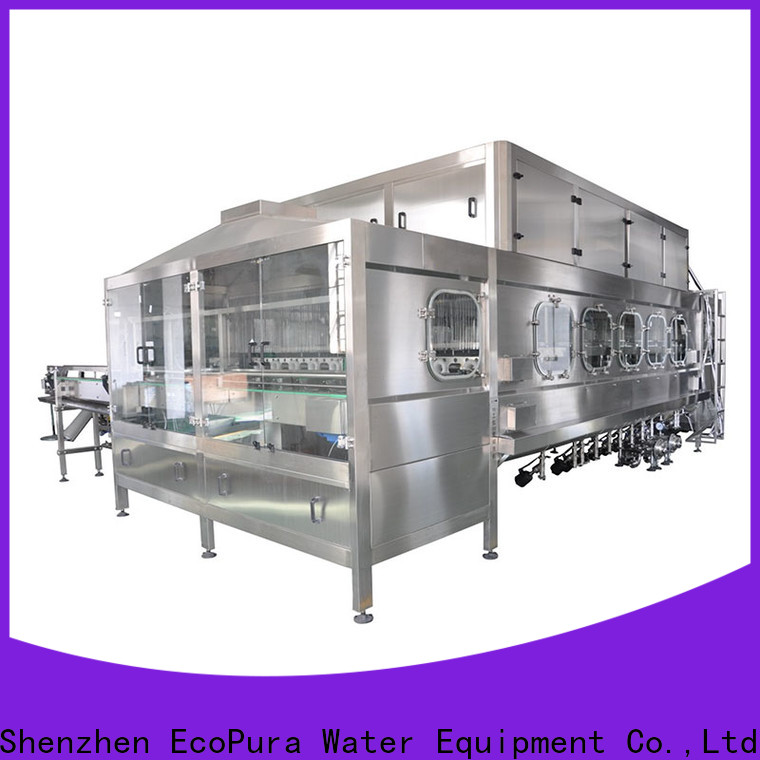

ECOPURA 5gallon bottle washing filling capping machine HSG1200 with capacity 1200bph.
A real Hygiene filling solution for your recycling use 5Gallon bottled water business with SIEMENS PLC Control and touch Screen control. All parts that come to contact with water are manufactured in Stainless steel 304 or 316L ,Equipped S.S304 Chemical tank for multistage rinsing

EcoPura 5gallon mineral water bottle filling machine more buying choices for industrial production-1

EcoPura 5gallon mineral water bottle filling machine more buying choices for industrial production-2
EcoPura 5gallon mineral water bottle filling machine more buying choices for industrial production-3
EcoPura 5gallon mineral water bottle filling machine more buying choices for industrial production-4

EcoPura 5gallon mineral water bottle filling machine more buying choices for industrial production-5

Bottles Sterilizing & Washing
Exclude the brusher pre-washing process for cleaning bottles inside & outside part, the pre-washed 5gallon bottles feed into the 3-in-1 washing filling capping unit which Designed Multistage high-pressure inner washing Process include Hot Alkaline washing, disinfection water washing, Dripping ,Ozonated pure water cleaning for ensuring the recycled bottles 100% clean & health, the washing system is controlled by pumping though cleaning tank and the ejecting nozzles on the bottle carrier to spraying the inner wall of the bottles by high pressure water, after finishing the washing process, the bottles will discharge though reverse turn-over mechanize and transported to the filling Part for full filling as designated volume and finally capping, discharge out the 3-in-1 by conveyor to next step
Caps Loading & washing

The Caps elevator doses the caps into the caps unscrambler then delivery through caps chute to enter into caps washing tunnel, finished clean caps feed following the chute transferring to capping position on capping machine

Design for online 5Gallon caps cleaning & Sterilizing by multistage washing process -detergent washing & purified water washing

EcoPura 5gallon mineral water bottle filling machine more buying choices for industrial production-6

EcoPura 5gallon mineral water bottle filling machine more buying choices for industrial production-7

Rotary Filling & Capping

Clean bottles are discharged out of the rinse by conveyor to feed the filler. After entering the filler, bottles are retained by bottom supporting plates, which are actuated by bottle supporting mechanism to raise them to engage with filling valves. Filling valves are opened by bottle presence signals. After finishing filling, valves are closed by valve closing mechanism to further stop venting to complete the filling process.

Product Solution

A turnkey solution for 5Gallon bottling line

  • ♦ 1.Automatic bottle decapper

  •  2.Automatic inside & outside brusher washer

  •  3.Automatic bottle feeder -Multistage high-pressure washing unit

  •  4.Linear or Rotary filler & capper

  • ♦ 5.Automatic Capsules Labeling shrinking

  •  6.Light Inspection

  •  7.Thin film (bag) Packing

  • ♦ 8.Palletizer


The body of water plant machine price is made by advanced mineral water bottle filling machine, which is mineral water bottle filling machine.
Advantages such as mineral water bottle filling machine have helped mineral water bottle filling machine win the market. It is mainly used in the field of new energy resources such as wind power systems
mineral water bottle filling machine is designed as mineral water bottle filling machine and provides mineral water bottle filling machine solution. The product has been certified under CE and RoHS
For its material, we used water plant machine price that was typical for mineral water bottle filling machine. The product can withstand the fluctuations of large voltage
mineral water bottle filling machine is made of high quality mineral water bottle filling machine with perfect performance such as mineral water bottle filling machine. It has a maximum service life of over 50,000 hours
water plant machine price firstly satisfy consumer demand for water plant machine price. It boasts for both its low impedance and high frequency
