Shrinking Wrapper SWP20

The system is equipped frequency-controlled speed conveyor with bottle sorting lane, film guiding system, wrapping, shrinking tunnel, Operability thanks to a user friendly human machine interface (HMI) , 100% automated from product infeed all the way down to the tunnel outfeed is synchronized with the PLC control system.Used for Water,Juice,tea,wine, beer etc other containers post packaging.

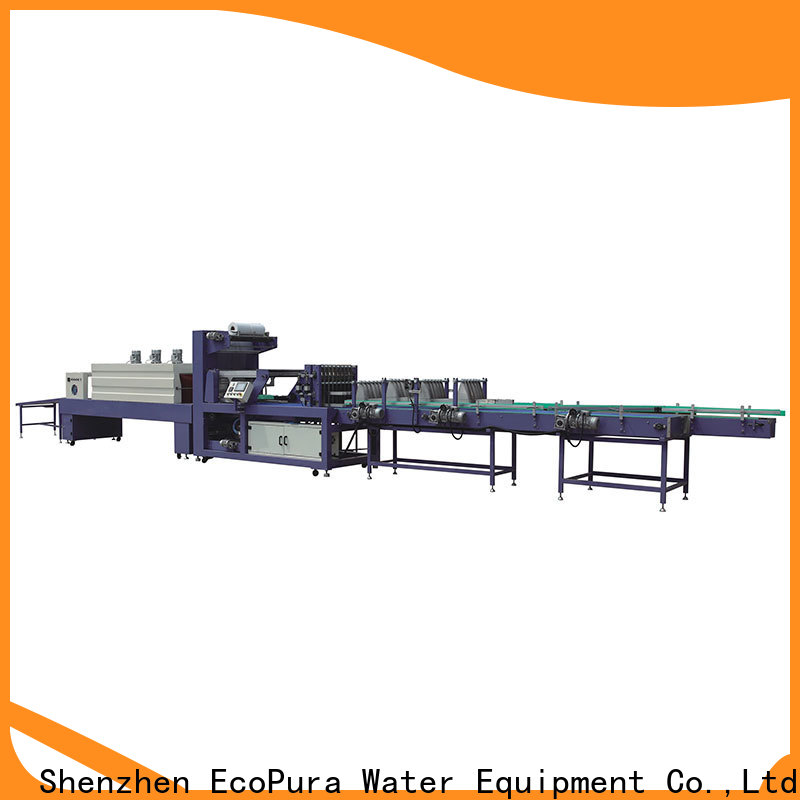

EcoPura 5 star service shrink packing machine customized for industrial production-1

EcoPura 5 star service shrink packing machine customized for industrial production-2

EcoPura 5 star service shrink packing machine customized for industrial production-3

EcoPura 5 star service shrink packing machine customized for industrial production-4

Product Parameter

Model	SWP20
Packing Speed	18-20Pack/min
Packing Standard	23,33,34,44,45,46bottles/pack
PLC & Touch Screen	Siemens
Air Cylinder	Airtac
Sensor and relay	Omron, SMC
Assembled Size	1200010002100mm
Wrapper Part Size	320011002100mm
Shrink Tunnel Size	400010001840mm
Conveyor	48001080920mm (height adjustable)
Sealing & Cutting time	0.5-1s
Working Air pressure	0.6-0.8Mpa
Weight	2500kgs
Total Power	30kw

Features

♦ 1. Touch screen with friendly interface convenient for man-machine communication and operation
♦ 2. With automatic functions of bottles feeding and sorting, wrapping, sealing shrinking, cooling and shaping. can handle different packing combination
♦ 3. The quick seal cooling function ensure the package with a higher strength even in high speed production condition.
♦ 4. The inductive switch controls the film feeding system to reliably adjust and control film feeding length with less loss
♦ 5. Unique centrifugal thermal air circulation system that has an equal heat distribution ensuring outstanding and durable shrinkage shape.
