Product Detail

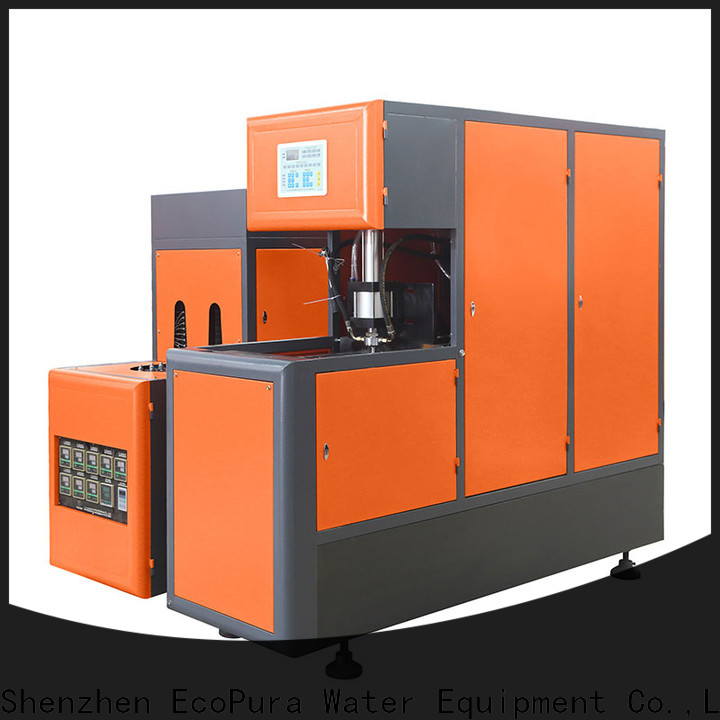

EPC-20L Bottle Blow Molding Machine for 3Gallon to 6Gallon PET bottle

EcoPura 5 star reviews blow moulding process trade partner for b2b-1

Product Parameter

Model	EPC-20L
Mold Cavities	1
Speed	100bph
Bottle Size -Max	20L
Bottle Height	＜600 mm
Bottle Neck	＜200 mm
Bottle Body Diameter	＜400 mm
Working Pressure	1.0kg/cm2
Low Pressure Air Consumption	560L/min
Blowing Air Pressure	12-28kg/cm2
High Pressure Air Consumption	650L/min
Installation Power	70kw
Practical Power	15-40kw
Machine Size	L2.4mW0.7mH1.65m
Weight	1300kgs

Product Specification

♦ Adopting double crank to adjust mould, heavy locking mould, stable and fast, Adopt infrared oven to heat the perform, the perform rotated and heated equally.
♦ The air system has been divided into two parts: Pneumatic action part and bottle blow part to meet the different requirements for the action and blow. It can provide sufficient and steady high pressure for blowing large irregular shaped bottles.
♦ The machine is also equipped with muffler and oiling system to lubricate the mechanical part of the machine.
♦ The machine can be operated in the step-by-step mode and the semi- auto mode.
♦ The machine is small with low investment, easy and safe to operate by one person.

w******q

EcoPura plastic bottle blowing machine is manufactured according to strict quality standards and comply with international safety regulations. Every element of this product is made using only the best materials. It is guaranteed with a superb crosswise and lengthways printing precision

z******m

EcoPura blow moulding process is exclusively designed. Many factors have been taken into considerations, from the circuit diagram to PCB CAD design or PCB layout. The product ensures stable and reliable performance

r******v

The manufacture of EcoPura blow moulding process operates according to international standards in order to be in a position to make realistic and standard-based statements. The product is not easy to rust and is highly resistant to harsh conditions

d******y

EcoPura blow moulding process has passed performance tests and quality assurance tests in the phone accessory industry. It is certified under CCC, CE, UL, and GOST. The product is the fruit of continuous innovation and improvement

d******s

The manufacture of EcoPura plastic bottle blowing machine involves the following stages: medical material and processes specification, vendor selection, detailed part design, software fine-tuning and testing, failure mode analysis, and tolerance analysis. The product is manufactured by an experienced and professional design team

c******n

The quality of the product has been greatly improved since our workers become more and more proficient in the production. The specific operation instruction is offered for the product
