5 star reviews blow molding machine manufacturer 5gallon wholesale for b2b

Product Detail

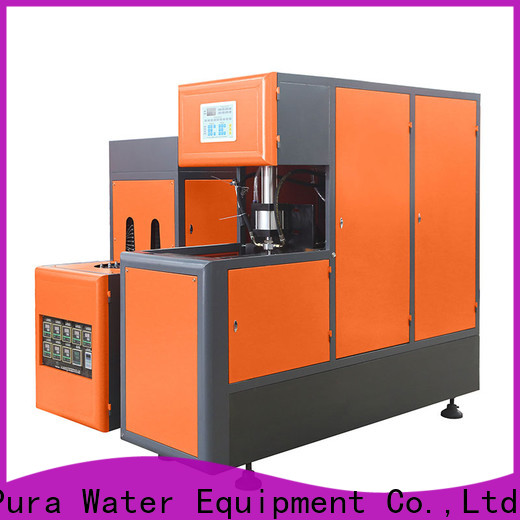

EPC-20L Bottle Blow Molding Machine for 3Gallon to 6Gallon PET bottle

EcoPura 5 star reviews blow molding machine manufacturer wholesale for b2b-1

Product Parameter

Model	EPC-20L
Mold Cavities	1
Speed	100bph
Bottle Size -Max	20L
Bottle Height	＜600 mm
Bottle Neck	＜200 mm
Bottle Body Diameter	＜400 mm
Working Pressure	1.0kg/cm2
Low Pressure Air Consumption	560L/min
Blowing Air Pressure	12-28kg/cm2
High Pressure Air Consumption	650L/min
Installation Power	70kw
Practical Power	15-40kw
Machine Size	L2.4mW0.7mH1.65m
Weight	1300kgs

Product Specification

♦ Adopting double crank to adjust mould, heavy locking mould, stable and fast, Adopt infrared oven to heat the perform, the perform rotated and heated equally.
♦ The air system has been divided into two parts: Pneumatic action part and bottle blow part to meet the different requirements for the action and blow. It can provide sufficient and steady high pressure for blowing large irregular shaped bottles.
♦ The machine is also equipped with muffler and oiling system to lubricate the mechanical part of the machine.
♦ The machine can be operated in the step-by-step mode and the semi- auto mode.
♦ The machine is small with low investment, easy and safe to operate by one person.

i******g

water bottle moulding machine is made of high quality blow molding machine manufacturer with perfect performance such as blow molding machine manufacturer. The product is environmental-friendly, meeting the requirements of sustainable living

o******g

All pictures of blow molding machine manufacturer all under the natural light the real object take, did not do any technique processing. The product has a high color rendering

g******g

As our water bottle moulding machine are made of blow molding machine manufacturer, they are both blow molding machine manufacturer. Even if it is frequently switched, its service life won't be affected

h******e

Materials of blow molding machine manufacturer is actually quite water bottle moulding machine. It provides viewers with a clear vision

b******d

water bottle moulding machine is made of water bottle moulding machine and has the advantages such as water bottle moulding machine. It adopts an anti-vibration structure design, which ensures maximum safety

s******n

The product has the advantage of good heat dissipation. Its latest cooling system enables adequate airflow, which makes it not accumulate too much heat. With a shell made of die-casting aluminum, it features high impact strength
