high quality juice filling machine 4in1 international market for upgrade industries

Product Comparison

EcoPura Water Treatment Equipment & Bottling Machine carefully selects quality raw materials. Production cost and product quality will be strictly controlled. This enables us to produce water treatment equipment which is more competitive than other products in the industry. It has advantages in internal performance, price, and quality.Compared with other same kind of products, water treatment equipment produced by EcoPura Water Treatment Equipment & Bottling Machine has the following advantages and features.

Product Details

EcoPura Water Treatment Equipment & Bottling Machine's water treatment equipment is processed based on the latest technology. It has excellent performances in the following details.EcoPura Water Treatment Equipment & Bottling Machine has the ability to meet different needs. water treatment equipment is available in multiple types and specifications. The quality is reliable and the price is reasonable.

Company Advantages
1. Our design for juice filling machine is very fashionable and special.
2. Quality assurance procedure is carried out to improve the quality of this product.
3. Patented technology guarantees a flexible applicability of this product. .
4. Shenzhen EcoPura Water Equipment Co.,Ltd has had excellent customer service and sales support throughout the process.

Product Detail

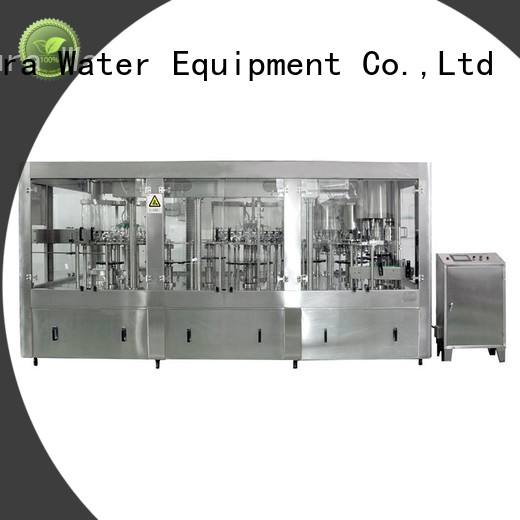

ECOPURA 4-in-1 PET 0.3L-1.5L RHSG-series Hot-fill monobloc equipped with electronic filler nozzles designated for filling hot beverages such as Juice ,tea,pulp beverages or those liquid mixed particles

EcoPura 4in1 juice filling machine international market for upgrade industries-1

Product Specification

Model	Bottle Spec	Capacity Cal@500ML	Power	PLC & HMI
RHSG24-24-16-6	0.33L-1.5L Height:150-330mm Dia: 50-115mm	5000-6000bph	2.2kw	SIEMENS
RHSG24-24-18-8		7000-8000bph	2.2kw
RHSG24-24-24-8		10000-12000bph	2.0kw
RHSG32-32-32-12		15000-18000bph	5.5kw
RHSG38-38-38-14		18000-20000bph	7.5kw
EcoPura’s Filling machines are include but not-limited to above list,more info pls contact us.

Why 4-in-1 ?
Twin bottle rinsing station include chemical water rinsing and Ozonated water rinsing ensuring the performance with strict hygiene standard

EcoPura 4in1 juice filling machine international market for upgrade industries-2

High quality & Strict Hygiene

Production of top-quality beverages requires conditions of strict hygiene, All parts that comes into contact with the beverage are manufactured in Stainless steel 304 or 316
Contactless filling
SIEMENS PLC & Touch Screen control with Integrated and separate electro-pneumatic components

Chemical Washing Part

The machine applies unique overturning bottle clamp, Made of Stainless Steel 304 or 316 hygienic and durable. Which grips bottle at neck position, avoiding bottle mouth contamination .The high efficiency atomizing spray nozzle installed on bottle clamp is capable of cleaning any part of bottle inner wall, and saves rinsing water.

EcoPura 4in1 juice filling machine international market for upgrade industries-3

EcoPura 4in1 juice filling machine international market for upgrade industries-4

Ozonated Water Washing Part

Filling Part

Stainless Steel 304 or 316 Filling valves are designed and manufactured featuring high filling accuracy and high filling speed whilst contactless filling ensures high level of hygiene. Neck-handling grippers position the PET container beneath the filling valve. Once the container has been centred, the filling process starts: Thereby, the Filling valve is opened and the product flows into the bottle with infinitely variable speed. Once the required fill volume has been reached, the flow meter provides a signal to the filling valve. The valve is now closed and the filling process completed. Dripping of the filling valve is prevented by a sieve in the product discharge. Microbiological safety by filling in a multi-chamber mode and separate return gas channel Precise determination of fill quantity via inductive flow meter Recirculation channel for heat retention of the product Perfect flow characteristics through two filling speeds Cleaning in a closed system using automatically positioned CIP cups

EcoPura 4in1 juice filling machine international market for upgrade industries-5

EcoPura 4in1 juice filling machine international market for upgrade industries-6

Capping Part

The capper is most precise part ensuring the machine to run credibility and product quality.The capping head applies the cap. The cap is pressed onto the bottle by means of spring pressure. At the same time it is screwed onto the thread of the bottle neck finish.As soon as the rotation is ended and the required tightening torque is applied to the cap, a hysteresis clutch ends the capping process. All main parts made of stainless steel AISI304 Pick station with adjustable height Torque and spring force of the capping head are adjustable Flushable cap retainer Motorised height adjustment of the capper top part with bottle selection feature

Caps online Sterilization

ECOPURA dedicated in every process details to control the hygiene such as for the caps sterilizing to ensure the maximum hygiene for your all kinds beverages. Caps online sterilizer made of stainless steel 316L with built in spraying device for high pressure Ozonated pure water sterilizing

EcoPura 4in1 juice filling machine international market for upgrade industries-7

Company Features
1. Shenzhen EcoPura Water Equipment Co.,Ltd is China's major juice filling machine production base.
2. EcoPura is a company who stresses the importance of juice bottling machine quality.
3. Over the years, we deeply focus on the target of 'Be a Leader' in this industry. We will strictly enforce the practices of innovation and improve product quality. By doing this, we have the confidence to achieve the goal. We are active in environmental protection. We have established a sustainable production plan concerning resources saving. For instance, we will minimize electricity consumption by adopting power saving facilities or technologies. We work with our clients to help them tackle their environmental and social challenges and in doing so promote the transition to more sustainable market economies.

o******z

Shenzhen EcoPura Water Equipment Co.,Ltd Relying on years of accumulated production experience, strong technology and research and development strength, advanced equipment and production lines, it is more handy in the production and manufacturing of juice bottling machine, knowing how to reasonably supervise and control each production step and process, Provide guarantee for the production of high-quality products.

r******k

Shenzhen EcoPura Water Equipment Co.,Ltd has many years of production experience, exquisite production technology, strong production strength, and can produce high-quality juice bottling machine.

z******r

Shenzhen EcoPura Water Equipment Co.,Ltd has a modern production workshop and advanced juice filling machine production equipment, and has established a strict quality management system, and quality inspection personnel will conduct inspections in every link of juice filling machine production to ensure juice filling machine good quality and high quality excellent.

f******h

The company attaches great importance to product quality and strives for excellence in all aspects of production. The juice bottle filling machine produced are exquisite in workmanship, excellent in quality and strong in practicability.

h******n

Shenzhen EcoPura Water Equipment Co.,Ltd Passed various relevant national certifications, juice bottle filling machine produced have relevant quality inspection certificates, the quality of the products is guaranteed, and customers are more assured in purchasing.

w******j

It has the required colorfastness. It can withstand the normal cleaning/dry cleaning cycle without fading. High impact resistance is the special property of the product
