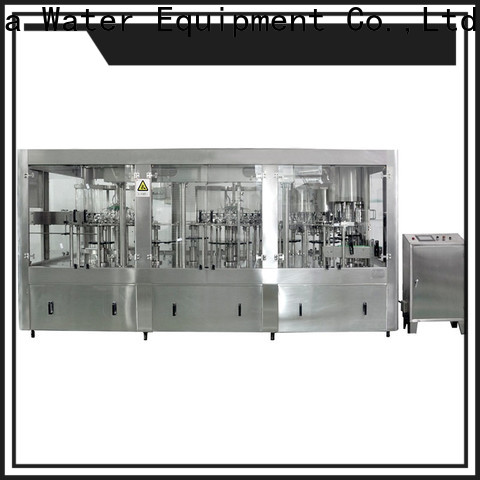

ECOPURA 3-in-1 PET 0.3L-1.5L RHSG-series Hot-fill monobloc equipped with electronic filler nozzles designated for filling hot beverages such as Juice ,tea,pulp beverages or those liquid mixed particles

EcoPura 4in1 juice filling machine international market for trader-1

Product Specification

Model	Bottle Spec	Capacity Cal@500ML	Power	PLC & HMI
DHSG16-16-12-6	0.33L-1.5L Height:150-330mm Dia: 50-115mm	3000-3500bph	1.8kw	SIEMENS
DHSG24-24-16-6		4000-5000bph	2.2kw
DHSG24-24-18-8		5000-6000bph	2.2kw
DHSG24-24-8		8000-9000bph	3.0kw
DHSG32-32-32-12		10000-12000bph	5.5kw
DHSG38-38-38-14		12000-15000bph	7.5kw
EcoPura’s Filling machines are include but not-limited to above list,more info pls contact us.

EcoPura 4in1 juice filling machine international market for trader-2

High quality & Strict Hygiene

Production of top-quality beverages requires conditions of strict hygiene, All parts that comes into contact with the beverage are manufactured in Stainless steel 304 or 316
Contactless filling
SIEMENS PLC & Touch Screen control with Integrated and separate electro-pneumatic components

Washing Part

The machine applies unique overturning bottle clamp, Made of Stainless Steel 304 or 316 hygienic and durable. Which grips bottle at neck position, avoiding bottle mouth contamination. The high efficiency atomizing spray nozzle installed on bottle clamp is capable of cleaning any part of bottle inner wall, and saves rinsing water.

EcoPura 4in1 juice filling machine international market for trader-3

EcoPura 4in1 juice filling machine international market for trader-4

Filling Part

Stainless Steel 304 or 316 Filling valves are designed and manufactured featuring high filling accuracy and high filling speed whilst contactless filling ensures high level of hygiene.Neck-handling grippers position the PET container beneath the filling valve. Once the container has been centred, the filling process starts: Thereby, the Filling valve is opened and the product flows into the bottle with infinitely variable speed. Once the required fill volume has been reached, the flow meter provides a signal to the filling valve. The valve is now closed and the filling process completed. Dripping of the filling valve is prevented by a sieve in the product discharge. Microbiological safety by filling in a multi-chamber mode and separate return gas channel Precise determination of fill quantity via inductive flow meter Recirculation channel for heat retention of the product Perfect flow characteristics through two filling speeds Cleaning in a closed system using automatically positioned CIP cups

Capping Part

The capper is most precise part ensuring the machine to run credibility and product quality.The capping head applies the cap. The cap is pressed onto the bottle by means of spring pressure. At the same time it is screwed onto the thread of the bottle neck finish. As soon as the rotation is ended and the required tightening torque is applied to the cap, a hysteresis clutch ends the capping process. All main parts made of stainless steel AISI304 Pick station with adjustable height Torque and spring force of the capping head are adjustable Flushable cap retainer Motorised height adjustment of the capper top part with bottle selection feature

EcoPura 4in1 juice filling machine international market for trader-5

EcoPura 4in1 juice filling machine international market for trader-6

Caps online Sterilization

ECOPURA dedicated in every process details to control the hygiene such as for the caps sterilizing to ensure the maximum hygiene for your all kinds beverages. Caps online sterilizer made of stainless steel 316L with built in spraying device for high pressure Ozonated pure water sterilizing

i******o

The design of EcoPura bottling juice equipment involves several factors. These factors include part tolerances, size limitations, materials selection, mechanical analysis, function realization, etc. Customized catalogs and brochures related to the product are available

s******k

The workmanship of EcoPura bottling juice equipment requires particular skills of machinists. It has to be welded, stamped, and brazed by professional workers, and its parts are put together and fastened by hands during assembly. It is equipped with a digital transfer device, ensuring a fast transmission speed

o******b

EcoPura juice filling machine is manufactured in line with industrial standards. Its plug, electric cords, and socket are made complying with the local electricity supply system. It is made based on the national explosion-proof standard

a******n

EcoPura juice filling machine is manufactured by taking an array of regulatory compliance into considerations, including electrical safety, electromagnetic compatibility (EMC) and the chemical composition of materials. It has an excellent nonlinearity correction function

n******k

EcoPura bottling juice equipment meets electrical international standards. They generally include IEC 60038 (IEC standard voltages) and IEC60076 (Power transformers).

t******h

This product has certain air permeability. It provides a tunnel for the skin to exchange air with the outside world. In the meantime, it contributes to the divergence of human heat. This product has certain air permeability. It provides a tunnel for the skin to exchange air with the outside world. In the meantime, it contributes to the divergence of human heat. Supporting low-voltage broadband pulse transmission, it features low consumption
