standard juice filling equipment 4in1 international market for trader

Product Comparison

EcoPura Water Treatment Equipment & Bottling Machine is certified by various qualifications. We have advanced production technology and great production capability. bottle filling machine has many advantages such as reasonable structure, excellent performance, good quality, and affordable price.Compared with other products in the industry, bottle filling machine has more obvious advantages which are reflected in the following aspects.

Application Scope

EcoPura Water Treatment Equipment & Bottling Machine's water treatment equipment has been widely used in many industries.EcoPura Water Treatment Equipment & Bottling Machine is rich in industrial experience and is sensitive about customers' needs. We can provide comprehensive and one-stop solutions based on customers' actual situations.

Company Advantages
1. EcoPura tea filling machine is professionally designed. The contents of its design include appearance design, control system design, mechanisms design, components structure design, etc.
2. The product is safe in use. It is built with the proper safety devices in place, including an emergency stop button and curtain guards.
3. Shenzhen EcoPura Water Equipment Co.,Ltd can help to identify clients' needs and circumstances.
4. During the entire production process, Shenzhen EcoPura Water Equipment Co.,Ltd conducts quality control system to ensure quality.

Product Detail

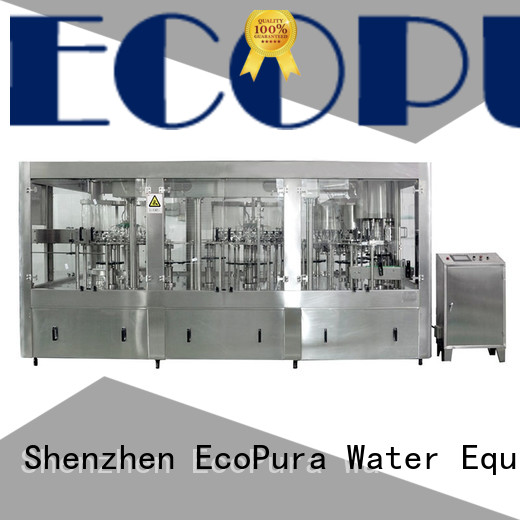

ECOPURA 4-in-1 PET 0.3L-1.5L RHSG-series Hot-fill monobloc equipped with electronic filler nozzles designated for filling hot beverages such as Juice ,tea,pulp beverages or those liquid mixed particles

EcoPura 4in1 juice filling equipment international market for trader-1

Product Specification

Model	Bottle Spec	Capacity Cal@500ML	Power	PLC & HMI
RHSG24-24-16-6	0.33L-1.5L Height:150-330mm Dia: 50-115mm	5000-6000bph	2.2kw	SIEMENS
RHSG24-24-18-8		7000-8000bph	2.2kw
RHSG24-24-24-8		10000-12000bph	2.0kw
RHSG32-32-32-12		15000-18000bph	5.5kw
RHSG38-38-38-14		18000-20000bph	7.5kw
EcoPura’s Filling machines are include but not-limited to above list,more info pls contact us.

Why 4-in-1 ?
Twin bottle rinsing station include chemical water rinsing and Ozonated water rinsing ensuring the performance with strict hygiene standard

EcoPura 4in1 juice filling equipment international market for trader-2

High quality & Strict Hygiene

Production of top-quality beverages requires conditions of strict hygiene, All parts that comes into contact with the beverage are manufactured in Stainless steel 304 or 316
Contactless filling
SIEMENS PLC & Touch Screen control with Integrated and separate electro-pneumatic components

Chemical Washing Part

The machine applies unique overturning bottle clamp, Made of Stainless Steel 304 or 316 hygienic and durable. Which grips bottle at neck position, avoiding bottle mouth contamination .The high efficiency atomizing spray nozzle installed on bottle clamp is capable of cleaning any part of bottle inner wall, and saves rinsing water.

EcoPura 4in1 juice filling equipment international market for trader-3

EcoPura 4in1 juice filling equipment international market for trader-4

Ozonated Water Washing Part

Filling Part

Stainless Steel 304 or 316 Filling valves are designed and manufactured featuring high filling accuracy and high filling speed whilst contactless filling ensures high level of hygiene. Neck-handling grippers position the PET container beneath the filling valve. Once the container has been centred, the filling process starts: Thereby, the Filling valve is opened and the product flows into the bottle with infinitely variable speed. Once the required fill volume has been reached, the flow meter provides a signal to the filling valve. The valve is now closed and the filling process completed. Dripping of the filling valve is prevented by a sieve in the product discharge. Microbiological safety by filling in a multi-chamber mode and separate return gas channel Precise determination of fill quantity via inductive flow meter Recirculation channel for heat retention of the product Perfect flow characteristics through two filling speeds Cleaning in a closed system using automatically positioned CIP cups

EcoPura 4in1 juice filling equipment international market for trader-5

EcoPura 4in1 juice filling equipment international market for trader-6

Capping Part

The capper is most precise part ensuring the machine to run credibility and product quality.The capping head applies the cap. The cap is pressed onto the bottle by means of spring pressure. At the same time it is screwed onto the thread of the bottle neck finish.As soon as the rotation is ended and the required tightening torque is applied to the cap, a hysteresis clutch ends the capping process. All main parts made of stainless steel AISI304 Pick station with adjustable height Torque and spring force of the capping head are adjustable Flushable cap retainer Motorised height adjustment of the capper top part with bottle selection feature

Caps online Sterilization

ECOPURA dedicated in every process details to control the hygiene such as for the caps sterilizing to ensure the maximum hygiene for your all kinds beverages. Caps online sterilizer made of stainless steel 316L with built in spraying device for high pressure Ozonated pure water sterilizing

EcoPura 4in1 juice filling equipment international market for trader-7

Company Features
1. Shenzhen EcoPura Water Equipment Co.,Ltd is a company that integrates juice filling equipment development, market development, manufacturing and sales.
2. The quality of tea filling machine has been rigorously tested to maintain customer satisfaction.
3. Shenzhen EcoPura Water Equipment Co.,Ltd aims to lead juice bottling machine industry. Get quote! Shenzhen EcoPura Water Equipment Co.,Ltd regards creating world-known brand as our ultimate goal. Get quote!

o******x

EcoPura tea filling machine is finely processed by using well-selected materials and the advanced production techniques.

p******y

EcoPura juice bottling machine is exquisitely designed from a group of innovative designers.

s******s

By using the finest materials, advanced production method, the workmanship of EcoPura juice bottling machine is at a cutting-edge of the industry.

b******t

EcoPura tea filling machine has a user-friendly design featuring both functionality and aesthetics.

h******y

EcoPura tea filling machine is strictly manufactured in line with the production procedure.

h******m

juice bottling machine Exquisite material selection, excellent workmanship, stable structure, safe use, strong and durable, has the advantages of anti-wear and pressure resistance, corrosion resistance, strong bearing capacity, etc., and is not easy to be damaged or deformed even if it is used for a long time.
