high quality juice bottling machine 4in1 international market for distribution

Company Advantages
1. EcoPura juice bottling machine has to be processed with fine finishing so as to eliminate the impurities to further develop its full gloss potential. It can be configured in a straight line or in an L-shaped configuration
2. The product can meet the various needs of application because of its critical characteristics. The product has been certified under UL and CE
3. The product features uniform quality of air circulation. The atmospheric temperature and relative humidity have been homogenized to keep it reasonably uniform. The use of this product helps in increasing the production of drinks
4. The product features tear resistance. It can withstand tearing and rough force transmission and won't be destroyed in severe conditions. The product is carefully designed with all NSF approved components
5. The screen of this product features high resolution. Adopting the backlight technology in LCD production, the screen of this product generates little or no flicker. The product is able to provide a great purifying effect

Product Detail

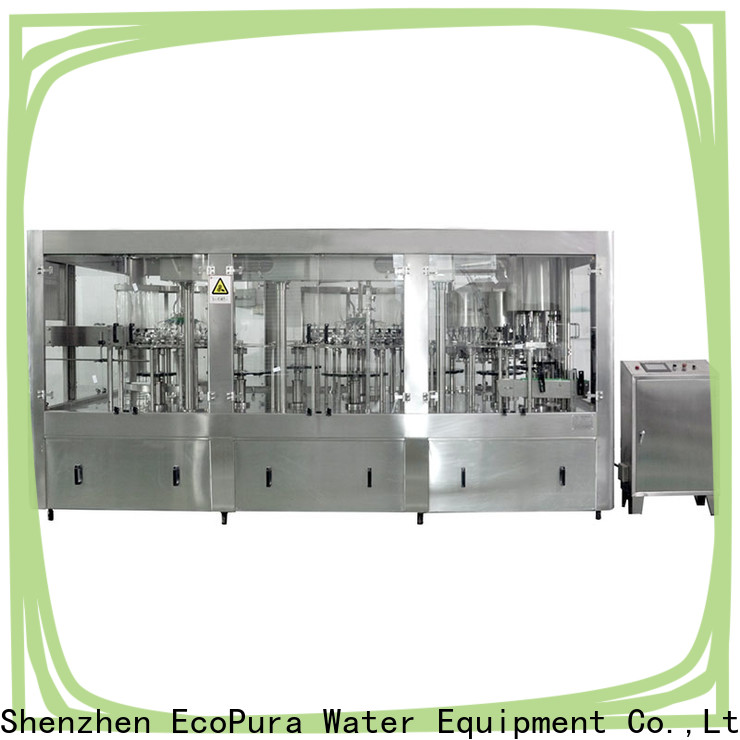

ECOPURA 3-in-1 PET 0.3L-1.5L RHSG-series Hot-fill monobloc equipped with electronic filler nozzles designated for filling hot beverages such as Juice ,tea,pulp beverages or those liquid mixed particles

EcoPura 4in1 juice bottling machine international market for distribution-1

Product Specification

Model	Bottle Spec	Capacity Cal@500ML	Power	PLC & HMI
DHSG16-16-12-6	0.33L-1.5L Height:150-330mm Dia: 50-115mm	3000-3500bph	1.8kw	SIEMENS
DHSG24-24-16-6		4000-5000bph	2.2kw
DHSG24-24-18-8		5000-6000bph	2.2kw
DHSG24-24-8		8000-9000bph	3.0kw
DHSG32-32-32-12		10000-12000bph	5.5kw
DHSG38-38-38-14		12000-15000bph	7.5kw
EcoPura’s Filling machines are include but not-limited to above list,more info pls contact us.

EcoPura 4in1 juice bottling machine international market for distribution-2

High quality & Strict Hygiene

Production of top-quality beverages requires conditions of strict hygiene, All parts that comes into contact with the beverage are manufactured in Stainless steel 304 or 316
Contactless filling
SIEMENS PLC & Touch Screen control with Integrated and separate electro-pneumatic components

Washing Part

The machine applies unique overturning bottle clamp, Made of Stainless Steel 304 or 316 hygienic and durable. Which grips bottle at neck position, avoiding bottle mouth contamination. The high efficiency atomizing spray nozzle installed on bottle clamp is capable of cleaning any part of bottle inner wall, and saves rinsing water.

EcoPura 4in1 juice bottling machine international market for distribution-3

EcoPura 4in1 juice bottling machine international market for distribution-4

Filling Part

Stainless Steel 304 or 316 Filling valves are designed and manufactured featuring high filling accuracy and high filling speed whilst contactless filling ensures high level of hygiene.Neck-handling grippers position the PET container beneath the filling valve. Once the container has been centred, the filling process starts: Thereby, the Filling valve is opened and the product flows into the bottle with infinitely variable speed. Once the required fill volume has been reached, the flow meter provides a signal to the filling valve. The valve is now closed and the filling process completed. Dripping of the filling valve is prevented by a sieve in the product discharge. Microbiological safety by filling in a multi-chamber mode and separate return gas channel Precise determination of fill quantity via inductive flow meter Recirculation channel for heat retention of the product Perfect flow characteristics through two filling speeds Cleaning in a closed system using automatically positioned CIP cups

Capping Part

The capper is most precise part ensuring the machine to run credibility and product quality.The capping head applies the cap. The cap is pressed onto the bottle by means of spring pressure. At the same time it is screwed onto the thread of the bottle neck finish. As soon as the rotation is ended and the required tightening torque is applied to the cap, a hysteresis clutch ends the capping process. All main parts made of stainless steel AISI304 Pick station with adjustable height Torque and spring force of the capping head are adjustable Flushable cap retainer Motorised height adjustment of the capper top part with bottle selection feature

EcoPura 4in1 juice bottling machine international market for distribution-5

EcoPura 4in1 juice bottling machine international market for distribution-6

Caps online Sterilization

ECOPURA dedicated in every process details to control the hygiene such as for the caps sterilizing to ensure the maximum hygiene for your all kinds beverages. Caps online sterilizer made of stainless steel 316L with built in spraying device for high pressure Ozonated pure water sterilizing

Company Features
1. Relying on superior quality and excellent service, our products are selling well in the American, Japanese, and the Middle East markets. At the moment, we are expanding more foreign markets.
2. We strive to build trust with society through our efforts to operate with high values and integrity and to find new ways to expand customers' access to our products and services.

j******f

From the materials to designs, EcoPura juice bottling machine is totally guaranteed by our professional expertise. It is resistant to breakage with its sturdy frame

e******p

EcoPura juice bottling machine is designed with a trendy and aesthetically-appealing look. The product has the merit of full traceability

f******q

EcoPura juice filling machine price is designed with an innovative and attractive appearance. The product is highly automatic and controllable

v******l

EcoPura juice filling machine price is designed with an aesthetically-pleasing look that sets it apart from the ordinary. The product is easy to install, which greatly save human resources

s******r

EcoPura juice filling machine price is manufactured as per the current industry standards. It is resistant to breakage with its sturdy frame

t******y

juice filling machine price The design is scientific and reasonable, the structure is tight and compact, the practicability is strong, the safety is high, it has the characteristics of anti-corrosion and wear resistance, strong self-cleaning ability, long service life, stable quality and high quality.
