Company Advantages1. The design of EcoPura soda filling machine is market-based and meet the needs of users: appealing appearance, high sensitivity, and multiple applications. The design is conducted by our professional R&D team.
2. The product is resistant to the corrosive medium, including alkali and salt. It has been treated with plating and painting to enhance its chemical corrosion resistance.
3. The product has precise dimensions. All its parts sizes, form error, and position error will be measured by specific measuring tools.
4. By consistently developing the performance of drink filling machine, EcoPura has got wide recognition for its high quality products at home and abroad.
5. Shenzhen EcoPura Water Equipment Co.,Ltd's pursuit: the-art technology, exquisite craft, reliable quality, favorable price and sincere service.

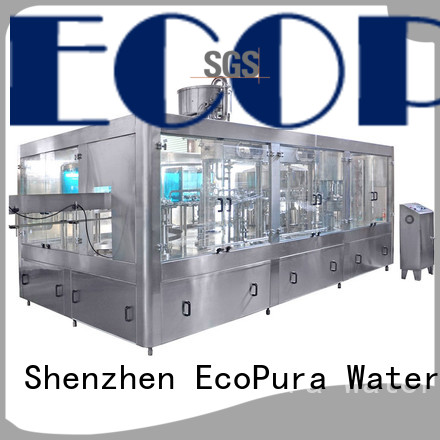

ECOPURA 3-in-1 PET 0.3L-1.5L DHSG-series monobloc equipped with isobaric filler nozzles designated for filling carbonated beverages such as Cola, beer, carbonated water and other liquids etc
Model |
Bottle Spec |
Capacity Cal@500ML | Power | PLC & HMI |
DHSG16-12-6 | 0.33L-1.5L
Height:150-330mm
Dia: 50-115mm |
3000-3500bph |
1.8kw | SIEMENS |
DHSG24-16-6 | 4000-5000bph | 2.2kw |
DHSG24-18-8 | 5000-6000bph | 2.2kw |
DHSG24-24-8 | 8000-9000bph | 3.0kw |
DHSG32-32-12 | 10000-12000bph | 5.5kw |
DHSG38-38-14 | 12000-15000bph | 7.5kw |
EcoPura’s Filling machines are include but not-limited to above list,more info pls contact us. |
High quality & Strict Hygiene
Production of top-quality beverages requires conditions of strict hygiene, All parts that comes into contact with the beverage are manufactured in Stainless steel 304 or 316
Contactless filling
SIEMENS PLC & Touch Screen control with Integrated and separate electro-pneumatic components
The machine applies unique overturning bottle clamp, Made of Stainless Steel 304 or 316. hygienic and durable. Which grips bottle at neck position, avoiding bottle mouth contamination. The high efficiency atomizing spray nozzle installed on bottle clamp is capable of cleaning any part of bottle inner wall, and saves rinsing water.
Filling Part
Stainless Steel 304 or 316 Filling valves are designed and manufactured featuring high filling accuracy and high filling speed whilst contactless filling ensures high level of hygiene.The PET container is first pressed on by the PET lifting unit and pressurised afterwards. Once the same pressure is in the ring bowl and the PET container, the filling valve will be opened and the filling process starts. The liquid is gently fed via a swirl insert into the bottle. Two different filling speeds guarantee optimum flow behaviour. A flow meter monitors the fed liquid quantity. Once the exact filling volume has been reached, the flow meter provides a signal and the valve closes electro pneumatically Maximum flexibility − Filling of non-carbonated and carbonated products on one system Maximum filling accuracy − Precise determination of fill quantity via inductive flow meter Gentle product treatment during filling − Low-foam and low-turbulence filling vias wirl insert in the valve
Hygiene and stable filling processes − Separate gas channels for pressurization and snifting
ECOPURA filling machines in their standard version are suitable for CIP and beverage mixer
Capping Part
The capper is most precise part ensuring the machine to run credibility and product quality.
The capping head applies the cap. The cap is pressed onto the bottle by means of spring pressure. At the same time it is screwed onto the thread of the bottle neck finish. As soon as the rotation is ended and the required tightening torque is applied to the cap, a hysteresis clutch ends the capping process.
All main parts made of stainless steel AISI304
Pick station with adjustable height
Torque and spring force of the capping head are adjustable
Flushable cap retainer
Motorised height adjustment of the capper top part with bottle selection feature
Caps online Sterilization
ECOPURA dedicated in every process details to control the hygiene such as for the caps sterilizing to ensure the maximum hygiene for your all kinds beverages. Caps online sterilizer made of stainless steel 316L with built in spraying device for high pressure Ozonated pure water sterilizing
Shenzhen EcoPura Water Equipment Co.,Ltd's production ability for soda filling machine is in a leading position in the domestic market.
2. Shenzhen EcoPura Water Equipment Co.,Ltd has perfect quality control system and high-quality workforce.
3. We handle all logistical issues as well, from import/export procedures to legal clearances, to customs processing - all customers will do is to sign to accept the final delivery. We are proud to offer the best transportation and transportation time in the industry. Contact! We will continue to improve the quality of our products and services to increase customer satisfaction and maintain our position as the world's leading manufacturer of high-quality products. Contact! Central to the company's philosophy is the practice of working as closely with our business partners and end-users as possible, listening to their needs, thoughts, and wishes and understanding their markets and requirements. We have a simple goal: to ensure a process that works seamlessly so that we can constantly create long-term financial, physical and social value.
