EcoPura 4in1 csd filling machine wholesale for sale

EcoPura 4in1 csd filling machine wholesale for sale
  • EcoPura 4in1 csd filling machine wholesale for sale
  • EcoPura 4in1 csd filling machine wholesale for sale
  • EcoPura 4in1 csd filling machine wholesale for sale
  • EcoPura 4in1 csd filling machine wholesale for sale
  • EcoPura 4in1 csd filling machine wholesale for sale
  • EcoPura 4in1 csd filling machine wholesale for sale
  • EcoPura 4in1 csd filling machine wholesale for sale
  • EcoPura 4in1 csd filling machine wholesale for sale

EcoPura 4in1 csd filling machine wholesale for sale

EcoPura soda filling machine has a professional design. It is created by professionals who understand the fundamentals of designing the most commonly used parts, elements, and units of various machines.
Inquire Online
Get the latest price
Quantity Needed:
Pieces
E-mail:
Application Scope
EcoPura Water Treatment Equipment & Bottling Machine's bottle filling machine can be used in many industries.Guided by the actual needs of customers, EcoPura Water Treatment Equipment & Bottling Machine provides comprehensive, perfect and quality solutions based on the benefit of customers.
Company Advantages
1. EcoPura soda filling machine has a professional design. It is created by professionals who understand the fundamentals of designing the most commonly used parts, elements, and units of various machines.
2. The product has high performance reliability and relatively long service life.
3. This product brings many economic benefits to customers and is believed to be more widely used in the market.
4. All our csd filling machine has passed relative international certificates.
Product Detail

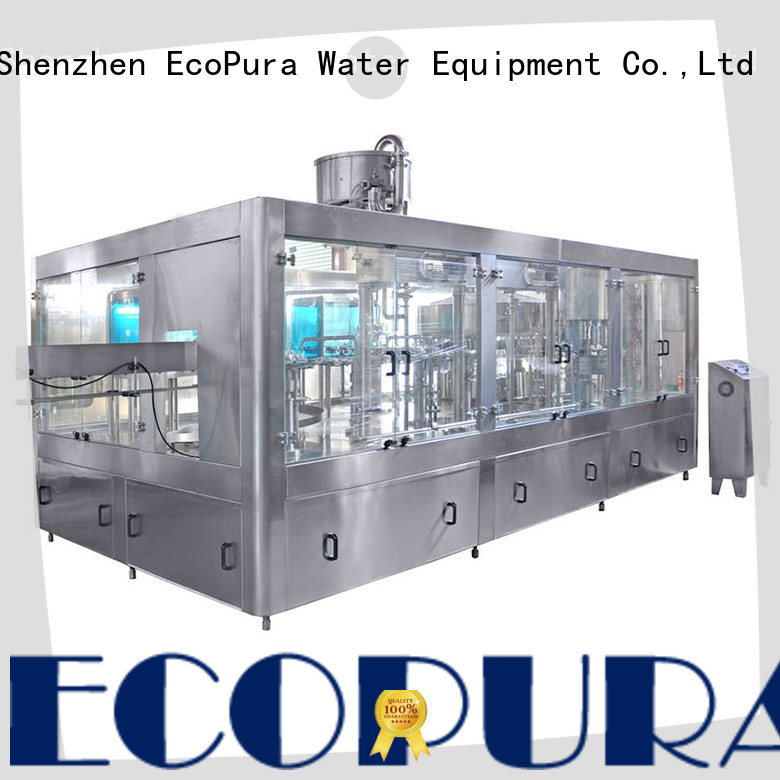

ECOPURA 4-in-1 PET 0.3L-1.5L DHSG-series monobloc equipped with isobaric filler nozzles designated for filling carbonated beverages such as Cola, beer, carbonated water and other liquids etc


EcoPura 4in1 csd filling machine wholesale for sale-1

Product Specification

Model

Bottle Spec

Capacity Cal@500ML

Power

PLC & HMI

DHSG16-16-12-6

0.33L-1.5L
Height:150-330mm
Dia: 50-115mm

3000-3500bph

1.8kw

SIEMENS

DHSG24-24-16-6

4000-5000bph

2.2kw

DHSG24-24-18-8

5000-6000bph

2.2kw

DHSG24-24-24-8

8000-9000bph

3.0kw

DHSG32-32-32-12

10000-12000bph

5.5kw

DHSG38-38-38-14

12000-15000bph

7.5kw

EcoPura’s Filling machines are include but not-limited to above list,more info pls contact us.

EcoPura 4in1 csd filling machine wholesale for sale-2

High quality & Strict Hygiene
Production of top-quality beverages requires conditions of strict hygiene, All parts that comes into contact with the beverage are manufactured in Stainless steel 304 or 316 Contactless filling SIEMENS PLC & Touch Screen control with Integrated and separate electro-pneumatic components

Chemical Washing Part

The machine applies unique overturning bottle clamp, Made of Stainless Steel 304 or 316 hygienic and durable. Which grips bottle at neck position, avoiding bottle mouth contamination The high efficiency atomizing spray nozzle installed on bottle clamp is capable of cleaning any part of bottle inner wall, and saves rinsing water.

EcoPura 4in1 csd filling machine wholesale for sale-3

EcoPura 4in1 csd filling machine wholesale for sale-4

Ozonated water Washing Part

The machine applies unique overturning bottle clamp, Made of Stainless Steel 304 or 316 hygienic and durable. Which grips bottle at neck position, avoiding bottle mouth contamination The high efficiency atomizing spray nozzle installed on bottle clamp is capable of cleaning any part of bottle inner wall, and saves rinsing water.

Filling Part
Stainless Steel 304 or 316 Filling valves are designed and manufactured featuring high filling accuracy and high filling speed whilst contactless filling ensures high level of hygiene. The PET container is first pressed on by the PET lifting unit and pressurised afterwards. Once the same pressure is in the ring bowl and the PET container, the filling valve will be opened and the filling process starts. The liquid is gently fed via a swirl insert into the bottle. Two different filling speeds guarantee optimum flow behaviour. A flow meter monitors the fed liquid quantity. Once the exact filling volume has been reached, the flow meter provides a signal and the valve closes electro pneumatically Maximum flexibility − Filling of non-carbonated and carbonated products on one system Maximum filling accuracy − Precise determination of fill quantity via inductive flow meter Gentle product treatment during filling − Low-foam and low-turbulence filling vias wirl insert in the valve Hygiene and stable filling processes − Separate gas channels for pressurization and snifting ECOPURA filling machines in their standard version are suitable for CIP and beverage mixer

EcoPura 4in1 csd filling machine wholesale for sale-5

EcoPura 4in1 csd filling machine wholesale for sale-6

Capping Part
The capper is most precise part ensuring the machine to run credibility and product quality. The capping head applies the cap. The cap is pressed onto the bottle by means of spring pressure. At the same time it is screwed onto the thread of the bottle neck finish. As soon as the rotation is ended and the required tightening torque is applied to the cap, a hysteresis clutch ends the capping process. All main parts made of stainless steel AISI304 Pick station with adjustable height Torque and spring force of the capping head are adjustable Flushable cap retainer Motorised height adjustment of the capper top part with bottle selection feature
Caps online Sterilization
ECOPURA dedicated in every process details to control the hygiene such as for the caps sterilizing to ensure the maximum hygiene for your all kinds beverages. Caps online sterilizer made of stainless steel 316L with built in spraying device for high pressure Ozonated pure water sterilizing

EcoPura 4in1 csd filling machine wholesale for sale-7


Company Features
1. Shenzhen EcoPura Water Equipment Co.,Ltd is an enterprise integrating R&D, production and trade. We have years of experience in the manufacturing of soda filling machine .
2. Our products are widely accepted by clients all over the world. Our main export markets include Britain, America, France, Spain, Turkey, Canada, Australia, and the Middle East.
3. EcoPura has been sticking to the principle of customer first. Contact! Shenzhen EcoPura Water Equipment Co.,Ltd will provide the market with high quality csd filling machine . Contact! To achieve the goal of being an influential carbonated soft drinks filling machine supplier, Shenzhen EcoPura Water Equipment Co.,Ltd strives to serve customers with their best service. Contact!
EcoPura carbonated soft drinks filling machine meets domestic standards for mechanical devices. It is manufactured in line with requirements for different aspects of GB/T and JB/T. This product has been certified under CE, FDA, CPSR, and RoHS
The mechanical components of EcoPura carbonated soft drinks filling machine are manufactured in virtue of many high technologies. They are produced under highly precise machines, including CNC machines, electroplating spraying equipment, and surface polishing machines. This product is virtually hassle-free for anyone looking to whiten their teeth
Strict quality inspection on EcoPura csd filling machine will be conducted. It is required to pass the quality standards such as RoHS, REACH, MSDS in the battery industry. Since it is peroxide-free and fluoride-free, it is friendly to just about everyone's teeth
Before delivery, the quality assurance testing of EcoPura soda filling machine must be completed. It is ensured a better performance during start-up and commissioning. This product has a neutral pH, which means it will be gentle on gums and tooth enamel
The design of EcoPura soda filling machine is professionally completed. many factors have been taken into considerations such as flexibility, cycle times, running time, operating temperatures, tolerances, size precision, etc. This product is easy to clean and can be used many times
Under the strict supervision of quality experts, 100% of the products have passed the conformance test. This product is easy to use and doesn’t require a prescription
