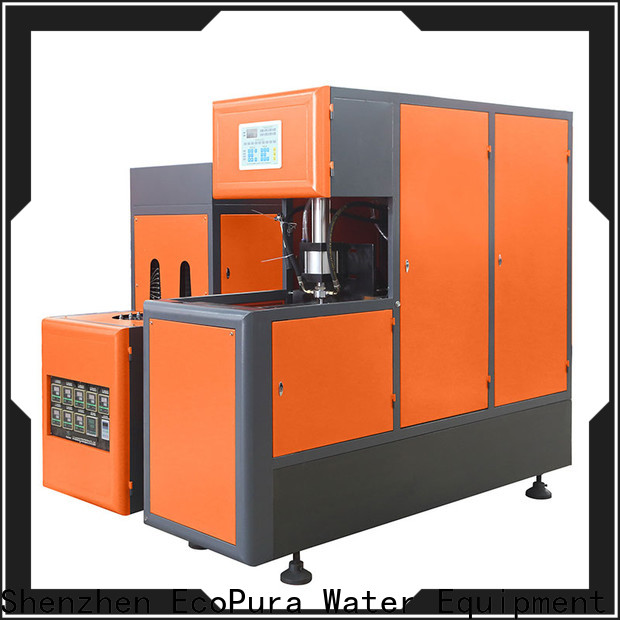

EPC-20L Bottle Blow Molding Machine for 3Gallon to 6Gallon PET bottle

EcoPura 3l6l blow molding machine awarded supplier for an importer-1

Product Parameter

Model	EPC-20L
Mold Cavities	1
Speed	100bph
Bottle Size -Max	20L
Bottle Height	＜600 mm
Bottle Neck	＜200 mm
Bottle Body Diameter	＜400 mm
Working Pressure	1.0kg/cm2
Low Pressure Air Consumption	560L/min
Blowing Air Pressure	12-28kg/cm2
High Pressure Air Consumption	650L/min
Installation Power	70kw
Practical Power	15-40kw
Machine Size	L2.4mW0.7mH1.65m
Weight	1300kgs

Product Specification

♦ Adopting double crank to adjust mould, heavy locking mould, stable and fast, Adopt infrared oven to heat the perform, the perform rotated and heated equally.
♦ The air system has been divided into two parts: Pneumatic action part and bottle blow part to meet the different requirements for the action and blow. It can provide sufficient and steady high pressure for blowing large irregular shaped bottles.
♦ The machine is also equipped with muffler and oiling system to lubricate the mechanical part of the machine.
♦ The machine can be operated in the step-by-step mode and the semi- auto mode.
♦ The machine is small with low investment, easy and safe to operate by one person.

w******w

EcoPura moulding machine is manufactured using a variety of processes. That is, through mechanical drawing, stamping, painting, drying, polishing, testing, and assembly.

b******n

EcoPura moulding machine is of high quality. It is precision treated in manufacturing to eliminate any defects, including porosity, cracks, and roughness.

w******v

There are many important considerations in the design of EcoPura blow molding machine. They are the type of load and stresses caused by the load, motion of parts, form and size of the parts, etc.

e******o

The check for EcoPura blow molding machine is strictly executed. All its components are thoroughly inspected for dimension specification and chemical composition.

b******i

The design of EcoPura moulding machine is sophisticated. It involves the application of such subjects as thermodynamics, electrical theory, hydraulics, engines, and pumps.

l******v

Superior moulding machine and remarkable moulding machine creates EcoPura.
