unbeatable price mineral water filling machine 3l10l international trader for factory

Company Advantages
1. Our professional designers can provide help in designing mineral water filling machine. The product can enhance the speed, accuracy, and efficiency of workers
2. The product has attracted a large number of customers, prove to be a hot product in the market. Its parts are all made of CNC machines, which features high accuracy
3. One of the factors contributing to the popularity of this product is its excellent quality and strong reliability. The product is easy to clean with no blind corners

Product Detail

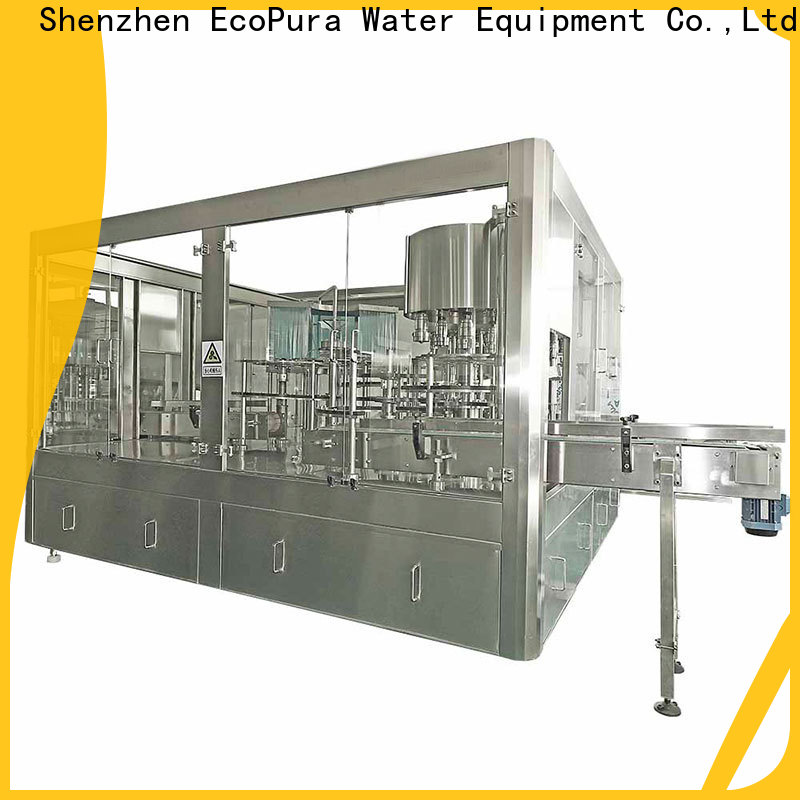

ECOPURA 4-in-1 PET 3L-10L HSG-series monobloc equipped with overflow filler nozzles designated for filling non-carbonated beverages such as pure or mineral, still water and other liquids etc

EcoPura 3l10l mineral water filling machine international trader for factory-1

Product Parameter

Model	Bottle Spec	Capacity Cal@5L	Power	PLC & HMI
HSG10-10-5	3L-10L	1200-1500bph	2.2kw	SIEMENS
HSG12-12-5		1500-2000bph	3.0kw
HSG14-14-5		2000-2500bph	4.0kw
HSG16-16-5		2500-3000bph	5.5kw
EcoPura’s Filling machines are include but not-limited to above list,more info pls contact us.

Why 4-in-1 ?
Twin bottle rinsing station include chemical water rinsing and Ozonated water rinsing ensuring the performance with strict hygiene standard
EcoPura’s Filling machines are include but not-limited to above list,more info pls contact us.

EcoPura 3l10l mineral water filling machine international trader for factory-2

High quality & Strict Hygiene

Production of top-quality beverages requires conditions of strict hygiene, All parts that comes into contact with the beverage are manufactured in Stainless steel 304 or 316
Contactless filling
SIEMENS PLC & Touch Screen control with Integrated and separate electro-pneumatic components

Chemical Washing Part

The machine applies unique overturning bottle clamp, Made of Stainless Steel 304 or 316hygienic and durable. Which grips bottle at neck position, avoiding bottle mouth contamination
The high efficiency atomizing spray nozzle installed on bottle clamp is capable of cleaning any part of bottle inner wall, and saves rinsing water.

EcoPura 3l10l mineral water filling machine international trader for factory-3

EcoPura 3l10l mineral water filling machine international trader for factory-4

Ozonated Water Washing Part

The machine applies unique overturning bottle clamp, Made of Stainless Steel 304 or 316 hygienic and durable. Which grips bottle at neck position, avoiding bottle mouth contamination
The high efficiency atomizing spray nozzle installed on bottle clamp is capable of cleaning any part of bottle inner wall, and saves rinsing water.

Filling Part

Stainless Steel 304 or 316 Filling valves are designed and manufactured featuring high filling accuracy and high filling speed whilst contactless filling ensures high level of hygiene.Bottom-holding position the PET container beneath the filling valve. Once the container has been centred, the filling process starts: Thereby, the Filling valve is opened and the product flows into the bottle with infinitely variable speed. Once the required fill volume has been reached, the flow meter provides a signal to the filling valve. The valve is now closed and the filling process completed. Dripping of the filling valve is prevented by a sieve in the product discharge. Microbiological safety -Contact-free filling and optimized machine design High filling accuracy -Use of flow meters and infinitely variable flow speeds High availability -Top efficiency thanks to the combination with ECOPURA cap feed systems ECOPURA standard Machines are suitable for CIP

EcoPura 3l10l mineral water filling machine international trader for factory-5

EcoPura 3l10l mineral water filling machine international trader for factory-6

Capping Part

The capper is most precise part ensuring the machine to run credibility and product quality.The capping head applies the cap. The cap is pressed onto the bottle by means of spring pressure. At the same time it is screwed onto the thread of the bottle neck finish. As soon as the rotation is ended and the required tightening torque is applied to the cap, a hysteresis clutch ends the capping process. All main parts made of stainless steel AISI304 Pick station with adjustable height Torque and spring force of the capping head are adjustable Flushable cap retainer Motorised height adjustment of the capper top part with bottle selection feature

Caps online Sterilization

ECOPURA dedicated in every process details to control the hygiene such as for the caps sterilizing to ensure the maximum hygiene for your all kinds beverages. Caps online sterilizer made of stainless steel 316L with built in spraying device for high pressure Ozonated pure water sterilizing

EcoPura 3l10l mineral water filling machine international trader for factory-7

Company Features
1. Shenzhen EcoPura Water Equipment Co.,Ltd has done an excellent job in mineral water filling machine and solutions. Our R&D team with years of experience is engaged in the development of new innovative products. They are the core strength of our company, which enables us to constantly provide innovative products for our customers.
2. We have established a stable and strong customer base. Customers are mainly from the USA, Australia, Mexico, and Germany. We have won long-term cooperation with trust from our customers by keeping providing quality products with good services.
3. We have a team of highly-skilled engineers. They implement lean manufacturing process and techniques to serve our customers. They can control unnecessary costs and eliminate waste while increasing operational efficiency. The motto of our company is diligence, intelligence, determination, and perseverance. We continue to uphold this motto as the basis of our management ideology.
