unbeatable price liquid filler 3l10l overseas trader for factory

Company Advantages
1. In the production of EcoPura fill line , our professional and dedicated team is ready to develop, test and finalize the sophisticated product with an optimum ratio of actives and efficiency that can meet the standards in the beauty makeup industry. The product is widely used for commercial applications
2. Shenzhen EcoPura Water Equipment Co.,Ltd has been committed to the exploration and development of liquid filler . The product is hygiene with no bacteria or mold built up
3. There is a wide range of usages for our liquid filler , such as fill line . Made of stainless steel materials, the product has a smooth surface to resist dust and dirt
4. The high quality and good usability give the product an edge to compete in the global market. The product has a reliable electrical system, without any short circuit, or electric leakage occurring
5. It has outstanding performance and irreplaceable charm. Its parts are all made of CNC machines, which features high accuracy

Product Detail

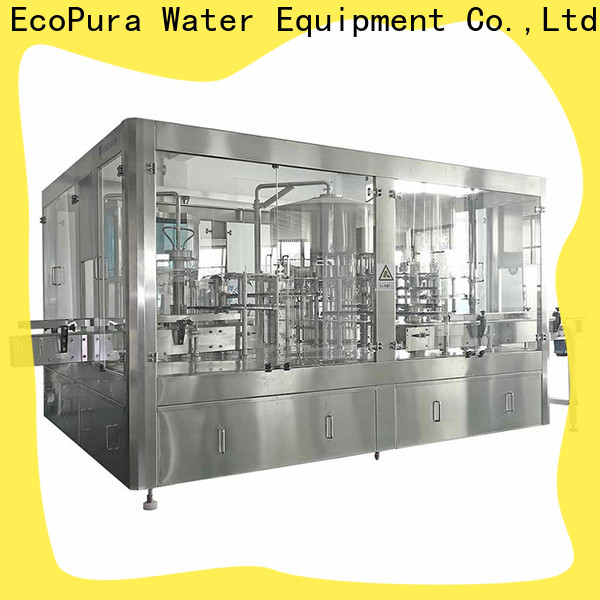

ECOPURA 3-in-1 PET 3L-10L HSG-series monobloc equipped with overflow filler nozzles designated for filling non-carbonated beverages such as pure or mineral, still water and other liquids etc

EcoPura 3l10l liquid filler overseas trader for factory-1

Product Parameter

Model	Bottle Spec	Capacity Cal@5L	Power	PLC & HMI
HSG10-10-5	3L-10L	1200-1500bph	2.2kw	SIEMENS
HSG12-12-5		1500-2000bph	3.0kw
HSG14-14-5		2000-2500bph	4.0kw
HSG16-16-5		2500-3000bph	5.5kw
EcoPura’s Filling machines are include but not-limited to above list,more info pls contact us.

EcoPura 3l10l liquid filler overseas trader for factory-2

High quality & Strict Hygiene

Production of top-quality beverages requires conditions of strict hygiene, All parts that comes into contact with the beverage are manufactured in Stainless steel 304 or 316
Contactless filling
SIEMENS PLC & Touch Screen control with Integrated and separate electro-pneumatic components

Washing Part

The machine applies unique overturning bottle clamp, Made of Stainless Steel 304 or 316hygienic and durable. Which grips bottle at neck position, avoiding bottle mouth contamination
The high efficiency atomizing spray nozzle installed on bottle clamp is capable of cleaning any part of bottle inner wall, and saves rinsing water.

EcoPura 3l10l liquid filler overseas trader for factory-3

EcoPura 3l10l liquid filler overseas trader for factory-4

Filling Part

Stainless Steel 304 or 316 Filling valves are designed and manufactured featuring high filling accuracy and high filling speed whilst contactless filling ensures high level of hygiene.
Bottom-holding position the PET container beneath the filling valve. Once the container has been centred, the filling process starts: Thereby, the Filling valve is opened and the product flows into the bottle with infinitely variable speed. Once the required fill volume has been reached, the flow meter provides a signal to the filling valve. The valve is now closed and the filling process completed. Dripping of the filling valve is prevented by a sieve in the product discharge.
Microbiological safety -Contact-free filling and optimized machine design
High filling accuracy -Use of flow meters and infinitely variable flow speeds
High availability -Top efficiency thanks to the combination with ECOPURA cap feed systems
ECOPURA standard Machines are suitable for CIP

Capping Part

The capper is most precise part ensuring the machine to run credibility and product quality.The capping head applies the cap. The cap is pressed onto the bottle by means of spring pressure. At the same time it is screwed onto the thread of the bottle neck finish. As soon as the rotation is ended and the required tightening torque is applied to the cap, a hysteresis clutchends the capping process. All main parts made of stainless steel AISI304 . Pick station with adjustable height Torque and spring force of the capping head are adjustable . Flushable cap retainer . Motorised height adjustment of the capper top part with bottle selection feature

EcoPura 3l10l liquid filler overseas trader for factory-5

EcoPura 3l10l liquid filler overseas trader for factory-6

Caps online Sterilization

ECOPURA dedicated in every process details to control the hygiene such as for the caps sterilizing to ensure the maximum hygiene for your all kinds beverages. Caps online sterilizer made of stainless steel 316L with built in spraying device for high pressure Ozonated pure water sterilizing
