factory directly supply wine filling machine 3in1 wholesale for market

Product Detail

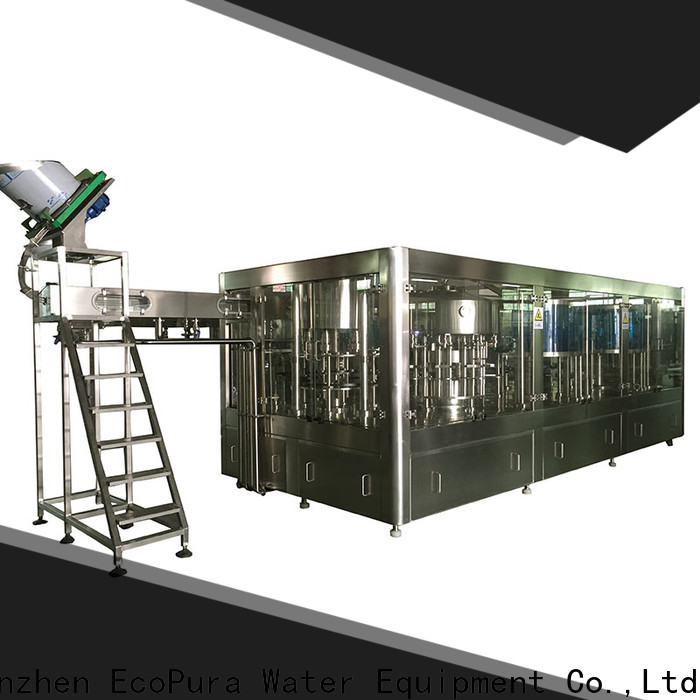

ECOPURA 3-in-1 Glass 0.3L-1.5L HSG-G series monobloc equipped with overflow filler nozzles designated for filling wine or Sparking wine

EcoPura 3in1 wine filling machine wholesale for market-1

Product Specification

Model	Bottle Spec	Capacity Cal@500ML	Power	PLC & HMI
HSG8-8-3G	0.33L-1.5L Height:150-330mm Dia: 50-115mm	5000-3000bph	1.5kw	SIEMENS
HSG16-12-6G		3000-4500bph	1.8kw
HSG24-16-6G		5000-6000bph	2.2kw
HSG24-18-8G		7000-8000bph	2.2kw
HSG24-24-8G		10000-12000bph	3.0kw
HSG32-32-12G		15000-18000bph	5.5kw
HSG38-38-14G		18000-20000bph	7.5kw
EcoPura’s Filling machines are include but not-limited to above list,more info pls contact us.

EcoPura 3in1 wine filling machine wholesale for market-2

High quality & Strict Hygiene

Production of top-quality beverages requires conditions of strict hygiene, All parts that comes into contact with the beverage are manufactured in Stainless steel 304 or 316
Contactless filling
SIEMENS PLC & Touch Screen control with Integrated and separate electro-pneumatic components

Washing Part

The machine applies unique overturning bottle clamp, Made of Stainless Steel 304 or 316 hygienic and durable. Which grips bottle at neck position, avoiding bottle mouth contamination The high efficiency atomizing spray nozzle installed on bottle clamp is capable of cleaning any part of bottle inner wall, and saves rinsing water.

EcoPura 3in1 wine filling machine wholesale for market-3

EcoPura 3in1 wine filling machine wholesale for market-4

Filling Part

Stainless Steel 304 or 316 Filling valves are designed and manufactured featuring high filling accuracy and high filling speed whilst contactless filling ensures high level of hygiene. The lift cylinder presses the bottle on to the filling valve where it is pre-evacuated several times. With non-carbonated beverages, the filling valve opens due to a movement of the control cylinder. With carbonated beverages, the bottle is pressurised and the valve opens as soon as the bottle and the ring bowl have the same pressure. At both of the filling processes, the liquid runs through a spreader along the bottle wall. The valve closes as soon as the bottle is entirely filled. The correction channel opens and the excessive fill quantity is displaced from the bottle to the end of the vent tube. With carbonated beverages, a snifting phase is performed in order to reduce the pressure in the bottle head space. Non- carbonated beverages can be removed from the filling valve right after filling is completed.

Aluminum Roll-On Capping Part

After they have been sorted according to their positions in the sorter, the caps are fed to the capper via an open chute. A towing shoe positions the caps, which are then directly picked up by the bottle. If a cap is missing, a safety plunger prevents contact between the rollers and the bottle neck finish. Depending on the cap type, a “fixed” or a deep-drawing plunger is used for press-on and shaping. The thread is rolled out via moveable arms, and if necessary, the tamper-evident band is flanged. The lateral pressure can be easily readjusted with adjusting screws.

EcoPura 3in1 wine filling machine wholesale for market-5

EcoPura 3in1 wine filling machine wholesale for market-6

Caps online Sterilization

ECOPURA dedicated in every process details to control the hygiene such as for the caps sterilizing to ensure the maximum hygiene for your all kinds beverages. Caps online sterilizer made of stainless steel 316L with built in spraying device for high pressure Ozonated pure water sterilizing

c******b

Standard manufacturing: the production of EcoPura wine filling machine is based on the advanced technology developed by ourselves autonomously and the complete management system and standards. The modern industrial production at APTEK has increased safety, reliability, and rapid installation

n******v

The production of EcoPura wine filter machine adopts the principle of lean production method. APTEK has a wide range of metric circular connectors and cable assembly that fit almost all standards

n******w

Premium raw materials: the raw materials of EcoPura wine filling machine are well selected and strictly analyzed by our quality control member. They compare with the data through high-intensity testing experiments and then select the best materials. APTEK could provide customers with safe, reliable, and easy-installed connectors

u******g

EcoPura wine filling machine is an innovative design product developed by the concerted effort of a strong R&D team and professional design team. It is in response to the requirements of home and abroad customers. Easy Connection at Industrial Sites is the pursuit of APTEK

k******x

The appearance design of EcoPura wine filter machine is carried out by our designers who have the ultimate pursuit of performance and aesthetics to enable the product meets the market demands. Even small customized lots could be accepted by APTEK

y******a

Compared with the other similar wine filling machine, wine filling machine has a lot of superiorities, such as wine filling machine. APTEK manufactures connectors up to the IEC international standard
