automatic soft drink filling machine 3in1 trader for sale

Company Advantages
1. All production processes of EcoPura bottle filling machine manufacturers are operated at the highest possible standards. It has a robust design, supported by an aluminum plate
2. Because the product can greatly increase productivity, increases manufacturers' flexibility by letting them add and subtract contract workers. The product features excellent torque accuracy
3. This product has the required wear resistance. Its coating guarantees a certain degree of lubrication to eliminate excessive wear and avoid scratching, wear or sticking components. With a compact structure, the product can operate stably
4. The product is reliable in operation. It is able to perform the most powerful operations without excessive deflection of its support components. The product has been certified under UL and CE
5. It does not have a numerical control machine tool machining error. It will be checked for the parameters for several times to eliminate any chances of fabrication error. The product is energy-saving, consuming little energy

Product Detail

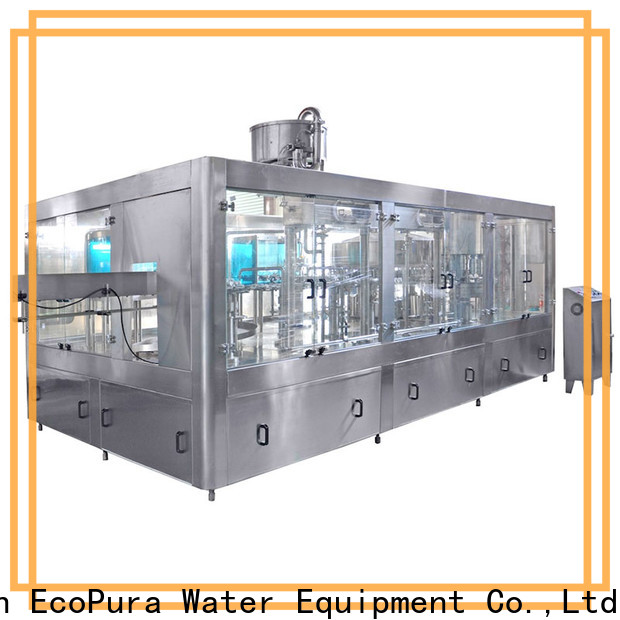

ECOPURA 4-in-1 PET 0.3L-1.5L DHSG-series monobloc equipped with isobaric filler nozzles designated for filling carbonated beverages such as Cola, beer, carbonated water and other liquids etc

EcoPura 3in1 soft drink filling machine trader for sale-1

Product Specification

Model	Bottle Spec	Capacity Cal@500ML	Power	PLC & HMI
DHSG16-16-12-6	0.33L-1.5L Height:150-330mm Dia: 50-115mm	3000-3500bph	1.8kw	SIEMENS
DHSG24-24-16-6		4000-5000bph	2.2kw
DHSG24-24-18-8		5000-6000bph	2.2kw
DHSG24-24-24-8		8000-9000bph	3.0kw
DHSG32-32-32-12		10000-12000bph	5.5kw
DHSG38-38-38-14		12000-15000bph	7.5kw
EcoPura’s Filling machines are include but not-limited to above list,more info pls contact us.

EcoPura 3in1 soft drink filling machine trader for sale-2

High quality & Strict Hygiene

Production of top-quality beverages requires conditions of strict hygiene, All parts that comes into contact with the beverage are manufactured in Stainless steel 304 or 316 Contactless filling SIEMENS PLC & Touch Screen control with Integrated and separate electro-pneumatic components

Chemical Washing Part

The machine applies unique overturning bottle clamp, Made of Stainless Steel 304 or 316 hygienic and durable. Which grips bottle at neck position, avoiding bottle mouth contamination The high efficiency atomizing spray nozzle installed on bottle clamp is capable of cleaning any part of bottle inner wall, and saves rinsing water.

EcoPura 3in1 soft drink filling machine trader for sale-3

EcoPura 3in1 soft drink filling machine trader for sale-4

Ozonated water Washing Part

Filling Part

Stainless Steel 304 or 316 Filling valves are designed and manufactured featuring high filling accuracy and high filling speed whilst contactless filling ensures high level of hygiene. The PET container is first pressed on by the PET lifting unit and pressurised afterwards. Once the same pressure is in the ring bowl and the PET container, the filling valve will be opened and the filling process starts. The liquid is gently fed via a swirl insert into the bottle. Two different filling speeds guarantee optimum flow behaviour. A flow meter monitors the fed liquid quantity. Once the exact filling volume has been reached, the flow meter provides a signal and the valve closes electro pneumatically Maximum flexibility − Filling of non-carbonated and carbonated products on one system Maximum filling accuracy − Precise determination of fill quantity via inductive flow meter Gentle product treatment during filling − Low-foam and low-turbulence filling vias wirl insert in the valve Hygiene and stable filling processes − Separate gas channels for pressurization and snifting ECOPURA filling machines in their standard version are suitable for CIP and beverage mixer

EcoPura 3in1 soft drink filling machine trader for sale-5

EcoPura 3in1 soft drink filling machine trader for sale-6

Capping Part

The capper is most precise part ensuring the machine to run credibility and product quality. The capping head applies the cap. The cap is pressed onto the bottle by means of spring pressure. At the same time it is screwed onto the thread of the bottle neck finish. As soon as the rotation is ended and the required tightening torque is applied to the cap, a hysteresis clutch ends the capping process. All main parts made of stainless steel AISI304 Pick station with adjustable height Torque and spring force of the capping head are adjustable Flushable cap retainer Motorised height adjustment of the capper top part with bottle selection feature

Caps online Sterilization

ECOPURA dedicated in every process details to control the hygiene such as for the caps sterilizing to ensure the maximum hygiene for your all kinds beverages. Caps online sterilizer made of stainless steel 316L with built in spraying device for high pressure Ozonated pure water sterilizing

EcoPura 3in1 soft drink filling machine trader for sale-7

Company Features
1. The quality of soft drink filling machine is supported by bottle filling machine manufacturers technology.
2. We are not a company that only focuses on self-development. Besides business development, we try our best to donate money, products, or even services to our society.

q******w

EcoPura bottle filling machine manufacturers is constructed from superior materials with modern technology.

x******s

EcoPura soft drink filling machine is precisely manufactured in accordance with industry set norms.

z******m

The manufacturing process of EcoPura soft drink filling machine is well-controlled by a keen production team.

x******b

soft drink filling machine is designed to be professional and of top performance.

w******n

The elements of fashion, style, and personality are added to the design of EcoPura soft drink filling machine.

b******e

soft drink filling machine have passed the strict quality inspection of the national authoritative center, and all indicators have reached the national standard, with excellent performance, high quality and guaranteed quality, so you can buy and use with confidence.
