hot sale liquid filler 3in1 producer for distribution

Company Advantages
1. Each liquid filler product from Shenzhen EcoPura Water Equipment Co.,Ltd is the most professional and specific. Its parts are all made of CNC machines, which features high accuracy
2. The efficiency of the worker will increase because he can work accurately and faster with the assistance of this product. The product can ensure a high filtration rate
3. The advantages of the liquid filler lie in water filter plant machine price . It has a robust design, supported by an aluminum plate
4. It is widely admitted that EcoPura's increasing fame contributes to water filter plant machine price . The product features a high degree of automation
5. liquid filler is integrated the functions of water filter plant machine price . Made of stainless steel materials, the product has a smooth surface to resist dust and dirt

Product Detail

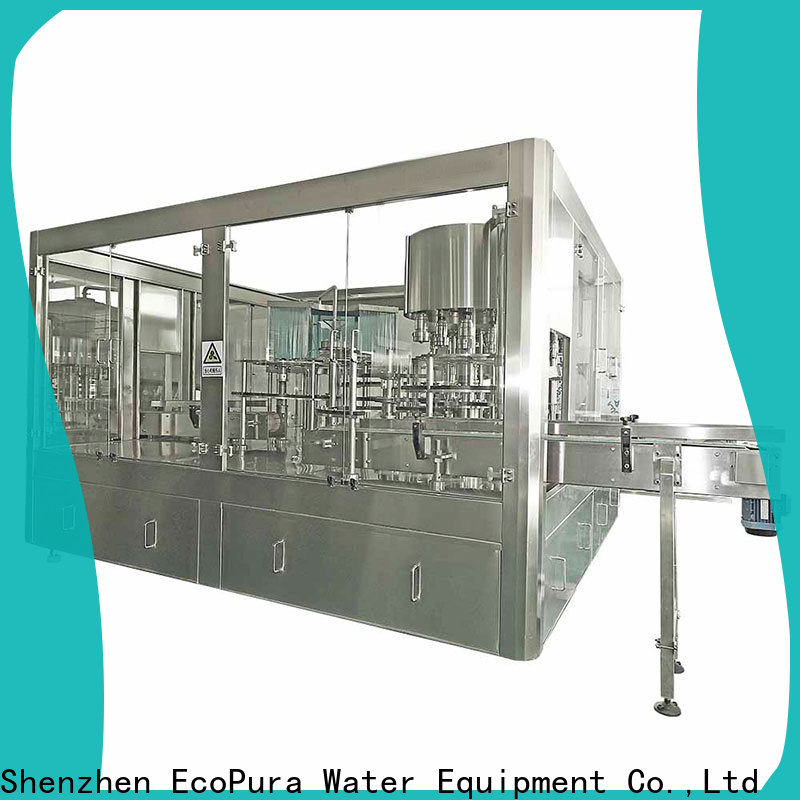

ECOPURA 4-in-1 PET 3L-10L HSG-series monobloc equipped with overflow filler nozzles designated for filling non-carbonated beverages such as pure or mineral, still water and other liquids etc

EcoPura 3in1 liquid filler producer for distribution-1

Product Parameter

Model	Bottle Spec	Capacity Cal@5L	Power	PLC & HMI
HSG10-10-5	3L-10L	1200-1500bph	2.2kw	SIEMENS
HSG12-12-5		1500-2000bph	3.0kw
HSG14-14-5		2000-2500bph	4.0kw
HSG16-16-5		2500-3000bph	5.5kw
EcoPura’s Filling machines are include but not-limited to above list,more info pls contact us.

Why 4-in-1 ?
Twin bottle rinsing station include chemical water rinsing and Ozonated water rinsing ensuring the performance with strict hygiene standard
EcoPura’s Filling machines are include but not-limited to above list,more info pls contact us.

EcoPura 3in1 liquid filler producer for distribution-2

High quality & Strict Hygiene

Production of top-quality beverages requires conditions of strict hygiene, All parts that comes into contact with the beverage are manufactured in Stainless steel 304 or 316
Contactless filling
SIEMENS PLC & Touch Screen control with Integrated and separate electro-pneumatic components

Chemical Washing Part

The machine applies unique overturning bottle clamp, Made of Stainless Steel 304 or 316hygienic and durable. Which grips bottle at neck position, avoiding bottle mouth contamination
The high efficiency atomizing spray nozzle installed on bottle clamp is capable of cleaning any part of bottle inner wall, and saves rinsing water.

EcoPura 3in1 liquid filler producer for distribution-3

EcoPura 3in1 liquid filler producer for distribution-4

Ozonated Water Washing Part

The machine applies unique overturning bottle clamp, Made of Stainless Steel 304 or 316 hygienic and durable. Which grips bottle at neck position, avoiding bottle mouth contamination
The high efficiency atomizing spray nozzle installed on bottle clamp is capable of cleaning any part of bottle inner wall, and saves rinsing water.

Filling Part

Stainless Steel 304 or 316 Filling valves are designed and manufactured featuring high filling accuracy and high filling speed whilst contactless filling ensures high level of hygiene.Bottom-holding position the PET container beneath the filling valve. Once the container has been centred, the filling process starts: Thereby, the Filling valve is opened and the product flows into the bottle with infinitely variable speed. Once the required fill volume has been reached, the flow meter provides a signal to the filling valve. The valve is now closed and the filling process completed. Dripping of the filling valve is prevented by a sieve in the product discharge. Microbiological safety -Contact-free filling and optimized machine design High filling accuracy -Use of flow meters and infinitely variable flow speeds High availability -Top efficiency thanks to the combination with ECOPURA cap feed systems ECOPURA standard Machines are suitable for CIP

EcoPura 3in1 liquid filler producer for distribution-5

EcoPura 3in1 liquid filler producer for distribution-6

Capping Part

The capper is most precise part ensuring the machine to run credibility and product quality.The capping head applies the cap. The cap is pressed onto the bottle by means of spring pressure. At the same time it is screwed onto the thread of the bottle neck finish. As soon as the rotation is ended and the required tightening torque is applied to the cap, a hysteresis clutch ends the capping process. All main parts made of stainless steel AISI304 Pick station with adjustable height Torque and spring force of the capping head are adjustable Flushable cap retainer Motorised height adjustment of the capper top part with bottle selection feature

Caps online Sterilization

ECOPURA dedicated in every process details to control the hygiene such as for the caps sterilizing to ensure the maximum hygiene for your all kinds beverages. Caps online sterilizer made of stainless steel 316L with built in spraying device for high pressure Ozonated pure water sterilizing

EcoPura 3in1 liquid filler producer for distribution-7

Company Features
1. With years of experience in developing and manufacturing of liquid filler , Shenzhen EcoPura Water Equipment Co.,Ltd stands out in today's market competition.
2. We will continue our research and development work on mineral water filling machine.
3. We hope to become a great leader in this industry. We have the vision and courage to imagine new products, and then pull together the talented people and resources to make them a reality.
