EcoPura 3in1 juice bottling machine looking for buyer for upgrade industries

EcoPura 3in1 juice bottling machine looking for buyer for upgrade industries
  • EcoPura 3in1 juice bottling machine looking for buyer for upgrade industries
  • EcoPura 3in1 juice bottling machine looking for buyer for upgrade industries
  • EcoPura 3in1 juice bottling machine looking for buyer for upgrade industries
  • EcoPura 3in1 juice bottling machine looking for buyer for upgrade industries
  • EcoPura 3in1 juice bottling machine looking for buyer for upgrade industries
  • EcoPura 3in1 juice bottling machine looking for buyer for upgrade industries

EcoPura 3in1 juice bottling machine looking for buyer for upgrade industries

Whatever in material or in design, juice bottle filling machine is impeccable. The product can ensure a high filtration rate
Inquire Online
Get the latest price
Quantity Needed:
Pieces
E-mail:

Product Detail

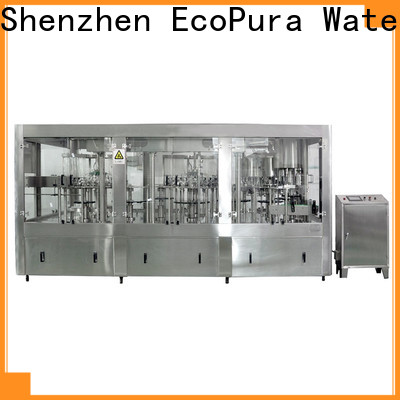

ECOPURA 3-in-1 PET 0.3L-1.5L RHSG-series Hot-fill monobloc equipped with electronic filler nozzles designated for filling hot beverages such as Juice ,tea,pulp beverages or those liquid mixed particles


EcoPura 3in1 juice bottling machine looking for buyer for upgrade industries-1

Product Specification

Model

Bottle Spec

Capacity Cal@500ML

Power

PLC & HMI

DHSG16-16-12-6

0.33L-1.5L
Height:150-330mm
Dia: 50-115mm

3000-3500bph

1.8kw

SIEMENS

DHSG24-24-16-6

4000-5000bph

2.2kw

DHSG24-24-18-8

5000-6000bph

2.2kw

DHSG24-24-8

8000-9000bph

3.0kw

DHSG32-32-32-12

10000-12000bph

5.5kw

DHSG38-38-38-14

12000-15000bph

7.5kw

EcoPura’s Filling machines are include but not-limited to above list,more info pls contact us.

EcoPura 3in1 juice bottling machine looking for buyer for upgrade industries-2

High quality & Strict Hygiene
Production of top-quality beverages requires conditions of strict hygiene, All parts that comes into contact with the beverage are manufactured in Stainless steel 304 or 316
Contactless filling
SIEMENS PLC & Touch Screen control with Integrated and separate electro-pneumatic components

Washing Part

The machine applies unique overturning bottle clamp, Made of Stainless Steel 304 or 316 hygienic and durable. Which grips bottle at neck position, avoiding bottle mouth contamination. The high efficiency atomizing spray nozzle installed on bottle clamp is capable of cleaning any part of bottle inner wall, and saves rinsing water.

EcoPura 3in1 juice bottling machine looking for buyer for upgrade industries-3

EcoPura 3in1 juice bottling machine looking for buyer for upgrade industries-4

Filling Part

Stainless Steel 304 or 316 Filling valves are designed and manufactured featuring high filling accuracy and high filling speed whilst contactless filling ensures high level of hygiene.Neck-handling grippers position the PET container beneath the filling valve. Once the container has been centred, the filling process starts: Thereby, the Filling valve is opened and the product flows into the bottle with infinitely variable speed. Once the required fill volume has been reached, the flow meter provides a signal to the filling valve. The valve is now closed and the filling process completed. Dripping of the filling valve is prevented by a sieve in the product discharge. Microbiological safety by filling in a multi-chamber mode and separate return gas channel Precise determination of fill quantity via inductive flow meter Recirculation channel for heat retention of the product Perfect flow characteristics through two filling speeds Cleaning in a closed system using automatically positioned CIP cups

Capping Part
The capper is most precise part ensuring the machine to run credibility and product quality.The capping head applies the cap. The cap is pressed onto the bottle by means of spring pressure. At the same time it is screwed onto the thread of the bottle neck finish. As soon as the rotation is ended and the required tightening torque is applied to the cap, a hysteresis clutch ends the capping process. All main parts made of stainless steel AISI304 Pick station with adjustable height Torque and spring force of the capping head are adjustable Flushable cap retainer Motorised height adjustment of the capper top part with bottle selection feature

EcoPura 3in1 juice bottling machine looking for buyer for upgrade industries-5

EcoPura 3in1 juice bottling machine looking for buyer for upgrade industries-6

Caps online Sterilization
ECOPURA dedicated in every process details to control the hygiene such as for the caps sterilizing to ensure the maximum hygiene for your all kinds beverages. Caps online sterilizer made of stainless steel 316L with built in spraying device for high pressure Ozonated pure water sterilizing

Our juice bottling machine have various styles and rich colors, following international changing market trend. The product is carefully designed with all NSF approved components
Shenzhen EcoPura Water Equipment Co.,Ltd’s design language stems from daily life. The product is widely used for commercial applications
juice bottle filling machine is designed with juice bottle filling machine and suitable for operations in various environments. The use of this product helps in increasing the production of drinks
We can customize colors and sizes for juice bottling machine. The product has been certified under UL and CE
juice bottle filling machine is one of the factors that Shenzhen EcoPura Water Equipment Co.,Ltd emphasizes during material selection. Adopting an advanced touch screen, it is easy to use
Its electrostatic sensitive device has high electrostatic sensitivity, meaning this device can withstand much electrostatic discharge voltage. The product features a high degree of automation
