ISO9001 certified beer bottle filling machine 3in1 purchase online for distribution

Product Detail

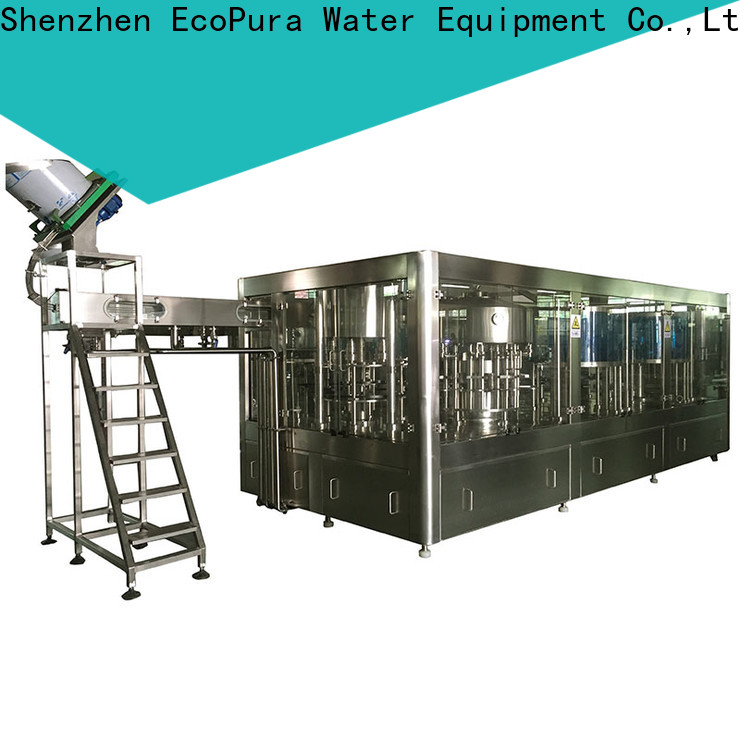

ECOPURA 3-in-1 Glass 0.3L-1.0L HSG-B series monobloc equipped with overflow filler nozzles designated for filling wine or Sparking wine

EcoPura 3in1 beer bottle filling machine purchase online for distribution-1

Product Specification

Model

Bottle Spec

Capacity Cal@500ML

Power

PLC & HMI

HSG8-8-3G

0.33L-1.5L
Height:150-330mm
Dia: 50-115mm

2000-3000bph

1.5kw

SIEMENS

HSG16-12-6G

3000-4500bph

1.8kw

HSG24-16-6G

5000-6000bph

2.2kw

HSG24-18-8G

7000-8000bph

2.2kw

HSG24-24-8G

10000-12000bph

3.0kw

HSG32-32-12G

15000-18000bph

5.5kw

HSG38-38-14G

18000-20000bph

7.5kw

EcoPura’s Filling machines are include but not-limited to above list,more info pls contact us.

EcoPura 3in1 beer bottle filling machine purchase online for distribution-2

High quality & Strict Hygiene

Production of top-quality beverages requires conditions of strict hygiene, All parts that comes into contact with the beverage are manufactured in Stainless steel 304 or 316
Contactless filling
SIEMENS PLC & Touch Screen control with Integrated and separate electro-pneumatic components

Washing Part

The machine applies unique overturning bottle clamp, Made of Stainless Steel 304 or 316. hygienic and durable. Which grips bottle at neck position, avoiding bottle mouth contamination. The high efficiency atomizing spray nozzle installed on bottle clamp is capable of cleaning any part of bottle inner wall, and saves rinsing water.

EcoPura 3in1 beer bottle filling machine purchase online for distribution-3

EcoPura 3in1 beer bottle filling machine purchase online for distribution-4

Filling Part

The machine applies unique overturning bottle clamp, Made of Stainless Steel 304 or 316 hygienic and durable. Which grips bottle at neck position, avoiding bottle mouth contamination
The high efficiency atomizing spray nozzle installed on bottle clamp is capable of cleaning any part of bottle inner wall, and saves rinsing water.

Crown Cappe

Once the crown has been fed from the crown chute into the transfer segment, a magnet is used for the further guidance of the crown. A pushing notch is then used to position the crown on the ejection plunger of the capping head. The crowning head is lowered until the crown in the crowning throat is placed on the bottle. The bottle then holds it in place. Afterwards only the crowning throat continues to be lowered. In the first phase, only the force of the guiding springs has any effect on the crown.

EcoPura 3in1 beer bottle filling machine purchase online for distribution-5

EcoPura 3in1 beer bottle filling machine purchase online for distribution-6

Caps online Sterilization

ECOPURA dedicated in every process details to control the hygiene such as for the caps sterilizing to ensure the maximum hygiene for your all kinds beverages. Caps online sterilizer made of stainless steel 316L with built in spraying device for high pressure Ozonated pure water sterilizing

y******j

EcoPura beer bottle filler is the outcome of the crystallization of human wisdom. It is developed adopting the knowledge of ergonomics with the combination of the features of different mobile phones. The product is easy to clean with no blind corners

o******n

EcoPura beer bottle filler is an inter infiltration result of various technologies. It is developed by the R&D team who adopts the mechanical technique, detection and sensing technology, automatic control technology, and servo drive technology. The product has a reliable electrical system, without any short circuit, or electric leakage occurring

g******u

EcoPura beer bottle filler is tested to guarantee its safety. After it is completed, it will be placed in the electromagnetic field where features strong current and high voltage to check its stability and reliability. The operation of this product is controlled by microcomputer

c******l

EcoPura beer bottle filling machine complies with energy efficiency standards. It is proven to be compatible in the USA, the EU, and China in terms of minimum energy performance standards (MEPS) and class-average standards. It can be configured in a straight line or in an L-shaped configuration

b******n

EcoPura beer bottle filling machine is of flexible design. It is completely customizable on everything from the shape and size to the wrap and messaging. Made of stainless steel materials, the product has a smooth surface to resist dust and dirt

y******i

The product has been audited and certified to be compliant with the strictest quality requirement. It can be configured in a straight line or in an L-shaped configuration
