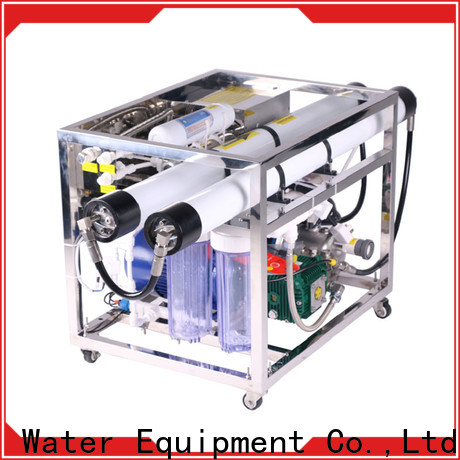

Commercial seawater reverse osmosis desalination system

ECOPUR manufactures a full line of sea water desalination systems designed for heavy-duty or continuous service in marine applications on and off shore.

EcoPura 2m3h water process equipment solution expert for water treatment-1

EcoPura 2m3h water process equipment solution expert for water treatment-2

EcoPura 2m3h water process equipment solution expert for water treatment-3

Compact & Durable

EcoPura Seawater Reverse Osmosis Systems feature a unique and innovative compact design that allows for easy installation in any size area. The high-grade corrosion resistant powder coated frame features a modular design that allows for the system to be divided into multiple assemblies for easier mounting. The commercial SWRO Series is also equipped with premium components which include duplex SS centrifugal-type high pressure pump for high performance and corrosion resistance, a programmable computer controller with many built-in features, 1000 psi fiberglass membrane housings for durability and special seawater membranes for high quality product water.

Commercial SWRO Series Capacity

Our commercial SWRO Series is available with capacities ranging from 380 GPD to 10,000 GPD and a maximum feed water TDS of 42,000 ppm. We offer standard SWRO Series units as well as customizable to fit you water application needs. Whether it's for your luxury yacht, cruise line, or for a five-star resort on the beach, EcoPura has the right desalination system for you project.

EcoPura 2m3h water process equipment solution expert for water treatment-4

EcoPura 2m3h water process equipment solution expert for water treatment-5

Customizable For Your Needs

When your needs demand continuous-duty, commercial-grade water making, the solution is very clear. The EcoPura SWRO Series is efficient and extremely reliable. These water makers systems deliver great volumes of potable fresh water with capacities ranging between 380 to 10,000 GPD. Ideal for commercial vessels, island homes, oil platforms, hotels, or large yachts. SWC commercial water makers will provide wherever clean, pure, fresh water is needed. Employing our advanced microprocessor control panel, SWC commercial reverse osmosis unit enables advanced, total control and user-friendly system customization.

Product Specification

Operation Specifications

Max. feed water temperature: 42°C

Equipment upgrade for TDS up to 50,000 ppm

H2S, turbidity and organics must be removed

Feed water TDS: 10,000-42,000 ppm

Operating pressure: 700 to 1,000 ps

pH tolerance range: 3-11

Feed water pressure: 40 to 80 psi

Antiscalant dosing is required

Max. Iron content: 0.05 ppm

Model	Capacity		Membranes
Model	GPD	M3/D	Size	Qty
SWRO380	380	1.4	2.5" x 40"	1
SWRO700	700	2.7	2.5" x 40"	2
SWRO1000	1000	3.8	2.5" x 40"	3
SWRO2000	2000	8	4" x 40"	2
SWRO3000	3000	11	4" x 40"	3
SWRO3800	3800	14	4" x 40"	4
SWRO4700	4700	18	4" x 40"	5
SWRO5600	5600	21	4" x 40"	6
SWRO6000	6000	23	4" x 40"	7
SWRO7600	7600	29	4" x 40"	8
SWRO10000	10000	38	4" x 40"	10

Operation Specifications

Available Options

Powder coated steel frame

Heavy duty 5 micron cartridge prefilter

Sea water resistant SS pump

Microprocessor/PLC based control panel & VFD

Glycerin-filled 316 SS prefilter pressure gauges

Product & reject flow meters

TFC spiral wound membranes

FRP membrane housings

380V/3Ph/50Hz power supply

Low & high pressure switches

Permeate TDS monitor

Stainless steel high pressure piping

Stainless steel throttling valve for reject stream

Automatic feed shut off valve

Energy recovery on 64K GPD and larger

Booster pump

380-415V/3Ph/50Hz power supply

Product tank level switch

pH controller with sensor

ORP controller with sensor

Hour meter

Cleaning skid

50 micron bag filter for open intake

Carbon prefilter

Multimedia prefilter

UV sterilizer

Custom designed units

Export crating

Chemical dosing units

The ideal applications for an Industrial Sea Water RO system include

Oil Tankers

Island-Based Businesses

Villages & Cities

Cargo Ships

Coastal Developments

Hotels & Resorts

Seaside Work Sites

Work Boats

Fish Processing Plants

Seaside Villas
