EcoPura 25m3h best water treatment exporter for water purification

EcoPura 25m3h best water treatment exporter for water purification
  • EcoPura 25m3h best water treatment exporter for water purification
  • EcoPura 25m3h best water treatment exporter for water purification
  • EcoPura 25m3h best water treatment exporter for water purification

EcoPura 25m3h best water treatment exporter for water purification

EcoPura water filter machine is carried out by our professional designers who keep up with customers' requirements relating to the uniqueness of visual appearance and the care of perfectly finished elements. The product is energy-saving, consuming little energy
Inquire Online
Get the latest price
Quantity Needed:
Pieces
E-mail:
Company Advantages
1. EcoPura water filter machine is carried out by our professional designers who keep up with customers' requirements relating to the uniqueness of visual appearance and the care of perfectly finished elements. The product is energy-saving, consuming little energy
2. Shenzhen EcoPura Water Equipment Co.,Ltd's production capacity can meet the market's ravenous demand for best water treatment . The product is carefully designed with all NSF approved components
3. This product has a best-suited shape. Its dimensions are calculated based on the loads on its elements and strength of the material. The dimension of this product can be customized according to needs
4. This product has the required safety. We have assessed and eliminate potential hazards by using the principles detailed in EN ISO 12100:2010. With a compact structure, the product can operate stably
5. This product has great strength. The materials used for has the strength to resist externally applied loads without breaking or yielding. The product has the advantage of low failure rate
Product Detail
Seawater Reverse Osmosis Systems SWRO

From water-makers to industrial sized Seawater Purification, we offer a full range of systems. Our units are manufactured to eliminate a large amount of salts and other minerals from seawater using RO. Our equipment does the filtration by employing a high-pressure pump to salty water forcing it through semi-porous membranes denying salts and other organics from flowing through. The membranes are only tasked to remove dissolved solids while dividing the feed water into purified water and rejected concentrated salts.  The salts and other organics are thrown into the brine stream then flushed into a drain. At the end we have purified water that has 99% less dissolved salts. These sea water RO systems have the power to purify extremely high TDS water. Seawater RO systems are usable anywhere from yachts to municipalities.

EcoPura 25m3h best water treatment exporter for water purification-1

EcoPura 25m3h best water treatment exporter for water purification-2

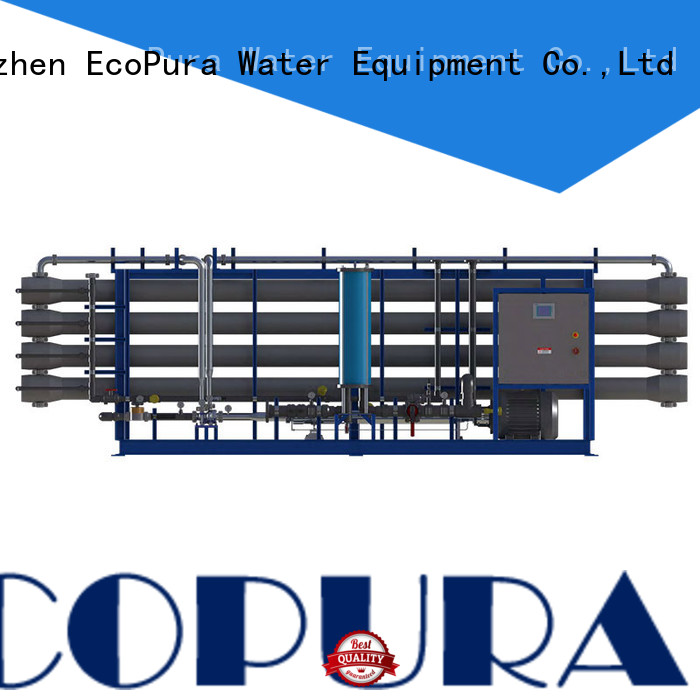

Industrial Seawater Reverse Osmosis desalination system
For continuous or heavy-duty service in marine applications on and off shore, ECOPURA manufactures a full line of designed seawater desalination systems

Seawater Reverse Osmosis

Seawater Reverse Osmosis (SWRO) is a reverse osmosis desalination membrane
process with typical single pass SWRO system consists of the following components:
Intake: well or open water
Pre-treatment: Filtration and chemical dosing
High-pressure pump: to achieve the needed pressure
Membrane assembly: to perform the desalination process
pH adjustment: to adjust the alkalinity or acid level
Disinfection: to prevent any bacterial or organic growth

EcoPura 25m3h best water treatment exporter for water purification-3

EcoPura 25m3h best water treatment exporter for water purification-4

Customizable RO System Capacity

Our Industrial SWRO Series is available with capacities ranging from 8,000 GPD to 660,000 GPD and a maximum feed water TDS of 45,000 ppm. We can provide standard SWRO Series units as well as customizable to fit you water application needs. ECOPURA Sea Water Reverse Osmosis Systems are capable of removing salts as well as other impurities such as bacteria, sugars, proteins, dyes and constituents that have a molecular weight greater than 150-250 Dalton. ECOPURA supplies a full line of standard and customizable Sea Water Reverse Osmosis systems, all of which are engineered using advanced 3D computer modeling and process design software for accurate and customized solutions.

Product Specification

Operation Specifications

Max. feed water temperature: 42°C

Equipment upgrade for TDS up to 50,000 ppm

H2S, turbidity and organics must be removed

Feed water TDS: 10,000-42,000 ppm

Operating pressure: 700 to 1,000 ps

pH tolerance range: 3-11

Feed water pressure: 40 to 80 psi

Antiscalant dosing is required

Max. Iron content: 0.05 ppm

Model

Capacity

Qty of 8040 membranes

GPD

M3/D

2

SWRO8000

8000

30

3

SWRO12000

12000

45
4

SWRO16000

16000

60
6

SWRO24000

24000

90
8

SWRO32000

32000

120
12

SWRO48000

48000

182
16

SWRO64000

64000

242
18

SWRO72000

72000

273
24

SWRO96000

96000

363
28

SWRO112000

112000

424
34

SWRO136000

136000

515
42

SWRO168000

168000

636
49

Operation Specifications

Available Options

Powder coated steel frame

Heavy duty 5 micron cartridge prefilter

Sea water resistant SS pump

Microprocessor/PLC based control panel & VFD

Glycerin-filled 316 SS prefilter pressure gauges

Product & reject flow meters

TFC spiral wound membranes

FRP membrane housings

380V/3Ph/50Hz power supply

Low & high pressure switches

Permeate TDS monitor

Stainless steel high pressure piping

Stainless steel throttling valve for reject stream

Automatic feed shut off valve

Energy recovery on 64K GPD and larger

Booster pump

380-415V/3Ph/50Hz power supply

Product tank level switch

pH controller with sensor

ORP controller with sensor

Hour meter

Cleaning skid

50 micron bag filter for open intake

Carbon prefilter

Multimedia prefilter

UV sterilizer

Custom designed units

Export crating

Chemical dosing units


The ideal applications for an Industrial Sea Water RO system include

Oil Tankers

Island-Based Businesses

Villages & Cities

Cargo Ships

Coastal Developments

Hotels & Resorts

Seaside Work Sites

Work Boats

Fish Processing Plants

Seaside Villas



Company Features
1. With abundant know-how in manufacturing water filter machine , Shenzhen EcoPura Water Equipment Co.,Ltd stands out among thousands of manufacturers in China market.
2. Shenzhen EcoPura Water Equipment Co.,Ltd is equipped with strong research strength, having an R&D team dedicated to developing all types of new best water treatment .
3. Shenzhen EcoPura Water Equipment Co.,Ltd firmly believe there is no end on the road of pursuing excellence for water process equipment. Check now!
water process equipment Made of high-quality materials and precise components, combined with advanced manufacturing technology and craftsmanship, it is precisely cast, with high surface smoothness, good gloss, stable operation, reliable quality, both aesthetics and practicability. Ideal metallurgical machinery.
water process equipment It is refined by advanced manufacturing technology and craftsmanship, with thick texture, comfortable hand feeling, safe and reliable use.
best water treatment Made of high-quality materials and advanced manufacturing technology, it has the advantages of firm structure, stable operation, convenient use, durability, and convenient maintenance.
water process equipmentHigh-quality material selection, high quality, high strength, high ductility, good water resistance and other advantages.
water filter machine Exquisite material selection, excellent workmanship, beautiful appearance, high quality, and has the advantages of stable operation, simple operation, high degree of automation, high quality and durable.
Our best water treatment can work for non-stop 24 hours. It has a reliable and quiet brushless DC motor
