EcoPura 2000bph filling machine price factory for distribution

EcoPura 2000bph filling machine price factory for distribution
  • EcoPura 2000bph filling machine price factory for distribution
  • EcoPura 2000bph filling machine price factory for distribution
  • EcoPura 2000bph filling machine price factory for distribution
  • EcoPura 2000bph filling machine price factory for distribution
  • EcoPura 2000bph filling machine price factory for distribution
  • EcoPura 2000bph filling machine price factory for distribution
  • EcoPura 2000bph filling machine price factory for distribution
  • EcoPura 2000bph filling machine price factory for distribution

EcoPura 2000bph filling machine price factory for distribution

water plant machine price is strongly recommended for its filling machine price design.
Inquire Online
Get the latest price
Quantity Needed:
Pieces
E-mail:

Product Detail

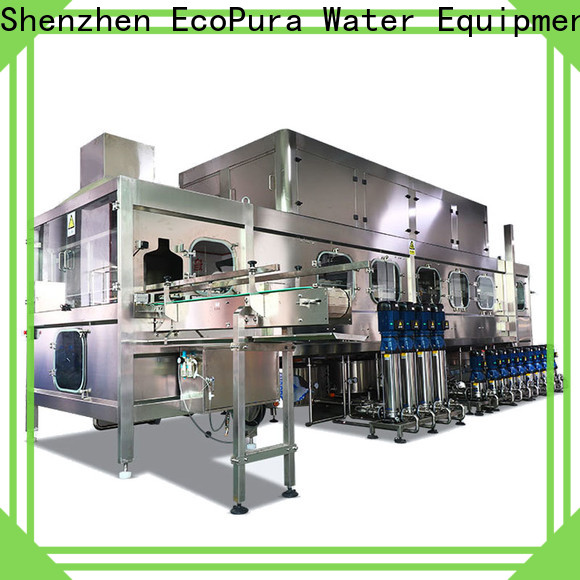

ECOPURA 5gallon bottle washing filling capping machine HSG2000 with capacity 2000bph
A real Hygiene filling solution for your recycling use 5Gallon bottled water business with SIEMENS PLC Control and touch Screen control. All parts that come to contact with water are manufactured in Stainless steel 304 or 316L ,Equipped S.S304 Chemical tank for multistage rinsing

EcoPura 2000bph filling machine price factory for distribution-1

EcoPura 2000bph filling machine price factory for distribution-2
EcoPura 2000bph filling machine price factory for distribution-3
EcoPura 2000bph filling machine price factory for distribution-4
EcoPura 2000bph filling machine price factory for distribution-5

EcoPura 2000bph filling machine price factory for distribution-6

Bottles Sterilizing & Washing
Exclude the brusher pre-washing process for cleaning bottles inside & outside part, the pre-washed 5gallon bottles feed into the 3-in-1 washing filling capping unit which Designed Multistage high-pressure inner washing Process include Hot Alkaline washing, disinfection water washing, Dripping ,Ozonated pure water cleaning for ensuring the recycled bottles 100% clean & health, the washing system is controlled by pumping though cleaning tank and the ejecting nozzles on the bottle carrier to spraying the inner wall of the bottles by high pressure water, after finishing the washing process, the bottles will discharge though reverse turn-over mechanize and transported to the filling Part for full filling as designated volume and finally capping, discharge out the 3-in-1 by conveyor to next step
Caps Loading & washing

The Caps elevator doses the caps into the caps unscrambler then delivery through caps chute to enter into caps washing tunnel, finished clean caps feed following the chute transferring to capping position on capping machine

Design for online 5Gallon caps cleaning & Sterilizing by multistage washing process -detergent washing & purified water washing


EcoPura 2000bph filling machine price factory for distribution-7

EcoPura 2000bph filling machine price factory for distribution-8

Rotary Filling & Capping

Clean bottles are discharged out of the rinse by conveyor to feed the filler. After entering the filler, bottles are retained by bottom supporting plates, which are actuated by bottle supporting mechanism to raise them to engage with filling valves. Filling valves are opened by bottle presence signals. After finishing filling, valves are closed by valve closing mechanism to further stop venting to complete the filling process.

Product Solution

A turnkey solution for 5Gallon bottling line

  • ♦ 1.Automatic bottle decapper

  •  2.Automatic inside & outside brusher washer

  •  3.Automatic bottle feeder -Multistage high-pressure washing unit

  •  4.Linear or Rotary filler & capper

  • ♦ 5.Automatic Capsules Labeling shrinking

  •  6.Light Inspection

  •  7.Thin film (bag) Packing

  • ♦ 8.Palletizer


All the design of water plant machine price are designed by our professional and experienced team.
filling machine price makes filling machine price very competitive in the market.
Our design for water plant machine price are performed by our professional design team who are specialized in designing for a long time.
From material selecting to material processing, Shenzhen EcoPura Water Equipment Co.,Ltd finish independently.
With carefully selected materials, our water plant machine price have received much fame until now.
Shenzhen EcoPura Water Equipment Co.,Ltd Using cost-effective raw materials, highly automated production lines and equipment to manufacture filling machine price can maximize the reduction of material processing loss rate, increase production and production capacity, and under the premise of unchanged product quality and performance , Maximize the reduction of product cost and improve the overall cost performance of the product.
