most popular mineral water bottle filling machine 100450bph more buying choices for distribution

Company Advantages
1. Shenzhen EcoPura Water Equipment Co.,Ltd provides various custom-made mineral water bottle filling machine for your selection. The product features excellent purification technology
2. Developing EcoPura needs the support of professional customer service. The product is equipped with air conveyor and frequency control
3. The product is corrosion resistant. Its metal parts have been treated with surface paint to guard against oxidization and rust. Its parts are all made of CNC machines, which features high accuracy
4. The product is notable for its high energy efficiency. This product consumes little energy or power to finish its task. The product is easy to clean with no blind corners

Product Detail

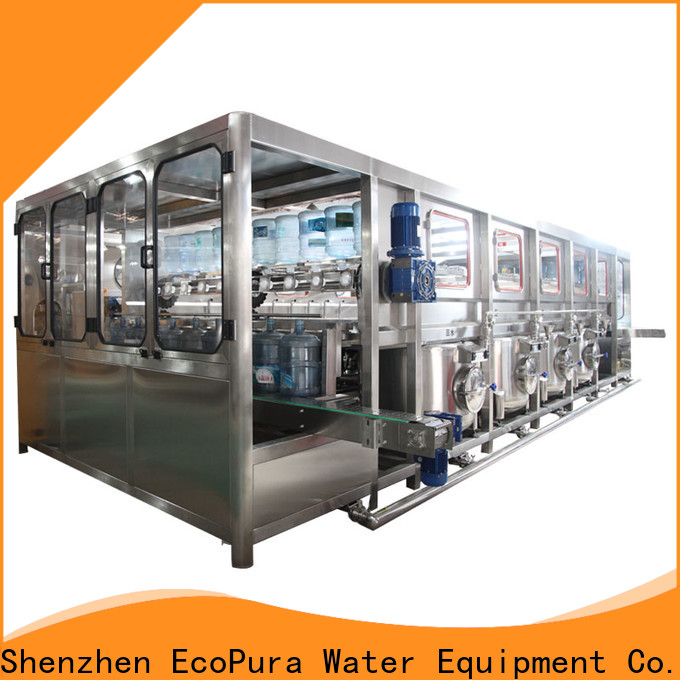

ECOPURA 5gallon bottle washing filling capping machine HSG600 with capacity 600bph.
A real Hygiene filling solution for your recycling use 5Gallon bottled water business with SIEMENS PLC Control and touch Screen control. All parts that come to contact with water are manufactured in Stainless steel 304 or 316L ,Equipped S.S304 Chemical tank for multistage rinsing

EcoPura 100450bph mineral water bottle filling machine more buying choices for distribution-1

EcoPura 100450bph mineral water bottle filling machine more buying choices for distribution-2

Bottles Sterilizing & Washing

Exclude the brusher pre-washing process for cleaning bottles inside & outside part, the pre-washed 5gallon bottles feed into the 3-in-1 washing filling capping unit which Designed Multistage high-pressure inner washing Process include Hot Alkaline washing, disinfection water washing, Dripping ,Ozonated pure water cleaning for ensuring the recycled bottles 100% clean & health, the washing system is controlled by pumping though cleaning tank and the ejecting nozzles on the bottle carrier to spraying the inner wall of the bottles by high pressure water, after finishing the washing process, the bottles will discharge though reverse turn-over mechanize and transported to the filling Part for full filling as designated volume and finally capping, discharge out the 3-in-1 by conveyor to next step

Caps Loading & washing

The Caps elevator doses the caps into the caps unscrambler then delivery through caps chute to enter into caps washing tunnel, finished clean caps feed following the chute transferring to capping position on capping machine .Design for online 5Gallon caps cleaning & Sterilizing by multistage washing process -detergent washing & purified water washing,

EcoPura 100450bph mineral water bottle filling machine more buying choices for distribution-3

EcoPura 100450bph mineral water bottle filling machine more buying choices for distribution-4

Rotary Filling & Capping

Clean bottles are discharged out of the rinse by conveyor to feed the filler. After entering the filler, bottles are retained by bottom supporting plates, which are actuated by bottle supporting mechanism to raise them to engage with filling valves. Filling valves are opened by bottle presence signals. After finishing filling, valves are closed by valve closing mechanism to further stop venting to complete the filling process.

Product Solution

A turnkey solution for 5Gallon bottling line

♦ 1.Automatic bottle decapper
♦ 2.Automatic inside & outside brusher washer
♦ 3.Automatic bottle feeder -Multistage high-pressure washing unit
♦ 4.Linear or Rotary filler & capper
♦ 5.Automatic Capsules Labeling shrinking
♦ 6.Light Inspection
♦ 7.Thin film (bag) Packing
♦ 8.Palletizer

Company Features
1. Having ranked top in this field, EcoPura strives to put more efforts into providing better mineral water bottle filling machine .
2. Our manufacturing and processing centers are strategically located. They are close to our customers and to growing regions, which will do a favor for our business.
3. Committed to the environmental sustainability of our operations, we emphasize the use of renewable resources and the conservation of water. We have reduced the water utilization of our factory in order to prevent excessive utilization of water sources.

q******e

The entire production process of EcoPura mineral water bottle filling machine is strictly controlled, from the selection of the finest fabrics, the cutting of the pattern to the safety inspection of the accessories.

r******n

In the production, EcoPura mineral water bottle filling machine will go through a series of tests. The dyeing fastness, dimensional stability, appearance after washing and yarn quality will be tested.

o******g

The entire manufacturing process of EcoPura water refilling machine is strictly controlled. It may be divided into several important processes: the provision of working drawings, the selection&machining of raw materials, veneering, staining, and spray polishing.

v******p

The quality of EcoPura water refilling machine is guaranteed. It has been tested in the laboratory, in terms of air-, water-, and structural- resistance, heat transfer, anti-condensation, sound transmission and operability.

q******o

EcoPura mineral water bottle filling machine is professionally tailored. It adopts several pieces of advanced and high-efficient production equipment for prototyping, cutting, dyeing, sewing, and performance testing.

h******s

This product is anti-pill, wrinkle-free, and provide long-lasting color, which is all due to the steps taken during the finishing process.
