About Reverse Osmosis System Introduction :

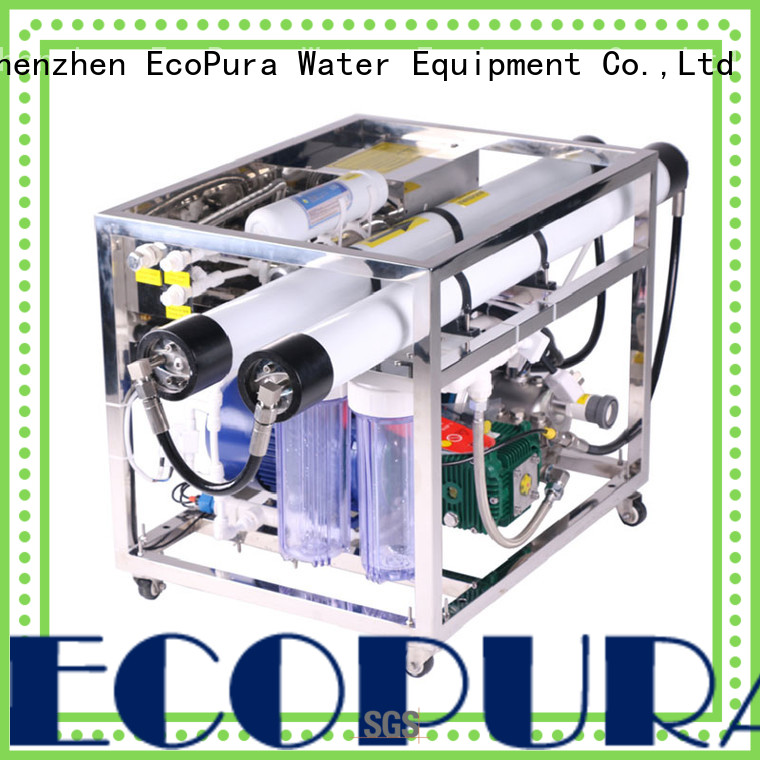

The reverse osmosis(RO) water treatment plant is an equipment to purify water with the action of pressure difference of semi permeable membrane. RO membranes can effectively remove majority of organics, harmful substances, bacteria, particulates etc. RO system is widely used in water treatment, purification for tap water, well water, underground water, borehole salty water, brackish water and seawater, pure water and ultra-pure water production, power stations, electronic industries, medicine manufactories, and medical treatment. It is a key equipment for pure water plant.

Features and Advantages
1.System can produce water continuously and high degree automation.
2.No need chemical to regenerate, easy operation and maintenance.
3.Core components of ro system are imported USA DOW/Vontron membranes.
4.Automatic switch on when low water level, and switch off when high water level
5.System flushes RO membranes automatically, reducing membranes polluted speed.
6.Water shortage protection for multi-stage pump
7.Product water conductivity meter can monitor water quality online continuously.
8.Low operation cost and long life span
9. There's RO controller, make whole RO system operating automatically.
10.Easily control and Maintained.
11. Auto flush and backwash the prefilters
12. Integrating water flow indicator, conductivity indicator, pressure indicator, control panel

Every part of the reverse osmosis water filter
Raw water tank →  Raw water booster pump→quartz sand filter→activated carbon filter→water softener (optional)→security filter→high pressure pump→RO system→UV light(optional)→pure water tank(or bottled water filling production line)

Function of reverse osmosis equipment

1, Raw water pump: provide power source for quartz sand and activated carbon filter, small volume, high efficiency and low noise.
2, Quartz sand filter: remove suspended solids, particulates, colloids and algae in raw water.
3, Activated carbon filter: remove the color, odor, organic matter, ammonia nitrogen and pressure nitrate in raw water.
4, Scale inhibitor dosing device: effectively prevent RO membrane fouling, and protect pipe fittings (reverse osmosis membrane) of equipment.
5, The medicine box and metering pump: the main function is to store the diluted scale inhibitor and automatic dosing.
6, Precision filter: remove suspended solids and particles above 5μm and protect the membrane system.
7, High pressure pump: power source for reverse osmosis system;
8, Reverse osmosis membrane: nano scale filter membrane, effectively remove heavy metal ions, microorganisms, bacteria and other impurities in water.
9, The protection of high and low pressure: the protection of the reverse osmosis system;
10, Liquid level switch: when the original water tank is short of water and the water tank is full of water, the equipment will stop automatically.
11, Conductivity meter: real-time online display of pure water conductivity.

The first level reverse osmosis process configuration explains:
The original water enters the original water tank, and the original water pump is pumped into the sand filter. The filler of the sand filter is quartz sand. It acts as the suspended matter, colloid, rust, large particle impurity and some sanitary substances (such as red worm) in the water. The carbon filter is processed by the sand filter. The filling of the carbon filter is the high quality and high quality fruit shell activated carbon.

Its main function is the organic matter in the water and the oxygen, odor, pesticide and the colloid which is not removed from the water in the water, and then into the security filter. The security filter is equipped with 5 PP filters of 750mm long and 5um, which can remove all the impurities with the pore size above 5um. After the processing of the above process, the RO can be installed. The pre treated water passes through the high pressure pump into the RO reverse osmosis system. The concentrated wastewater is discharged from the concentrated water flow meter and the output of pure water from the pure water flow meter into the water storage tank.
