best blow molding machine manufacturer 01l2l trade partner for an importer

Product Detail

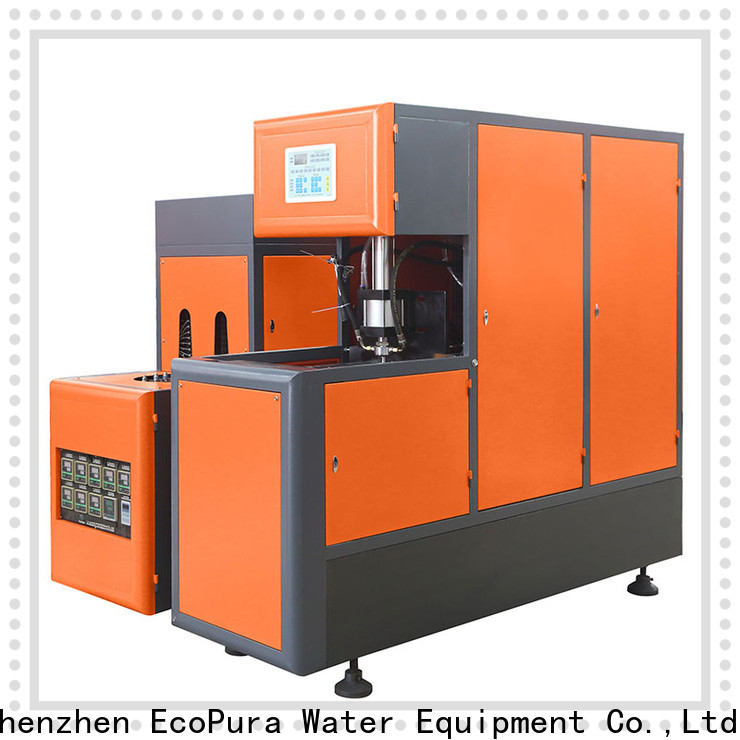

EPC-20L Bottle Blow Molding Machine for 3Gallon to 6Gallon PET bottle

best blow molding machine manufacturer 01l2l trade partner for an importer-1

Product Parameter

Model	EPC-20L
Mold Cavities	1
Speed	100bph
Bottle Size -Max	20L
Bottle Height	＜600 mm
Bottle Neck	＜200 mm
Bottle Body Diameter	＜400 mm
Working Pressure	1.0kg/cm2
Low Pressure Air Consumption	560L/min
Blowing Air Pressure	12-28kg/cm2
High Pressure Air Consumption	650L/min
Installation Power	70kw
Practical Power	15-40kw
Machine Size	L2.4mW0.7mH1.65m
Weight	1300kgs

Product Specification

♦ Adopting double crank to adjust mould, heavy locking mould, stable and fast, Adopt infrared oven to heat the perform, the perform rotated and heated equally.
♦ The air system has been divided into two parts: Pneumatic action part and bottle blow part to meet the different requirements for the action and blow. It can provide sufficient and steady high pressure for blowing large irregular shaped bottles.
♦ The machine is also equipped with muffler and oiling system to lubricate the mechanical part of the machine.
♦ The machine can be operated in the step-by-step mode and the semi- auto mode.
♦ The machine is small with low investment, easy and safe to operate by one person.

k******x

Standard manufacturing: the production of EcoPura blow molding machine manufacturer is based on the advanced technology developed by ourselves autonomously and the complete management system and standards. Fast delivery is a promise of APTEK: only 2 weeks are needed

z******k

The production of EcoPura blow moulding adopts the principle of lean production method. APTEK supplies different custom services for different applications such as food & beverage business

m******g

Premium raw materials: the raw materials of EcoPura blow molding machine manufacturer are well selected and strictly analyzed by our quality control member. They compare with the data through high-intensity testing experiments and then select the best materials. Efficient response to all instructions from customers is a mission of APTEK

u******f

EcoPura blow molding machine manufacturer is an innovative design product developed by the concerted effort of a strong R&D team and professional design team. It is in response to the requirements of home and abroad customers. At APTEK, there are highly efficient production lines for cable cutting, soldering, crimping, etc

v******d

The appearance design of EcoPura blow moulding is carried out by our designers who have the ultimate pursuit of performance and aesthetics to enable the product meets the market demands. Efficient response to all instructions from customers is a mission of APTEK

x******l

Compared with the other similar blow moulding, blow molding machine manufacturer has a lot of superiorities, such as blow moulding. Founded in 2009, APTEK is a professional manufacturer of industrial waterproof connectors
