Product Detail

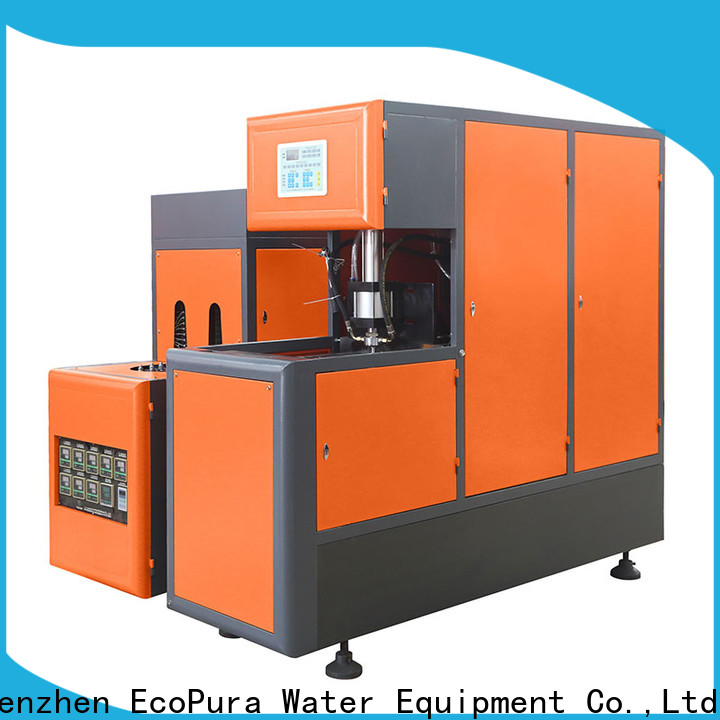

EPC-20L Bottle Blow Molding Machine for 3Gallon to 6Gallon PET bottle

5 star reviews blow moulding process bottle awarded supplier for commercial industry-1

Product Parameter

Model	EPC-20L
Mold Cavities	1
Speed	100bph
Bottle Size -Max	20L
Bottle Height	＜600 mm
Bottle Neck	＜200 mm
Bottle Body Diameter	＜400 mm
Working Pressure	1.0kg/cm2
Low Pressure Air Consumption	560L/min
Blowing Air Pressure	12-28kg/cm2
High Pressure Air Consumption	650L/min
Installation Power	70kw
Practical Power	15-40kw
Machine Size	L2.4mW0.7mH1.65m
Weight	1300kgs

Product Specification

♦ Adopting double crank to adjust mould, heavy locking mould, stable and fast, Adopt infrared oven to heat the perform, the perform rotated and heated equally.
♦ The air system has been divided into two parts: Pneumatic action part and bottle blow part to meet the different requirements for the action and blow. It can provide sufficient and steady high pressure for blowing large irregular shaped bottles.
♦ The machine is also equipped with muffler and oiling system to lubricate the mechanical part of the machine.
♦ The machine can be operated in the step-by-step mode and the semi- auto mode.
♦ The machine is small with low investment, easy and safe to operate by one person.

q******u

EcoPura plastic bottle blowing machine has to go through an entire production process. From concept development, through detailed mechanical design&control systems design, manufacture, and final commissioning, each process is well conducted. The operation of this product is controlled by microcomputer

k******x

The design of EcoPura blow moulding process is the integrated knowledge of physics and electrochemistry. It is created using the knowledge of condensed matter physics, plasma physics, and activity coefficient of the electrolyte solution, ion strength, etc. The product is widely used for water production

o******m

EcoPura plastic bottle blowing machine is developed under the guidance of water treatment technicians and water management professionals who provides comprehensive advice on the pool cleaning solution. The product is able to provide a great purifying effect

a******q

EcoPura blow moulding process has been tested in all aspects. It has been detected in terms of insulation resistance, current leakage, and current load. The product is able to provide a great purifying effect

t******y

In creating a design for EcoPura blow moulding process, one of the components that interact is the element of design. Its element and principles of design are flexible and could be interpreted within the context of current fashion. The product can ensure a high filtration rate

o******c

The scope of usage of blow moulding process have been enlarged gradually due to its blow moulding process properties. The operation of this product is controlled by microcomputer
