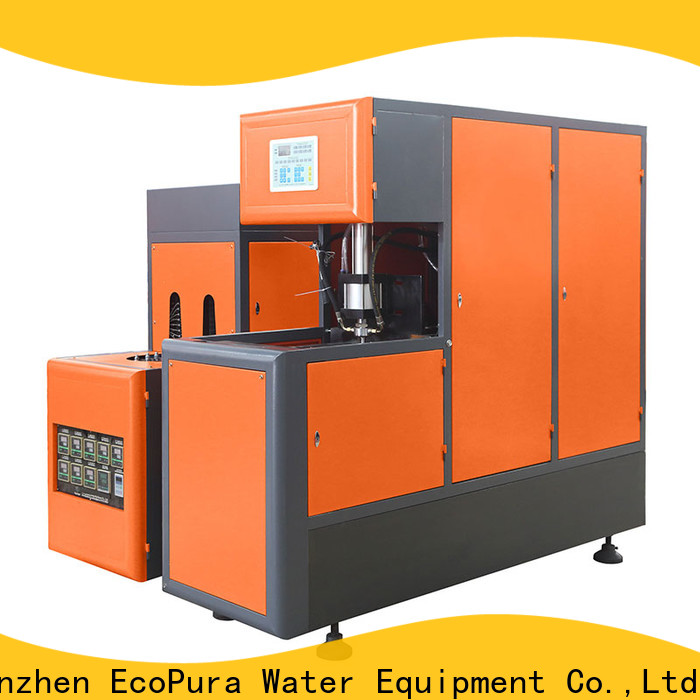

EPC-20L Bottle Blow Molding Machine for 3Gallon to 6Gallon PET bottle

5 star reviews blow molding machine manufacturer 4el trade partner for b2b-1

Product Parameter

Model	EPC-20L
Mold Cavities	1
Speed	100bph
Bottle Size -Max	20L
Bottle Height	＜600 mm
Bottle Neck	＜200 mm
Bottle Body Diameter	＜400 mm
Working Pressure	1.0kg/cm2
Low Pressure Air Consumption	560L/min
Blowing Air Pressure	12-28kg/cm2
High Pressure Air Consumption	650L/min
Installation Power	70kw
Practical Power	15-40kw
Machine Size	L2.4mW0.7mH1.65m
Weight	1300kgs

Product Specification

♦ Adopting double crank to adjust mould, heavy locking mould, stable and fast, Adopt infrared oven to heat the perform, the perform rotated and heated equally.
♦ The air system has been divided into two parts: Pneumatic action part and bottle blow part to meet the different requirements for the action and blow. It can provide sufficient and steady high pressure for blowing large irregular shaped bottles.
♦ The machine is also equipped with muffler and oiling system to lubricate the mechanical part of the machine.
♦ The machine can be operated in the step-by-step mode and the semi- auto mode.
♦ The machine is small with low investment, easy and safe to operate by one person.

c******d

EcoPura blow molding machine manufacturer is carried out by adopting the packaging and printing method which is flexible in its use of color and has the capacity to print on a vast array of materials.

n******c

Before production, EcoPura blow molding machine manufacturer is designed based on the wishes of customers. For example, its color, fronts, and shapes all meet the requirements of customers.

y******y

The materials of EcoPura blow moulding are supplied based on the commitment to the environment - a family of eco-friendly materials designed to manufacture the sustainable product.

j******z

The design process of EcoPura blow molding machine manufacturer is greatly enhanced. Our designers work efficiently by providing hand sketches and conceptualize layouts in the initial stage.

i******p

EcoPura blow moulding is superior in raw materials: Its materials are environmentally friendly, doing no harm to the environment. They are strictly selected complying with the highest packaging standard.

v******y

blow molding machine manufacturer is made of high-quality materials and exquisite processing technology. It is excellent in workmanship and high in quality, and all indicators meet the national quality standards. It is safe and reliable to use, and you can purchase with confidence.
